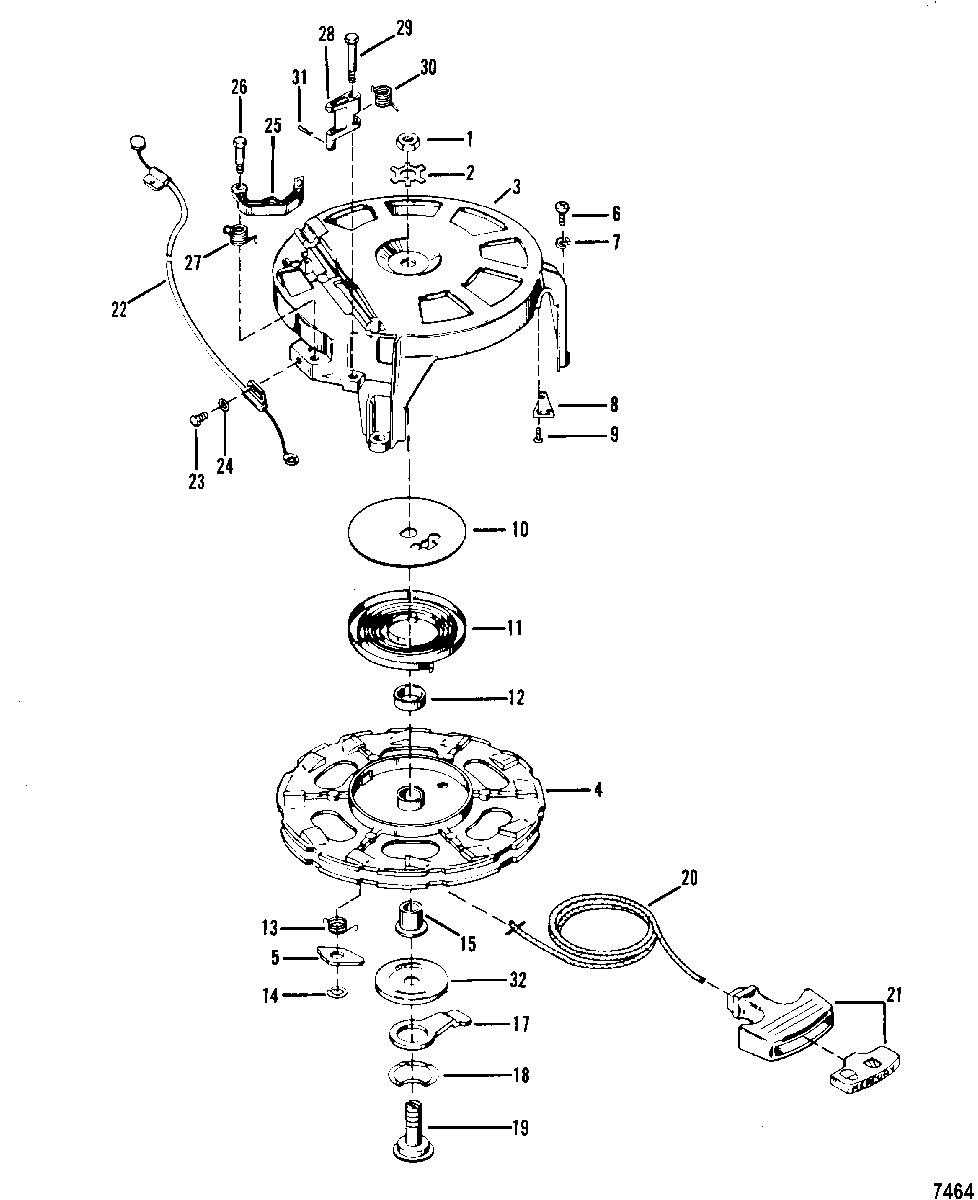

Starter Rewind для Mercury - 45 (4 CYL.) 0A719281 & Up
-
№АртикулНазвание
-
111-20166 NUT, Sheave Shaft (Left Hand Thread)NUT, Sheave Shaft (Left Hand Thread)
-
214-61004 TAB WASHER, Sheave Shaft NutTAB WASHER, Sheave Shaft Nut
-
3890162 HOUSING, StarterHOUSING, Starter
-
450-44255A1 SHEAVE ASSEMBLY, StarterSHEAVE ASSEMBLY, Starter
-
544508 PAWL, StarterPAWL, Starter
-
610-54523 SCREW, (.312-18 x 1.00), Starter HousingSCREW, (.312-18 x 1.00), Starter Housing
-
713-20202 LOCKWASHER, Starter Housing ScrewLOCKWASHER, Starter Housing Screw
-
837691 PLATE, Cable GuidePLATE, Cable Guide
-
910-358811 SCREW, (#6-32 x .250), Drive - Cable Guide PlateSCREW, (#6-32 x .250), Drive - Cable Guide Plate
-
1061002 PLATE, Starter RewindPLATE, Starter Rewind
-
1124-39502T02 SPRINGSPRING
-
1223-87649 BUSHING, Spring GuideBUSHING, Spring Guide
-
1324-87651 SPRING, Starter PawlSPRING, Starter Pawl
-
1453-87706 E RING, Starter PawlE RING, Starter Pawl
-
1523-63061 SPACER, Sheave ShaftSPACER, Sheave Shaft
-
1794962 LEVERLEVER
-
1813-20160 WAVE WASHERWAVE WASHER
-
1987656 SHEAVE SHAFTSHEAVE SHAFT
-
2050-12066Q10 ROPEROPE
-
2047341A11 ROPE AND HANDLE KIT, Manual/Emergency Start, For Manual StartingROPE AND HANDLE KIT, Manual/Emergency Start, For Manual Starting
-
2185174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
2276568 CABLE, Interlock
(Also Used on Electric Tiller Handle Models)CABLE, Interlock
(Also Used on Electric Tiller Handle Models) -
2310-69022 SCREW, (#10-32 x .500) Stainless Steel, Interlock Cable Attaching
(Also Used on Electric Tiller Handle Models)SCREW, (#10-32 x .500) Stainless Steel, Interlock Cable Attaching
(Also Used on Electric Tiller Handle Models) -
2412-73288 WASHER, Interlock Cable Screw
(Also Used on Electric Tiller Handle Models)WASHER, Interlock Cable Screw
(Also Used on Electric Tiller Handle Models) -
25428201 CAM, InterlockCAM, Interlock
-
2610-76138 SCREW, (.312-18 x 1.120), Interlock Cam (1.125 Inch)SCREW, (.312-18 x 1.120), Interlock Cam (1.125 Inch)
-
2724-761401 SPRING, Interlock Cam ScrewSPRING, Interlock Cam Screw
-
2879371 ACTUATOR, InterlockACTUATOR, Interlock
-
2910-76137 SCREW, Interlock Actuator (1.625 Inch)SCREW, Interlock Actuator (1.625 Inch)
-
3024-76139 SPRING, Interlock Actuator ScrewSPRING, Interlock Actuator Screw
-
3118-26811 COTTER PIN, Interlock Cable to ActuatorCOTTER PIN, Interlock Cable to Actuator
-
3212-35559 WASHER, Starter RewindWASHER, Starter Rewind
-
-89016A3 STARTER ASSEMBLY, RewindSTARTER ASSEMBLY, Rewind
