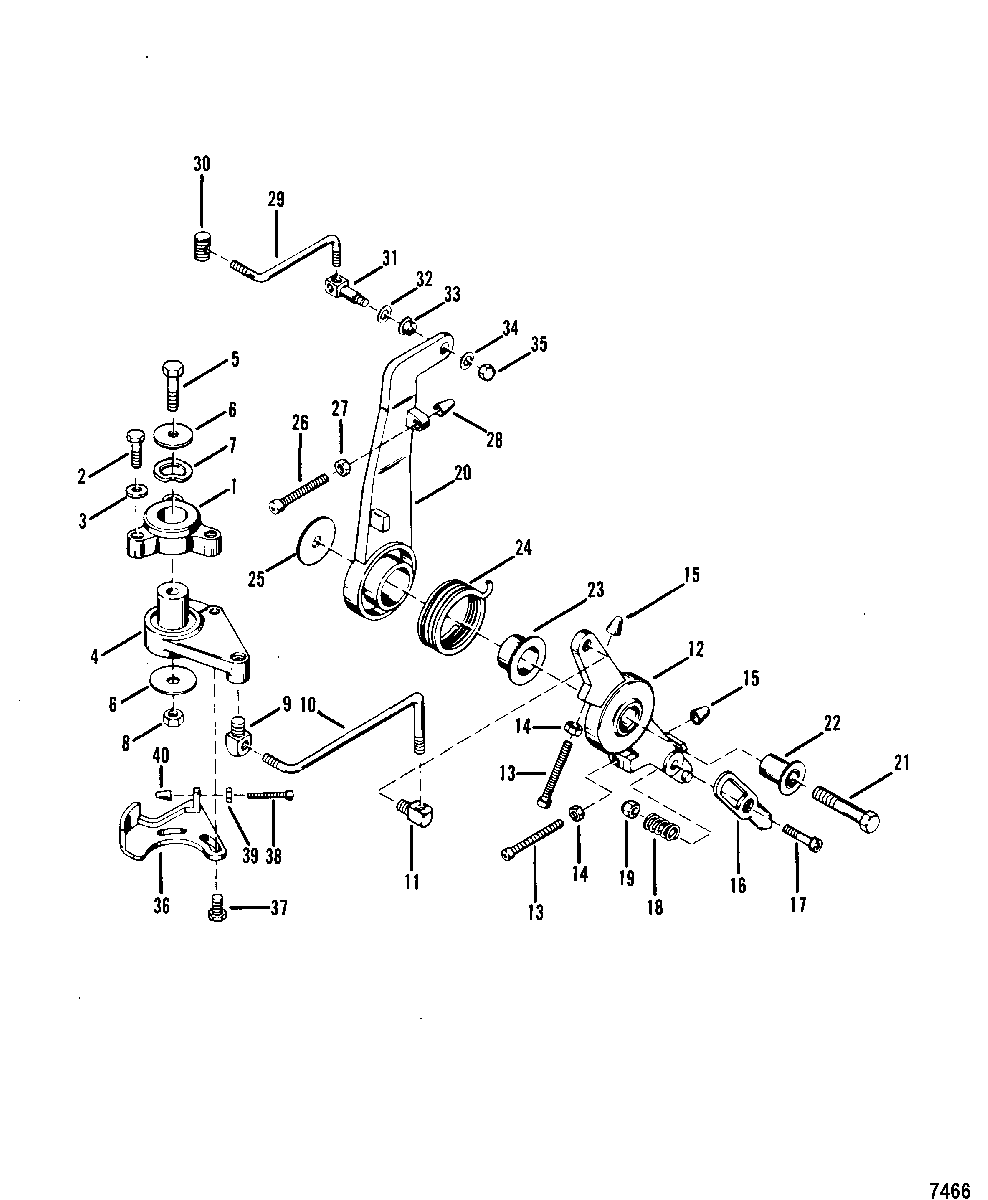

Throttle Control Linkage для Mercury - 45 (4 CYL.) 0B110789 & Up
-
№АртикулНазвание
-
172040T BRACKET, Throttle ActuatorBRACKET, Throttle Actuator
-
210-53576 SCREW, (.312-18 x 1.125), Throttle Actuator Bracket
(1.125 Inch)SCREW, (.312-18 x 1.125), Throttle Actuator Bracket
(1.125 Inch) -
313-26993 LOCKWASHER, (.312), Throttle Actuator Bracket ScrewLOCKWASHER, (.312), Throttle Actuator Bracket Screw
-
4815603A1 ACTUATOR, ThrottleACTUATOR, Throttle
-
510-21449 SCREW, (.312-24 x 2.00), Bracket to Throttle ActuatorSCREW, (.312-24 x 2.00), Bracket to Throttle Actuator
-
612-25893 WASHER, Bracket ScrewWASHER, Bracket Screw
-
713-62172 WAVE WASHER, Bracket ScrewWAVE WASHER, Bracket Screw
-
811-29250 NUT, (.312-24), Bracket ScrewNUT, (.312-24), Bracket Screw
-
957440 SWIVEL, Link Rod to Throttle ActuatorSWIVEL, Link Rod to Throttle Actuator
-
1072043 LINK RODLINK ROD
-
1157440 SWIVEL, Link Rod to Throttle ArmSWIVEL, Link Rod to Throttle Arm
-
12815603A1 ARM, ThrottleARM, Throttle
-
1310-89778 SCREW, Adjusting - Throttle Arm
(2.25 Inch)SCREW, Adjusting - Throttle Arm
(2.25 Inch) -
1310-25158 SCREW, (.190-32 x 1.75), Adjusting - Throttle ArmSCREW, (.190-32 x 1.75), Adjusting - Throttle Arm
-
1411-68219 NUT, (#10-32) Stainless Steel, Adjusting ScrewNUT, (#10-32) Stainless Steel, Adjusting Screw
-
1548039 CAP, Adjusting ScrewCAP, Adjusting Screw
-
1639483 LATCH, Throttle ArmLATCH, Throttle Arm
-
1710-69026 SCREW, (.250-28 x .880), Latch to Throttle ArmSCREW, (.250-28 x .880), Latch to Throttle Arm
-
1824-20099 SPRING, Compression - Latch ScrewSPRING, Compression - Latch Screw
-
1911-826709109 NUT, (.250-28), Latch ScrewNUT, (.250-28), Latch Screw
-
20815607A1 LEVER, Spark AdvanceLEVER, Spark Advance
-
2110-818165 SCREW, (.375-16 x 1.75), Lever and Arm to Cylinder Block
(1.75 Inch)SCREW, (.375-16 x 1.75), Lever and Arm to Cylinder Block
(1.75 Inch) -
2223-55164 BUSHING, Lever and Arm ScrewBUSHING, Lever and Arm Screw
-
2323-55171 BUSHING, Lever and Arm ScrewBUSHING, Lever and Arm Screw
-
2424-55162 SPRING, Return - Spark Advance LeverSPRING, Return - Spark Advance Lever
-
2512-46765 WASHER, Lever and Arm ScrewWASHER, Lever and Arm Screw
-
2610-25158 SCREW, (.190-32 x 1.75), Adjusting - Spark Advance LeverSCREW, (.190-32 x 1.75), Adjusting - Spark Advance Lever
-
2711-68219 NUT, (#10-32) Stainless Steel, Adjusting ScrewNUT, (#10-32) Stainless Steel, Adjusting Screw
-
2848039 CAP, Adjusting ScrewCAP, Adjusting Screw
-
2976056 LINK ROD, Spark Advance
(2.50 Inch Long)LINK ROD, Spark Advance
(2.50 Inch Long) -
3074897T PIVOT, Threaded - Link Rod to TriggerPIVOT, Threaded - Link Rod to Trigger
-
3177013A1 SWIVEL, Link Rod to Spark Advance LeverSWIVEL, Link Rod to Spark Advance Lever
-
3213-29402 WAVE WASHER, SwivelWAVE WASHER, Swivel
-
3323-26856 BUSHING, Link Rod SwivelBUSHING, Link Rod Swivel
-
3412-73288 WASHER, Link Rod SwivelWASHER, Link Rod Swivel
-
3511-45774 NUT, Link Rod SwivelNUT, Link Rod Swivel
-
3666778T PLATE, Throttle ActuatorPLATE, Throttle Actuator
-
3710-46420 SCREW, (#10-24 x .500), Plate to Throttle Actuator
(.50 Inch Length)SCREW, (#10-24 x .500), Plate to Throttle Actuator
(.50 Inch Length) -
3810-23015 SCREW, (.190-32 x 1.00), Adjusting - PlateSCREW, (.190-32 x 1.00), Adjusting - Plate
-
3911-68219 NUT, (#10-32) Stainless Steel, Adjusting ScrewNUT, (#10-32) Stainless Steel, Adjusting Screw
-
4048039 CAP, Adjusting ScrewCAP, Adjusting Screw
