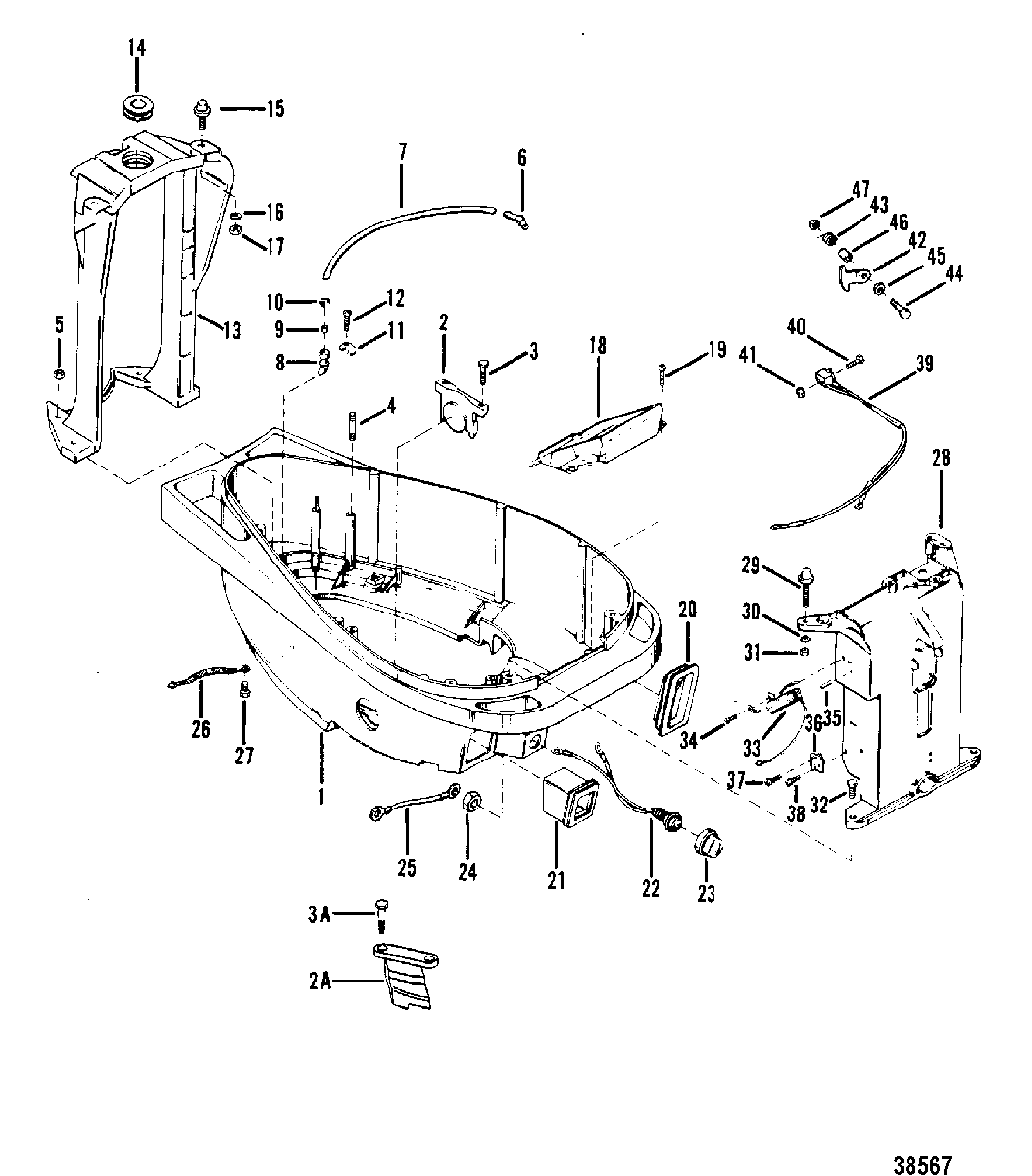

BOTTOM COWL AND SUPPORT BRACKETS для Mercury - 45 (4 CYL.) 7143688 THRU 0A719280
-
№АртикулНазвание
-
12116-7715A4 BOTTOM COWL ASSEMBLY (MERCURY)BOTTOM COWL ASSEMBLY (MERCURY)
-
12116-7715A5 BOTTOM COWL ASSEMBLY (DARK GRAY) - MARINERBOTTOM COWL ASSEMBLY (DARK GRAY) - MARINER
-
12116-7715A5 BOTTOM COWL ASSEMBLY (LIGHT GRAY)- MARINERBOTTOM COWL ASSEMBLY (LIGHT GRAY)- MARINER
-
288926F1 COVER, BOTTOM COWL - ELECTRICCOVER, BOTTOM COWL - ELECTRIC
-
2A948801 PLUG, BOTTOM COWL - MANUALPLUG, BOTTOM COWL - MANUAL
-
310-45862 SCREW, (#10-32 x .875), ELECTRICSCREW, (#10-32 x .875), ELECTRIC
-
3A10-28636 SCREW, (.250-20 x .750), MANUALSCREW, (.250-20 x .750), MANUAL
-
416-68169 STUD, BOTTOM COWLSTUD, BOTTOM COWL
-
511-35888 NUT, (.250-28) Stainless Steel, BOTTOM COWL STUDNUT, (.250-28) Stainless Steel, BOTTOM COWL STUD
-
622-782792 ELBOW, TELL TALE HOSE - CYLINDER BLOCKELBOW, TELL TALE HOSE - CYLINDER BLOCK
-
732-7568058 HOSE, TELL TALE HOSE TO BOTTOM COWL (14")HOSE, TELL TALE HOSE TO BOTTOM COWL (14")
-
869791 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
923-90882 SLEEVE, TELL TALE NOZZLESLEEVE, TELL TALE NOZZLE
-
1054-68424 CLAMP, TELL TALE NOZZLECLAMP, TELL TALE NOZZLE
-
1166849 CLAMP, NOZZLE - TELL TALECLAMP, NOZZLE - TELL TALE
-
1210-48408 SCREW, (#10-16 x .500), NOZZLE CLAMP TO BOTTOM COWLSCREW, (#10-16 x .500), NOZZLE CLAMP TO BOTTOM COWL
-
13720201 BRACKET, REAR SUPPORTBRACKET, REAR SUPPORT
-
1425-52723 GROMMET, REAR SUPPORT BRACKETGROMMET, REAR SUPPORT BRACKET
-
1560577 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
1612-69056 WASHER, (.255 x .625 x .0312), RUBBER MOUNTWASHER, (.255 x .625 x .0312), RUBBER MOUNT
-
1711-29598 NUT, (.250-28) Stainless Steel, RUBBER MOUNTNUT, (.250-28) Stainless Steel, RUBBER MOUNT
-
1872466 DRIP TRAYDRIP TRAY
-
1910-48409 SCREW, (#10-16 x .625) Stainless Steel, DRIP TRAY TO BOTTOM COWLSCREW, (#10-16 x .625) Stainless Steel, DRIP TRAY TO BOTTOM COWL
-
2037695 BOOT, CONTROL CABLEBOOT, CONTROL CABLE
-
2137637 BOOT, FUEL CONNECTORBOOT, FUEL CONNECTOR
-
2287-69508A31 SWITCH ASSEMBLY, Stop (MANUAL PUSH BUTTOM SWITCH)SWITCH ASSEMBLY, Stop (MANUAL PUSH BUTTOM SWITCH)
-
2387-99525A1 COVER ASSEMBLYCOVER ASSEMBLY
-
2411-69844 NUTNUT
-
2584-62190A8 WIRE ASSEMBLY (ORANGE)WIRE ASSEMBLY (ORANGE)
-
2684-88238T01 CABLE ASSEMBLY (3-3/8")CABLE ASSEMBLY (3-3/8")
-
2710-62568 SCREW, (#10-16 x .375), GROUND STRAPSCREW, (#10-16 x .375), GROUND STRAP
-
2899150A5 BRACKET ASSEMBLY, FRONT SUPPORTBRACKET ASSEMBLY, FRONT SUPPORT
-
2931014 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
3013-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNTLOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
-
3111-29598 NUT, (.250-28) Stainless Steel, RUBBER MOUNTNUT, (.250-28) Stainless Steel, RUBBER MOUNT
-
3210-37562 SCREW, (.312-18 x 1.00) Stainless SteelSCREW, (.312-18 x 1.00) Stainless Steel
-
3358124A20 SWITCH ASSEMBLY, Mercury (MANUAL)SWITCH ASSEMBLY, Mercury (MANUAL)
-
3387-33386A3 SWITCH ASSEMLBY, Mercury (ELECTRIC)SWITCH ASSEMLBY, Mercury (ELECTRIC)
-
3410-69235 SCREW, (.190-24 x .500), SWITCH TO FRONT BRACKETSCREW, (.190-24 x .500), SWITCH TO FRONT BRACKET
-
3517-36242 PIN, Roll, MERCURY SWITCHPIN, Roll, MERCURY SWITCH
-
3686-45915 TERMINAL BLOCKTERMINAL BLOCK
-
3710-20411 SCREW, (.190-24 x .62)SCREW, (.190-24 x .62)
-
3810-69079 SCREW, (#10-16 x .440), HARNESS LEADSSCREW, (#10-16 x .440), HARNESS LEADS
-
3987-74605A4 SWITCH ASSEMBLY, NEUTRAL START
ELECTRIC TILLER HANDLE MODELSSWITCH ASSEMBLY, NEUTRAL START
ELECTRIC TILLER HANDLE MODELS -
4010-64332 SCREW, (#4-40 x .750), SWITCH TO FRONT BRACKET
ELECTRIC TILLER HANDLE MODELSSCREW, (#4-40 x .750), SWITCH TO FRONT BRACKET
ELECTRIC TILLER HANDLE MODELS -
4111-24832 NUT, (#4-40), SWITCH SCREW
ELECTRIC TILLER HANDLE MODELSNUT, (#4-40), SWITCH SCREW
ELECTRIC TILLER HANDLE MODELS -
4297411 ACTUATOR
ELECTRIC TILLER HANDLE MODELSACTUATOR
ELECTRIC TILLER HANDLE MODELS -
4324-88099 SPRING, INTERLOCK ACTUATOR
ELECTRIC TILLER HANDLE MODELSSPRING, INTERLOCK ACTUATOR
ELECTRIC TILLER HANDLE MODELS -
4410-37892 SCREW, (.190-32 x 1.00), ACTUATOR TO FRONT BRACKET
ELECTRIC TILLER HANDLE MODELSSCREW, (.190-32 x 1.00), ACTUATOR TO FRONT BRACKET
ELECTRIC TILLER HANDLE MODELS -
4512-22887 WASHER, ACTUATOR SCREW
ELECTRIC TILLER HANDLE MODELSWASHER, ACTUATOR SCREW
ELECTRIC TILLER HANDLE MODELS -
4623-88100 SPACER, ACTUATOR SCREW
ELECTRIC TILLER HANDLE MODELSSPACER, ACTUATOR SCREW
ELECTRIC TILLER HANDLE MODELS -
4711-859124 NUT, (#10-32) Stainless Steel, ACTUATOR SCREW
ELECTRIC TILLER HANDLE MODELSNUT, (#10-32) Stainless Steel, ACTUATOR SCREW
ELECTRIC TILLER HANDLE MODELS
