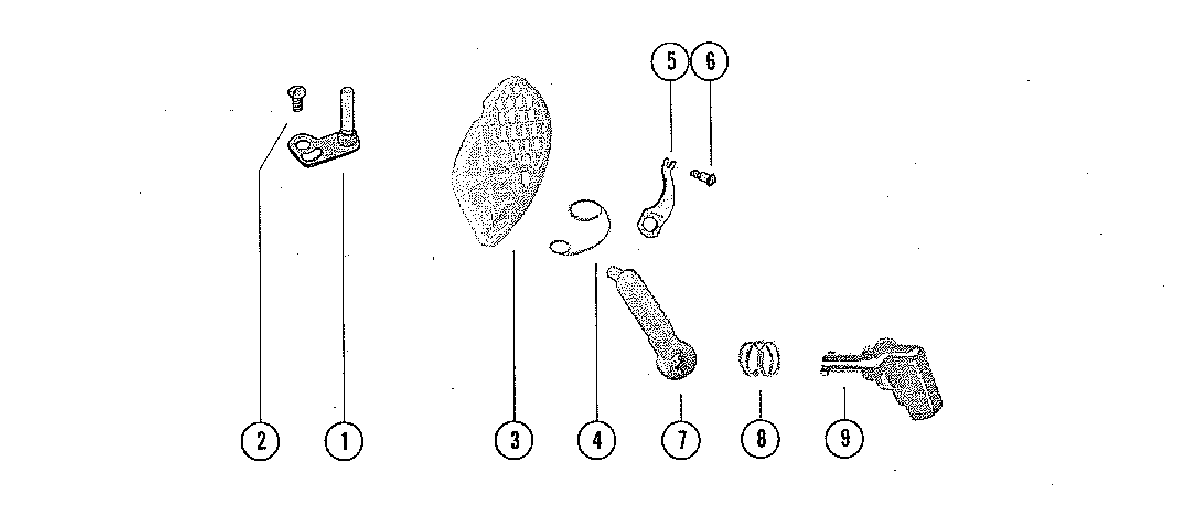

CARBURETOR CHOKE LINKAGE для Mercury - 45, 4.5 (1 CYL.) 8026540 THRU 8068064
-
№АртикулНазвание
-
159000 THROTTLE LEVERTHROTTLE LEVER
-
210-20597 SCREW, THROTTLE LEVER TO CARBURETOR (3/8")SCREW, THROTTLE LEVER TO CARBURETOR (3/8")
-
379092 SHUTTER AND SCREEN, CHOKE - CARBURETORSHUTTER AND SCREEN, CHOKE - CARBURETOR
-
424-53193 SPRING, CHOKE SHUTTER TO LEVERSPRING, CHOKE SHUTTER TO LEVER
-
524-55299A1 SPRING ASSEMBLY, CARBURETORSPRING ASSEMBLY, CARBURETOR
-
610-55298 SCREW, SPRIING TO CARBURETORSCREW, SPRIING TO CARBURETOR
-
753187 LEVER, CHOKELEVER, CHOKE
-
824-53190 SPRING, TENSION - CHOKE KNOBSPRING, TENSION - CHOKE KNOB
-
953189 KNOB, CHOKEKNOB, CHOKE
