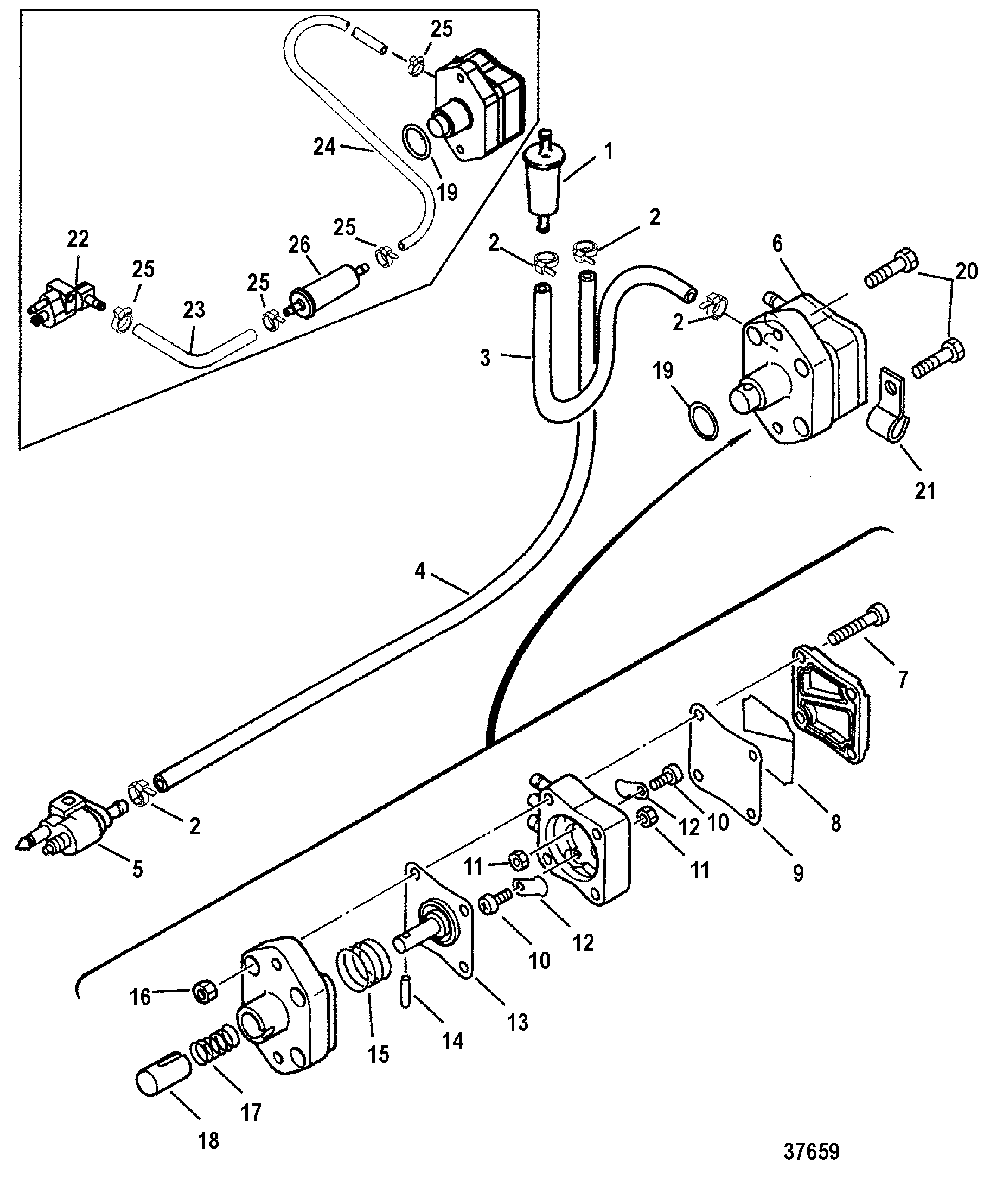

FUEL PUMP для Mercury - 45 BODENSEE (4-STROKE) 0G231123 THRU 0G760299
-
№АртикулНазвание
-
135-816296Q2 FILTER, Fuel
SN# 0G589999 & BelowFILTER, Fuel
SN# 0G589999 & Below -
254-816311T TIE STRAP, (8.00 Inches)
SN# 0G589999 & BelowTIE STRAP, (8.00 Inches)
SN# 0G589999 & Below -
332-8M0108355 HOSE, (57.00 Inches Bulk) (10 IN.)
SN# 0G589999 & BelowHOSE, (57.00 Inches Bulk) (10 IN.)
SN# 0G589999 & Below -
432-8M0108349 TUBING, (28.00 Inches Bulk)
SN# 0G589999 & BelowTUBING, (28.00 Inches Bulk)
SN# 0G589999 & Below -
522-816856Q3 CONNECTOR ASSEMBLY, Fuel - Plastic
SN# 0G589999 & BelowCONNECTOR ASSEMBLY, Fuel - Plastic
SN# 0G589999 & Below -
-25-16524 O-RING, Fuel Connector
SN# 0G589999 & BelowO-RING, Fuel Connector
SN# 0G589999 & Below -
6826398T3 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
710-809564 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
8809565 COVERCOVER
-
98095611 DIAPHRAGMDIAPHRAGM
-
1010-41889M SCREW, (M3 x 5)SCREW, (M3 x 5)
-
1111-82537M NUTNUT
-
1221-41888M CHECK VALVECHECK VALVE
-
138095612 DIAPHRAGMDIAPHRAGM
-
1417-8095661 PINPIN
-
1524-809562 SPRINGSPRING
-
1611-82388M NUT, (M5)NUT, (M5)
-
1724-8095621 SPRINGSPRING
-
188095631 PLUNGERPLUNGER
-
1925-8M0052669 O-RINGO-RING
-
2010-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2154-55098 J CLIPJ CLIP
-
2222-816856A4 CONNECTOR ASSEMBLY, Fuel
SN# 0G590000 & UpCONNECTOR ASSEMBLY, Fuel
SN# 0G590000 & Up -
-25-16524 O-RING, Fuel Connector
SN# 0G590000 & UpO-RING, Fuel Connector
SN# 0G590000 & Up -
2332-8M0108355 HOSE, (57.00 Inches Bulk) (19 IN.)
SN# 0G590000 & UpHOSE, (57.00 Inches Bulk) (19 IN.)
SN# 0G590000 & Up -
2432-8M0108355 HOSE, (57.00 Inches Bulk) (16 IN.)
SN# 0G590000 & UpHOSE, (57.00 Inches Bulk) (16 IN.)
SN# 0G590000 & Up -
2554-816311T TIE STRAP, (8.00 Inches)
SN# 0G590000 & UpTIE STRAP, (8.00 Inches)
SN# 0G590000 & Up -
2635-816296Q03 FILTER, Fuel
SN# 0G590000 & UpFILTER, Fuel
SN# 0G590000 & Up -
-27-832013A96 GASKET SETGASKET SET
