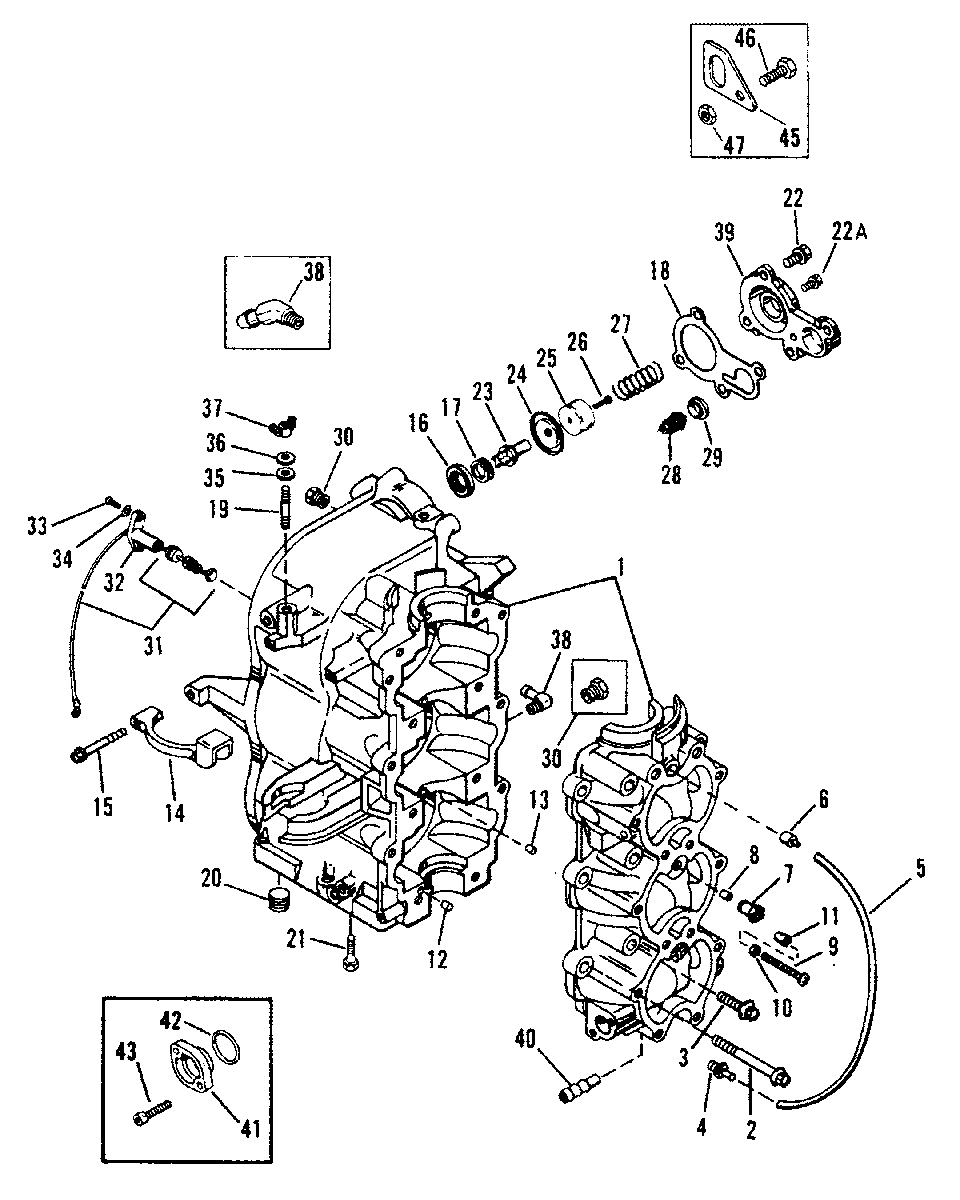

CYLINDER BLOCK AND CRANKCASE для Mercury - 45 JET 0D000750 THRU 0G290584
-
№АртикулНазвание
-
1883-9755A9 CYLINDER BLOCK (50)
(S/N 0D181999 & BELOW)CYLINDER BLOCK (50)
(S/N 0D181999 & BELOW) -
1883-9755T14 CYLINDER BLOCK (55)
(S/N 0D181999 & BELOW)CYLINDER BLOCK (55)
(S/N 0D181999 & BELOW) -
1883-9755T10 CYLINDER BLOCK (60)
(S/N 0D181999 & BELOW)CYLINDER BLOCK (60)
(S/N 0D181999 & BELOW) -
1883-9755T15 CYLINDER BLOCK (ALL)
(S/N 0D182000 & ABOVE)CYLINDER BLOCK (ALL)
(S/N 0D182000 & ABOVE) -
210-81742780 SCREWSCREW
-
310-81742730 SCREWSCREW
-
421-426585 CHECK VALVECHECK VALVE
-
532-892024122 HOSE (16")HOSE (16")
-
621-426233 CHECK VALVE (PRESS-IN)CHECK VALVE (PRESS-IN)
-
7812888A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
821-42657A3 CHECK VALVECHECK VALVE
-
910-814776 ADJUSTING SCREWADJUSTING SCREW
-
1011-400212 JAM NUTJAM NUT
-
1142942 CAPCAP
-
1217-43044 DOWEL PIN (LOCATING)DOWEL PIN (LOCATING)
-
1317-8M0084653 DOWEL PIN (BEARING RACE)DOWEL PIN (BEARING RACE)
-
1418597 COVERCOVER
-
1510-81742750 SCREWSCREW
-
1665848 CARRIER
(50/60 - DESIGN I)CARRIER
(50/60 - DESIGN I) -
1725-64872 GROMMET
(50/60 - DESIGN I)GROMMET
(50/60 - DESIGN I) -
1827-8128671 GASKET
(USE W/DESIGN I REF'S # 16 & 17)GASKET
(USE W/DESIGN I REF'S # 16 & 17) -
1827-8128672 GASKET
(DESIGN II - W/O REF'S #16 & 17)GASKET
(DESIGN II - W/O REF'S #16 & 17) -
1916-8161949 STUDSTUD
-
2022-185981 PIPE PLUGPIPE PLUG
-
2110-817430110 SCREWSCREW
-
2210-81742720 SCREW (20MM - QTY. OF 3 ON 55)
(USE W/DESIGN I REF'S # 16 & 17)SCREW (20MM - QTY. OF 3 ON 55)
(USE W/DESIGN I REF'S # 16 & 17) -
22A10-12896 SCREW (55)
(USE W/DESIGN I REF'S # 16 & 17)SCREW (55)
(USE W/DESIGN I REF'S # 16 & 17) -
2210-40011149 SCREW (25MM - QTY. OF 3 ON 55)
(DESIGN II - W/O REF'S # 16 & 17)SCREW (25MM - QTY. OF 3 ON 55)
(DESIGN II - W/O REF'S # 16 & 17) -
22A10-12896 SCREW (55)
(DESIGN II - W/O REF'S # 16 & 17)SCREW (55)
(DESIGN II - W/O REF'S # 16 & 17) -
238128821 POPPET VALVE
50/60POPPET VALVE
50/60 -
24812887 DIAPHRAGM
50/60 (USE W/DESIGN I REF'S # 16 & 17)DIAPHRAGM
50/60 (USE W/DESIGN I REF'S # 16 & 17) -
24812887002 DIAPHRAGM
(50/60) (DESIGN II - W/O REF'S #16 & 17)DIAPHRAGM
(50/60) (DESIGN II - W/O REF'S #16 & 17) -
2512-94182 WASHER
(50/60)WASHER
(50/60) -
2610-69570 SCREW
(50/60)SCREW
(50/60) -
2724-90392 SPRING
(50/60)SPRING
(50/60) -
2724-42996 SPRING (60 PONTOON)
(50/60)SPRING (60 PONTOON)
(50/60) -
2875692 THERMOSTAT (143)
(50/60)THERMOSTAT (143)
(50/60) -
2814586 THERMOSTAT (120)
50/60THERMOSTAT (120)
50/60 -
2927-62386001 GASKET
50/60GASKET
50/60 -
3022-328022 PIPE PLUGPIPE PLUG
-
31787992 TEMPERATURE SENDERTEMPERATURE SENDER
-
32889733 RETAINERRETAINER
-
3310-878609 SCREWSCREW
-
3412-56681 WASHERWASHER
-
3512-49221 WASHER
(50/60)WASHER
(50/60) -
3612-69056 WASHER
(50/60)WASHER
(50/60) -
3711-816872 WING NUT
(50/60)WING NUT
(50/60) -
3822-996642 ELBOW
(50/60)ELBOW
(50/60) -
3822-782792 ELBOW
(55)ELBOW
(55) -
3919074 COVER
(USE W/DESIGN I REF'S # 16 & 17)COVER
(USE W/DESIGN I REF'S # 16 & 17) -
398M0036859 COVER
(DESIGN II - W/O REF'S #16 & 17)COVER
(DESIGN II - W/O REF'S #16 & 17) -
4022-56759 FITTING
(50/60)FITTING
(50/60) -
418129961 COVER
(55)(S/N 0A000000-0D181999)COVER
(55)(S/N 0A000000-0D181999) -
418129962 COVER
(55)(S/N 0D182000-0Z999999)COVER
(55)(S/N 0D182000-0Z999999) -
4225-48462 O-RING
(55)O-RING
(55) -
4310-40011108 SCREW
(55)SCREW
(55) -
45821595 LIFTING EYE
(55)LIFTING EYE
(55) -
4610-821616 SCREW
55 (45MM - USE W/DESIGN I REF'S # 16 & 17)SCREW
55 (45MM - USE W/DESIGN I REF'S # 16 & 17) -
4610-821606 SCREW
55 (55MM - DESIGN II - W/O REF'S #16 & 17 )SCREW
55 (55MM - DESIGN II - W/O REF'S #16 & 17 ) -
4711-401368 NUT
(55)NUT
(55) -
-27-812867A97 ENGINE GASKET SETENGINE GASKET SET
-
-811208T91 POWERHEAD ASSEMBLY COMPLETE (50)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)POWERHEAD ASSEMBLY COMPLETE (50)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED) -
-821744T92 POWERHEAD ASSEMBLY COMPLETE (55)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)POWERHEAD ASSEMBLY COMPLETE (55)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED) -
-811209T91 POWERHEAD ASSEMBLY COMPLETE (60)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)POWERHEAD ASSEMBLY COMPLETE (60)
(S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED) -
-811209T93 POWERHEAD ASSEMBLY COMPLETE (ALL)
(S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)POWERHEAD ASSEMBLY COMPLETE (ALL)
(S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)
