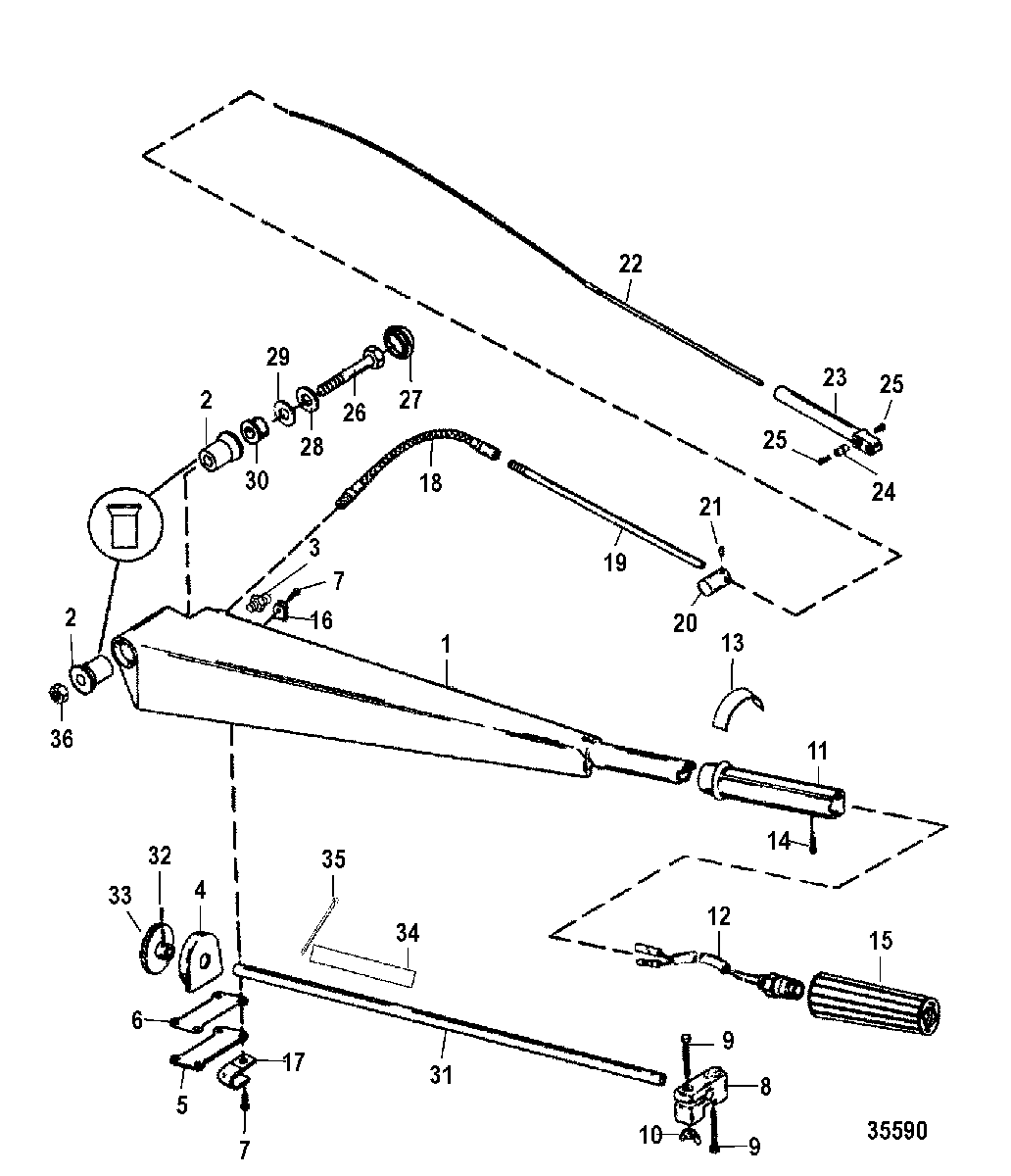

Steering Handle Kit для Mercury - 45 JET 0G590000 THRU 0G760299
-
№АртикулНазвание
-
112020A3 HANDLE ASSEMBLY, Steering Arm
(BLACK)HANDLE ASSEMBLY, Steering Arm
(BLACK) -
112020A3 HANDLE ASSEMBLY, Steering Arm
(GRAY)HANDLE ASSEMBLY, Steering Arm
(GRAY) -
223-42992T02 BUSHINGBUSHING
-
322-74036 FITTING, GreaseFITTING, Grease
-
448414 HOUSINGHOUSING
-
548519 PLATEPLATE
-
627-48518 GASKETGASKET
-
710-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
710-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
854-889729 CLAMPCLAMP
-
910-40007112 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1011-816874 WING NUTWING NUT
-
1187-823609A15 SWITCH KIT, Stop - Throttle HandleSWITCH KIT, Stop - Throttle Handle
-
1287-8M0104612 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
13NSS NOT SOLD SEPARATE, Decal-ThrottleNOT SOLD SEPARATE, Decal-Throttle
-
1410-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1599589003 GRIPGRIP
-
1654-648551 CLAMPCLAMP
-
1754-648551 CLAMPCLAMP
-
-12019A1 CABLE KIT, ThrottleCABLE KIT, Throttle
-
188885242 CONDUITCONDUIT
-
198M0026078 GUIDE TUBEGUIDE TUBE
-
2089578 BARRELBARREL
-
2110-824081 SET SCREW, (#10-32)SET SCREW, (#10-32)
-
2212019 CABLE ASSEMBLYCABLE ASSEMBLY
-
2343433 GUIDEGUIDE
-
2420007 ANCHORANCHOR
-
2510-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
2610-823567105 SCREW, (M10 x 105) Hex Flange - Stainless SteelSCREW, (M10 x 105) Hex Flange - Stainless Steel
-
2748416T CAPCAP
-
2812-4002319 WASHERWASHER
-
2912-12024 WASHER, (.402 x .787 x .039 Bellevi)WASHER, (.402 x .787 x .039 Bellevi)
-
3023-146011 SPACERSPACER
-
3112018A4 TUBE ASSEMBLY, ThrottleTUBE ASSEMBLY, Throttle
-
32NSS NOT SOLD SEPARATE, Roll PinNOT SOLD SEPARATE, Roll Pin
-
33NSS NOT SOLD SEPARATE, Drive WheelNOT SOLD SEPARATE, Drive Wheel
-
34NSS NOT SOLD SEPARATE, InsulatorNOT SOLD SEPARATE, Insulator
-
3554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3611-40140 NUT, (M10)NUT, (M10)
