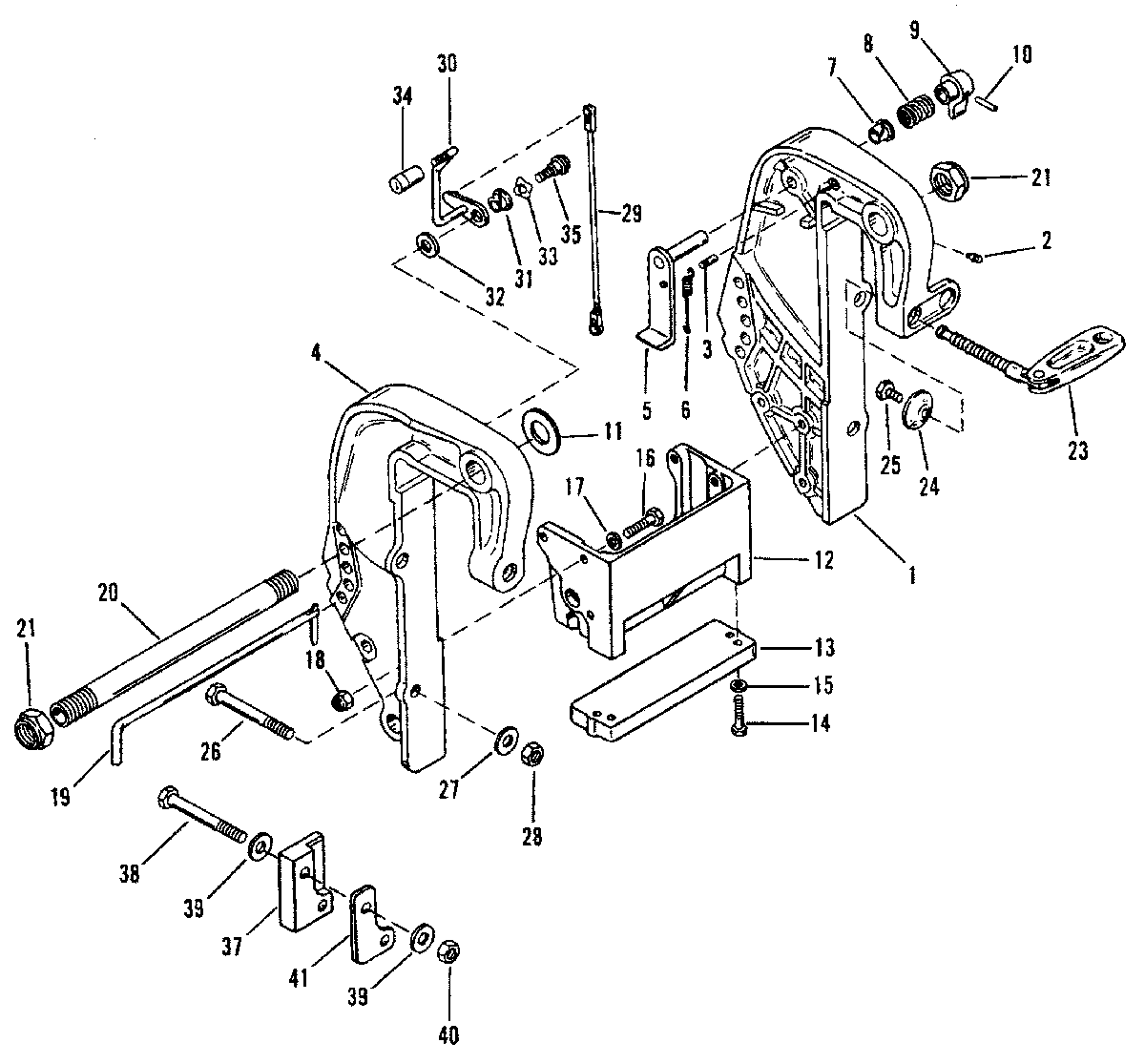

CLAMP BRACKET (55) (S/N: 0D181999 AND BELOW) для Mercury - 45 JET 9683055 THRU 9885344
-
№АртикулНазвание
-
13508-818881A2 TRANSOM BRACKET (BLACK)
(PORT)TRANSOM BRACKET (BLACK)
(PORT) -
13508-818881A3 TRANSOM BRACKET (GRAY)
(PORT)TRANSOM BRACKET (GRAY)
(PORT) -
222-98727 GREASE FITTINGGREASE FITTING
-
317-99604 GROOVE PINGROOVE PIN
-
43507-818880F1 TRANSOM BRACKET (BLACK)
(STARBOARD)TRANSOM BRACKET (BLACK)
(STARBOARD) -
43507-818880F2 TRANSOM BRACKET (GRAY)
(STARBOARD)TRANSOM BRACKET (GRAY)
(STARBOARD) -
5893704T01 TILT LOCK LEVER (BLACK)TILT LOCK LEVER (BLACK)
-
5893704T01 TILT LOCK LEVER (GRAY)TILT LOCK LEVER (GRAY)
-
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOB (BLACK)KNOB (BLACK)
-
9812709 KNOB (GRAY)KNOB (GRAY)
-
1017-99615 GROOVE PINGROOVE PIN
-
1112-19619 WASHERWASHER
-
1218486A08 ANCHOR BRACKET (BLACK)ANCHOR BRACKET (BLACK)
-
1218486A08 ANCHOR BRACKET (GRAY)ANCHOR BRACKET (GRAY)
-
1397-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
1410-4000330 SCREWSCREW
-
1512-29245 WASHERWASHER
-
1610-4000354 SCREW (30 MM)SCREW (30 MM)
-
1610-4000355 SCREW (35 MM)SCREW (35 MM)
-
1713-400257 LOCKWASHERLOCKWASHER
-
1811-401388 NUTNUT
-
1917-8M0026068 TILT PIN ASSEMBLYTILT PIN ASSEMBLY
-
208M0041938 TILT TUBETILT TUBE
-
2111-858869 NUTNUT
-
2310-818883A1 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
2412-818884 WASHERWASHER
-
2510-768042 SCREWSCREW
-
2610-814259 SCREWSCREW
-
2712-28421 WASHERWASHER
-
2811-91962 NUTNUT
-
298M0084737 LINKLINK
-
3019615A05 TILT LEVERTILT LEVER
-
3123-812707 BUSHINGBUSHING
-
3212-815796 WASHERWASHER
-
3313-99611 WAVE WASHERWAVE WASHER
-
348M0007469 TILT KNOBTILT KNOB
-
3510-19611 SCREWSCREW
-
37812432F5 MOUNTING BRACKET (STARBOARD)MOUNTING BRACKET (STARBOARD)
-
37812433F5 MOUNTING BRACKET (PORT)MOUNTING BRACKET (PORT)
-
3810-88432 SCREWSCREW
-
3912-8M0042641 WASHERWASHER
-
4011-862903 NUTNUT
-
4115-821722 SHIMSHIM
