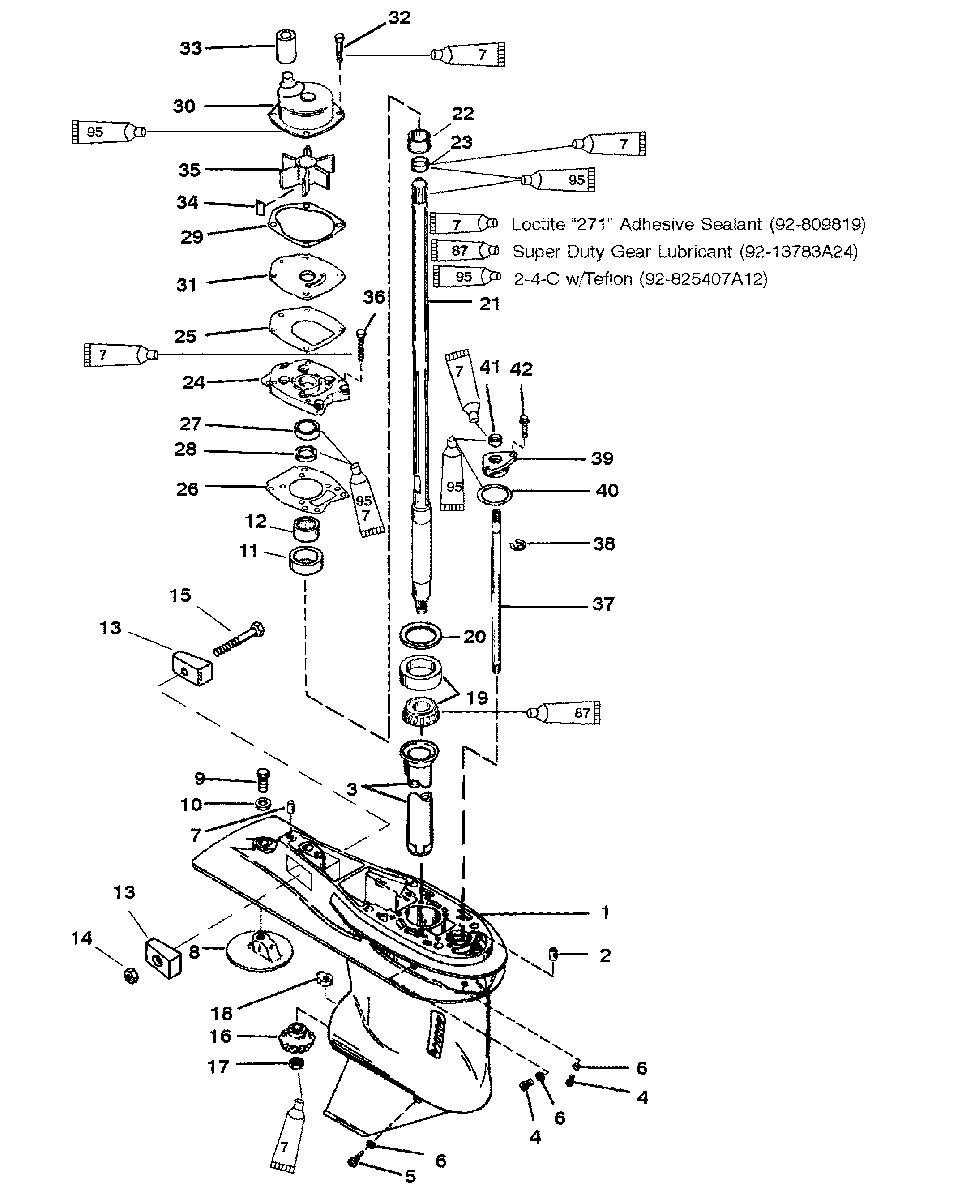

GEAR HSG(DRIVE SHAFT)(60 SEA/MARA/BIG FOOT,6 JAW REV. CLUTCH для Mercury - 45 JET 9885385 THRU 9973099
-
№АртикулНазвание
-
-1667-9011G92 GEAR HOUSING
(LONG) BLACKGEAR HOUSING
(LONG) BLACK -
-1667-9011G94 GEAR HOUSING
(LL) BLACKGEAR HOUSING
(LL) BLACK -
-1667-9011G92 GEAR HOUSING
(LONG) GRAYGEAR HOUSING
(LONG) GRAY -
-1667-9011G48 GEAR HOUSING
(LL) GRAYGEAR HOUSING
(LL) GRAY -
11667-9011G59 GEAR HOUSING ASSEMBLY
(BLACK)GEAR HOUSING ASSEMBLY
(BLACK) -
11667-9011G59 GEAR HOUSING ASSEMBLY
(GRAY)GEAR HOUSING ASSEMBLY
(GRAY) -
217-8M0084244 DOWEL PIN (FRONT)DOWEL PIN (FRONT)
-
343046 OILER TUBEOILER TUBE
-
410-79953Q04 DRAIN SCREWDRAIN SCREW
-
522-8M0058389 SCREW (MAGNETIC)SCREW (MAGNETIC)
-
612-191833 WASHER-SEALINGWASHER-SEALING
-
717-43044 DOWEL PIN (REAR)DOWEL PIN (REAR)
-
831640T07 TRIM TABTRIM TAB
-
910-825427 SCREW (.437-14 X 1.25)SCREW (.437-14 X 1.25)
-
1012-45176 WASHERWASHER
-
1143040T1 CARRIERCARRIER
-
12NSS NEEDLE BEARINGNEEDLE BEARING
-
1397-826134Q ANODEANODE
-
1411-401386 NUTNUT
-
1510-4000333 SCREW (M6 X 40)SCREW (M6 X 40)
-
1643-44484T PINION GEAR (ALSO PART OF 43-850033A2)PINION GEAR (ALSO PART OF 43-850033A2)
-
1711-35921 NUTNUT
-
18850307 SHIFT CAMSHIFT CAM
-
1931-42677A1 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
2015-8M0063265 SHIM ASSEMBLYSHIM ASSEMBLY
-
2145-826736A1 DRIVE SHAFT ASSEMBLY
(LONG)DRIVE SHAFT ASSEMBLY
(LONG) -
2145-826737A1 DRIVE SHAFT ASSEMBLY
(LL)DRIVE SHAFT ASSEMBLY
(LL) -
2242461A1 WEAR SLEEVE ASSEMBLYWEAR SLEEVE ASSEMBLY
-
23NSS RING SEALRING SEAL
-
2446-8M0113262 COVER ASSEMBLYCOVER ASSEMBLY
-
2527-430331 GASKETGASKET
-
2627-430472 GASKETGASKET
-
2726-43036 OIL SEAL
(LOWER)OIL SEAL
(LOWER) -
2826-43035 OIL SEAL
(UPPER)OIL SEAL
(UPPER) -
2927-8172771 GASKETGASKET
-
30817275A2 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
318172761 FACE PLATEFACE PLATE
-
3210-8248327 SCREW (M6 X 1 X 30)SCREW (M6 X 1 X 30)
-
33826763A1 COUPLING
(LONG)COUPLING
(LONG) -
33826762A1 COUPLING
(LL)COUPLING
(LL) -
3428-8M0032833 KEYKEY
-
3547-43026T2 IMPELLERIMPELLER
-
3610-8248326 SCREWSCREW
-
37853906A1 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
37853907A1 SHIFT SHAFT ASSEMBLY
(LL)SHIFT SHAFT ASSEMBLY
(LL) -
3853-29641 E-RINGE-RING
-
3923-43052A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4025-457101 O-RINGO-RING
-
4126-8164641 OIL SEALOIL SEAL
-
4210-8248326 SCREW (M6 X 1)SCREW (M6 X 1)
-
-46-8M0113799 W/P REPAIR KITW/P REPAIR KIT
-
-26-43035A4 SEAL KITSEAL KIT
