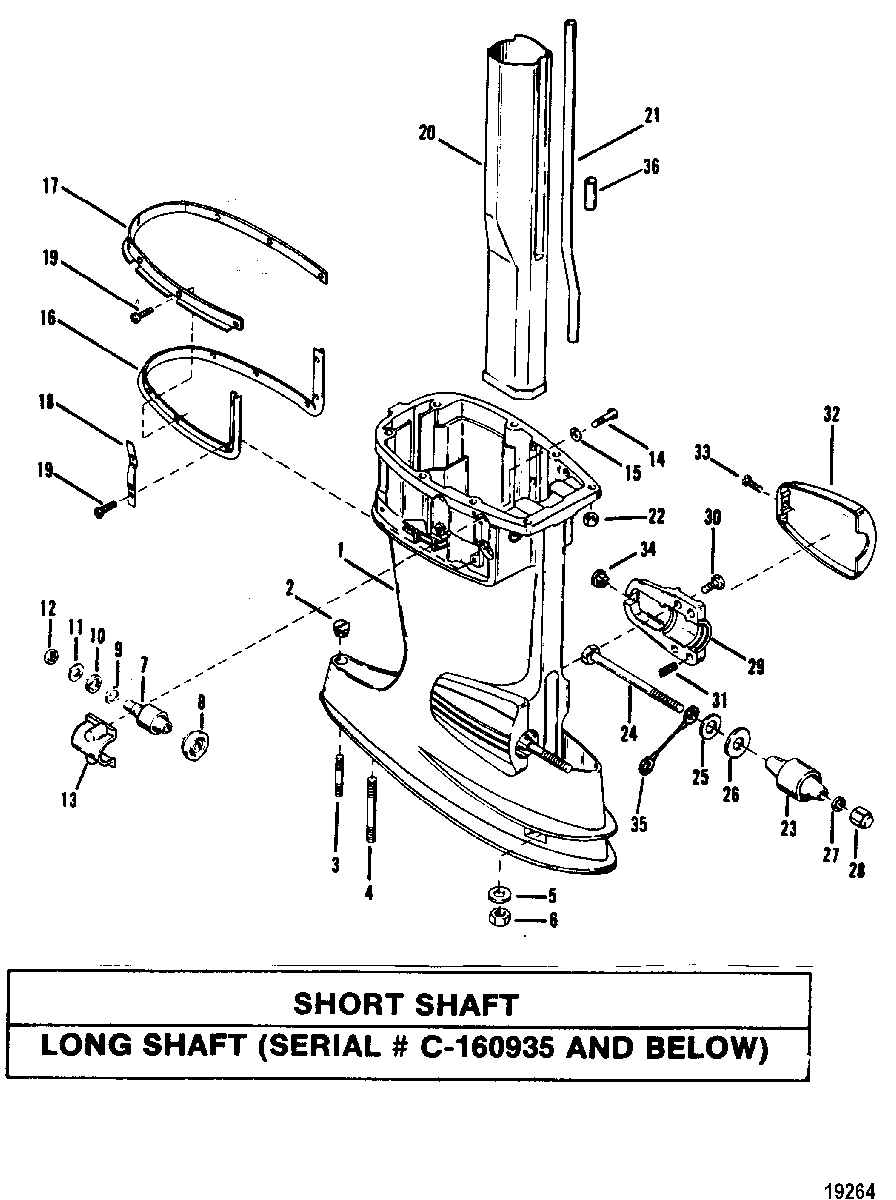

Driveshaft Housing(Short)(Long S/N-0C160935 and Below) для Mercury - 50 (3 CYL.) 0B122930 THRU 0D000749
-
№АртикулНазвание
-
11592-8188A8 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)(BLACK)
(NON POWER TRIM)HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT)(BLACK)
(NON POWER TRIM) -
11593-7513A12 HOUSING ASSEMBLY, Driveshaft (LONG SHAFT)(BLACK)
(NON POWER TRIM)HOUSING ASSEMBLY, Driveshaft (LONG SHAFT)(BLACK)
(NON POWER TRIM) -
11593-8189A10 HOUSING ASSEMBLY, Driveshaft (BLACK)
(POWER TRIM)HOUSING ASSEMBLY, Driveshaft (BLACK)
(POWER TRIM) -
11593-8189A11 HOUSING ASSEMBLY, Driveshaft (GRAY)
(POWER TRIM)HOUSING ASSEMBLY, Driveshaft (GRAY)
(POWER TRIM) -
219-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
316-8M0022145 STUD, (.375-16/.375-24 x 1.750), DRIVE SHAFT HOUSINGSTUD, (.375-16/.375-24 x 1.750), DRIVE SHAFT HOUSING
-
416-57935 STUD, DRIVE SHAFT HOUSING (3")STUD, DRIVE SHAFT HOUSING (3")
-
512-65791 WASHER, GEAR HOUSING STUDS (7/16")WASHER, GEAR HOUSING STUDS (7/16")
-
611-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING STUDSNUT, (.437-20) Stainless Steel, GEAR HOUSING STUDS
-
7923373 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
896401 SEAL, UPPER MOUNTSEAL, UPPER MOUNT
-
912-27727 WASHER, UPPER MOUNT BOLT (37/64 I.D.)WASHER, UPPER MOUNT BOLT (37/64 I.D.)
-
1012-66966 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
1112-30514 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1211-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLTNUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
-
1387883 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
1410-76630 SCREW, (.250-20 x 1.00), UPPER ,MOUNT COVERSCREW, (.250-20 x 1.00), UPPER ,MOUNT COVER
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREWWASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT COVER SCREW
-
1638157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
1738158 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
1838154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
1910-48408 SCREW, (#10-16 x .500), RETAINING STRIPSCREW, (#10-16 x .500), RETAINING STRIP
-
20695431 TUBE, EXHAUST
(SHORT SHAFT)TUBE, EXHAUST
(SHORT SHAFT) -
20695441 TUBE, EXHAUST
(LONG SHAFT)TUBE, EXHAUST
(LONG SHAFT) -
2132-37727 TUBE, WATER INLET
(SHORT SHAFT)TUBE, WATER INLET
(SHORT SHAFT) -
2132-45679 TUBE, WATER INLET
(LONG SHAFT)TUBE, WATER INLET
(LONG SHAFT) -
2211-64809 NUT, POWERHEAD STUDS (5/16")NUT, POWERHEAD STUDS (5/16")
-
2375304T1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2410-75284 SCREW, (.500-20 x 5.500), LOWER MOUNT SCREW
(NON POWER TRIM)SCREW, (.500-20 x 5.500), LOWER MOUNT SCREW
(NON POWER TRIM) -
2410-43426 SCREW, LOWER MOUNT SCREW
(POWER TRIM)SCREW, LOWER MOUNT SCREW
(POWER TRIM) -
2512-28051 WASHER, LOWER MOUNT SCREW (Use where Applicable)WASHER, LOWER MOUNT SCREW (Use where Applicable)
-
2612-28053 WASHER, RUBBER - LOWER MOUNT SCREW (Use where Applicable)WASHER, RUBBER - LOWER MOUNT SCREW (Use where Applicable)
-
2712-30119 WASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREWWASHER, (.875 Inch Outside Diameter), LOWER MOUNT SCREW
-
2811-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2969592F1 CLAMP, LOWER MOUNTCLAMP, LOWER MOUNT
-
3010-29256 SCREW, (.312-18 x .875), LOWER MOUNT CLAMPSCREW, (.312-18 x .875), LOWER MOUNT CLAMP
-
3124-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
3235474T COVER, LOWER MOUNT CLAMP
(BLACK)COVER, LOWER MOUNT CLAMP
(BLACK) -
3235474F2 COVER, Lower Mount Clamp, LOWER MOUNT CLAMP
(GRAY)COVER, Lower Mount Clamp, LOWER MOUNT CLAMP
(GRAY) -
3310-87884 SCREW, (#12-14 x .920), COVER TO LOWER MOUNT CLAMPSCREW, (#12-14 x .920), COVER TO LOWER MOUNT CLAMP
-
3411-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
3588238A10 CABLE ASSEMBLY, Ground, GROUNDCABLE ASSEMBLY, Ground, GROUND
-
3623-23651 SLEEVE, (1.625), WATER INLET TUBESLEEVE, (1.625), WATER INLET TUBE
