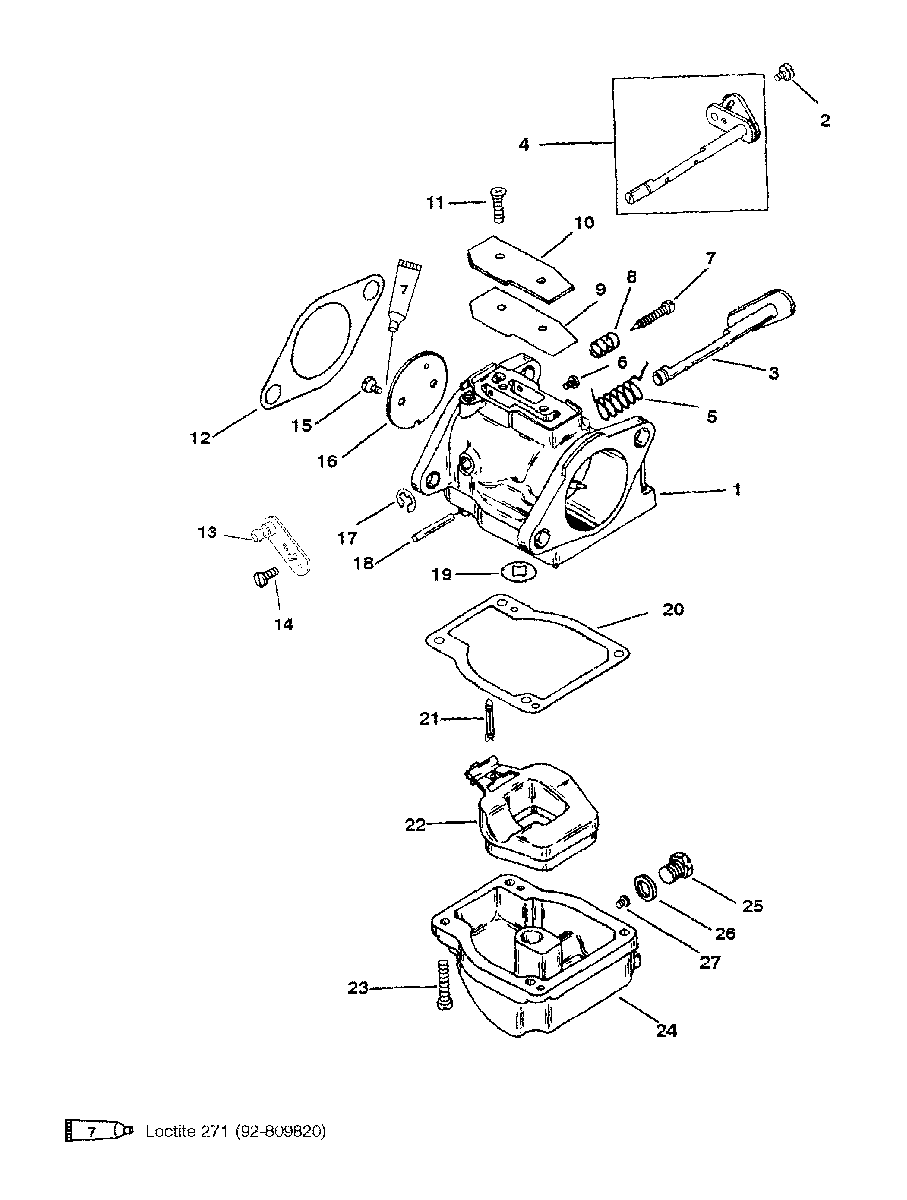

CARBURETOR для Mercury - 50 (3 CYL.) 0G290585 THRU 0G589999
-
№АртикулНазвание
-
13301-821679T17 CARBURETOR
(TOP) 50 - WME-43CARBURETOR
(TOP) 50 - WME-43 -
13301-821679T18 CARBURETOR
(CENTER) 50 - WME-43CARBURETOR
(CENTER) 50 - WME-43 -
13301-821679T19 CARBURETOR
(BOTTOM) 50 - WME-43CARBURETOR
(BOTTOM) 50 - WME-43 -
13301-821946A45 CARBURETOR
(TOP) 55/60 SEAPRO/MARATHON WME-44CARBURETOR
(TOP) 55/60 SEAPRO/MARATHON WME-44 -
13301-821946A46 CARBURETOR
(CENTER) 55/60 SEAPRO/MARATHON WME-44CARBURETOR
(CENTER) 55/60 SEAPRO/MARATHON WME-44 -
13301-821946A47 CARBURETOR
(BOTTOM) 55/60 SEAPRO/MARATHON WME-44CARBURETOR
(BOTTOM) 55/60 SEAPRO/MARATHON WME-44 -
13301-821946T42 CARBURETOR
(TOP) 60 - WME-45 FORMULA/MAGNUM III BEACHING/PONTOON/BIG FOOTCARBURETOR
(TOP) 60 - WME-45 FORMULA/MAGNUM III BEACHING/PONTOON/BIG FOOT -
13301-821946T43 CARBURETOR
(CENTER) 60 - WME-45 FORMULA/MAGNUM III BEACHING/PONTOON/BIG FOOTCARBURETOR
(CENTER) 60 - WME-45 FORMULA/MAGNUM III BEACHING/PONTOON/BIG FOOT -
13301-821946T44 CARBURETOR
(BOTTOM) 60 - WME-45 FORMULA/MAGNUM III BEACHING/PONTOON/BIG FOOTCARBURETOR
(BOTTOM) 60 - WME-45 FORMULA/MAGNUM III BEACHING/PONTOON/BIG FOOT -
21395-823634 SCREW-THROTTLE ADJUSTMENT (UPPER/BOTTOM)SCREW-THROTTLE ADJUSTMENT (UPPER/BOTTOM)
-
31395-823632 THROTTLE SHAFT
(UPPER) 50/60THROTTLE SHAFT
(UPPER) 50/60 -
41395-823633 THROTTLE SHAFT
(CENTER) 50/60THROTTLE SHAFT
(CENTER) 50/60 -
41395-823636 THROTTLE SHAFT
(BOTTOM) 50/60THROTTLE SHAFT
(BOTTOM) 50/60 -
31395-823632 THROTTLE SHAFT (UPPER/BOTTOM)
WME-44THROTTLE SHAFT (UPPER/BOTTOM)
WME-44 -
41395-823633 THROTTLE SHAFT (CENTER)
WME-44THROTTLE SHAFT (CENTER)
WME-44 -
590-8M0143356 SPRING-THROTTLE RETURNSPRING-THROTTLE RETURN
-
61395-6247 VENT JET (.090 - 50/60)VENT JET (.090 - 50/60)
-
790-8M0143356 IDLE NEEDLEIDLE NEEDLE
-
890-8M0143356 SPRING-IDLE NEEDLESPRING-IDLE NEEDLE
-
990-8M0143356 GASKET-COVER PLATEGASKET-COVER PLATE
-
101395-811221 COVER PLATECOVER PLATE
-
111395-811220 SCREW-COVER PLATESCREW-COVER PLATE
-
1227-8144461 GASKET-FLANGEGASKET-FLANGE
-
131395-8113522 LEVER-OIL PUMP (WME43/45 - BOTTOM)LEVER-OIL PUMP (WME43/45 - BOTTOM)
-
141395-8086121 SCREW-OIL PUMP LEVER (WME43/45 - BOTTOM)SCREW-OIL PUMP LEVER (WME43/45 - BOTTOM)
-
1510-F10155 SCREW-THROTTLE VALVESCREW-THROTTLE VALVE
-
1697243 THROTTLE VALVETHROTTLE VALVE
-
1790-8M0143356 RETAINING RINGRETAINING RING
-
18F10064 FLOAT SHAFTFLOAT SHAFT
-
1990-8M0143356 GASKET-NOZZLE WELLGASKET-NOZZLE WELL
-
2090-8M0143356 GASKET-FUEL BOWLGASKET-FUEL BOWL
-
2110-95951 INLET NEEDLE VALVEINLET NEEDLE VALVE
-
221395-9594 FLOATFLOAT
-
231395-808612 SCREW-FUEL BOWLSCREW-FUEL BOWL
-
241395-811695 FUEL BOWL
(UPPER)FUEL BOWL
(UPPER) -
241395-811693 FUEL BOWL
(CENTER/BOTTOM)FUEL BOWL
(CENTER/BOTTOM) -
251395-811694 PLUG KITPLUG KIT
-
2690-8M0143356 SEAL-BOWL DRAINSEAL-BOWL DRAIN
-
271395-6246 MAIN FUEL JET
(.048 - 50)MAIN FUEL JET
(.048 - 50) -
271395-6487 MAIN JET
(.060-55/60 SEAPRO/MARATHON/PONTOON)MAIN JET
(.060-55/60 SEAPRO/MARATHON/PONTOON) -
271399-4217 MAIN FUEL JET
(.062 - 60)MAIN FUEL JET
(.062 - 60) -
-27-812867A97 GASKET SETGASKET SET
-
-1395-8236354 REPAIR KITREPAIR KIT
-
-1395-8112231 CARB GASKET KITCARB GASKET KIT
