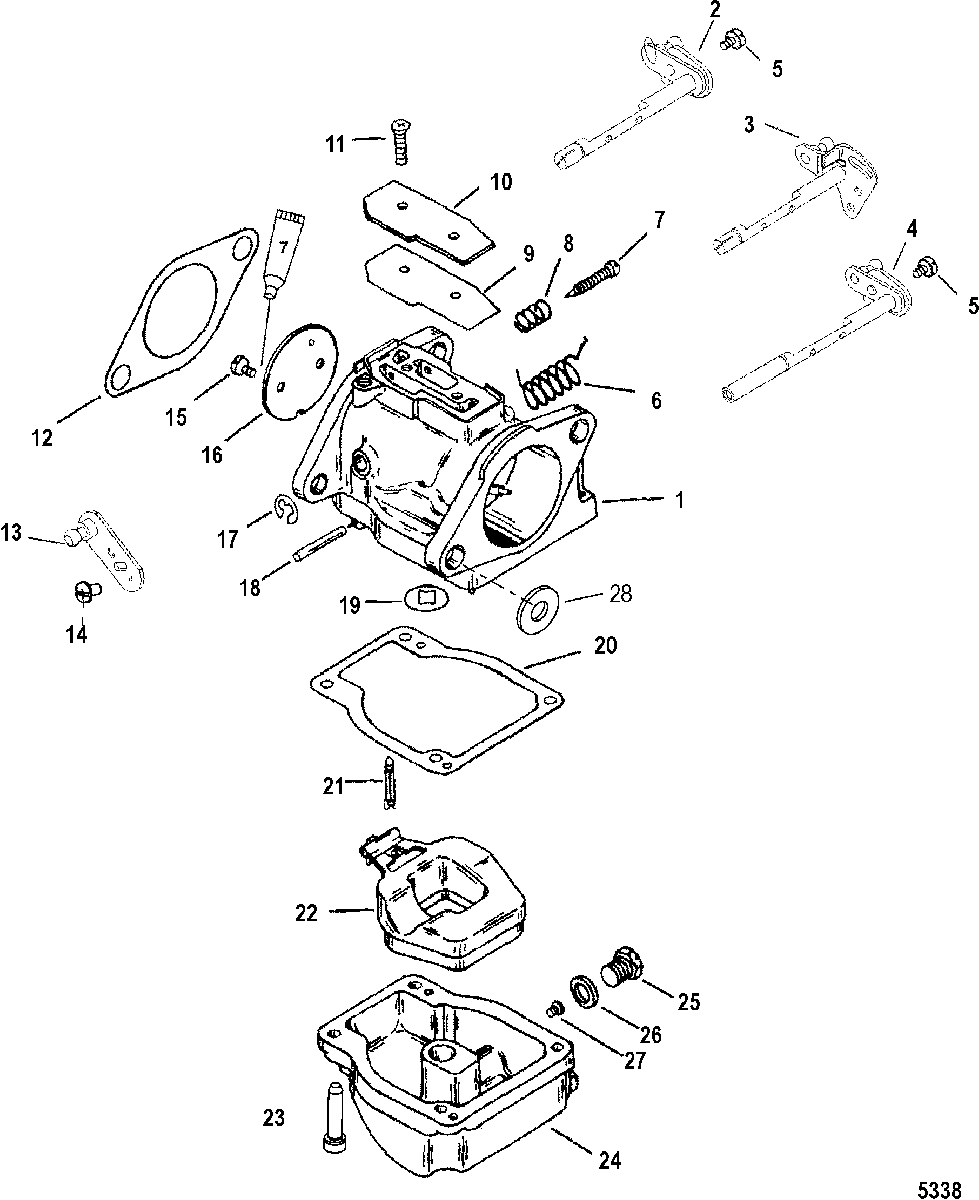

CARBURETOR для Mercury - 50 (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
13301-823799T34 CARBURETOR
(TOP) ELECTRIC 40 - WME-53 1-2-3CARBURETOR
(TOP) ELECTRIC 40 - WME-53 1-2-3 -
13301-823799T35 CARBURETOR
(CENTER) ELECTRIC 40 - WME-53 1-2-3CARBURETOR
(CENTER) ELECTRIC 40 - WME-53 1-2-3 -
13301-823799T36 CARBURETOR
(BOTTOM) ELECTRIC 40 - WME-53 1-2-3CARBURETOR
(BOTTOM) ELECTRIC 40 - WME-53 1-2-3 -
13301-823799T31 CARBURETOR
(TOP) MANUAL 40 - WME-69 1-2-3CARBURETOR
(TOP) MANUAL 40 - WME-69 1-2-3 -
13301-823799T32 CARBURETOR
(CENTER) MANUAL 40 - WME-69 1-2-3CARBURETOR
(CENTER) MANUAL 40 - WME-69 1-2-3 -
13301-823799A33 CARBURETOR
(BOTTOM) MANUAL 40 - WME-69 1-2-3CARBURETOR
(BOTTOM) MANUAL 40 - WME-69 1-2-3 -
13301-824902T28 CARBURETOR
(TOP) 50 - WME-68 1-2-3CARBURETOR
(TOP) 50 - WME-68 1-2-3 -
13301-824902T29 CARBURETOR
(CENTER) 50 - WME-68 1-2-3CARBURETOR
(CENTER) 50 - WME-68 1-2-3 -
13301-824902T30 CARBURETOR
(BOTTOM) 50 - WME-68 1-2-3CARBURETOR
(BOTTOM) 50 - WME-68 1-2-3 -
21395-823632 SHAFT, Throttle
(UPPER) WME-53/68SHAFT, Throttle
(UPPER) WME-53/68 -
31395-823633 SHAFT, Throttle
(CENTER) WME-53/68SHAFT, Throttle
(CENTER) WME-53/68 -
41395-823636 SHAFT, Throttle
(BOTTOM) WME-53/68SHAFT, Throttle
(BOTTOM) WME-53/68 -
21395-823632 SHAFT, Throttle
(UPPER/BOTTOM) WME-69SHAFT, Throttle
(UPPER/BOTTOM) WME-69 -
31395-823633 SHAFT, Throttle
(CENTER) WME-69SHAFT, Throttle
(CENTER) WME-69 -
51395-823634 SCREW
(UPPER/BOTTOM)SCREW
(UPPER/BOTTOM) -
6NSS NOT SOLD SEPARATE, Spring-Throttle ReturnNOT SOLD SEPARATE, Spring-Throttle Return
-
7NSS NOT SOLD SEPARATE, Idle NeedleNOT SOLD SEPARATE, Idle Needle
-
8NSS NOT SOLD SEPARATE, Spring-Idle NeedleNOT SOLD SEPARATE, Spring-Idle Needle
-
9NSS NOT SOLD SEPARATE, Gasket-cover PlateNOT SOLD SEPARATE, Gasket-cover Plate
-
101395-811221 COVER PLATECOVER PLATE
-
111395-811220 SCREW, Cover PlateSCREW, Cover Plate
-
1227-8144461 GASKET, FlangeGASKET, Flange
-
131395-8113522 LEVER, Oil Pump
BOTTOM - WME-53/68LEVER, Oil Pump
BOTTOM - WME-53/68 -
141395-8086121 SCREW, Lever Retainer
BOTTOM - WME-53/68SCREW, Lever Retainer
BOTTOM - WME-53/68 -
1510-F10155 SCREW, Throttle ValveSCREW, Throttle Valve
-
161395-97245 VALVE, ThrottleVALVE, Throttle
-
17NSS NOT SOLD SEPARATE, Retaining RingNOT SOLD SEPARATE, Retaining Ring
-
18F10064 SHAFTSHAFT
-
191395-808738 GASKETGASKET
-
20NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
2110-95951 VALVE, Inlet NeedleVALVE, Inlet Needle
-
221395-9594 FLOATFLOAT
-
231395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
241395-811693 BOWL, Fuel
(WME-53/68)BOWL, Fuel
(WME-53/68) -
241395-811695 BOWL, Fuel
(UPPER) WME-69BOWL, Fuel
(UPPER) WME-69 -
241395-811693 BOWL, Fuel
(CENTER/BOTTOM) WME-69BOWL, Fuel
(CENTER/BOTTOM) WME-69 -
251395-811694 PLUG KIT
WME-69PLUG KIT
WME-69 -
261395-802731 SEAL (CONSISTS OF 4 SEALS)SEAL (CONSISTS OF 4 SEALS)
-
271395-7394 JET, (.044)
(WME-53/69)JET, (.044)
(WME-53/69) -
271395-6359 JET, (.052)
(WME-68)JET, (.052)
(WME-68) -
-1395-8236354 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-1395-8112231 GASKET SET, CarburetorGASKET SET, Carburetor
-
-27-828553A97 GASKET SETGASKET SET
