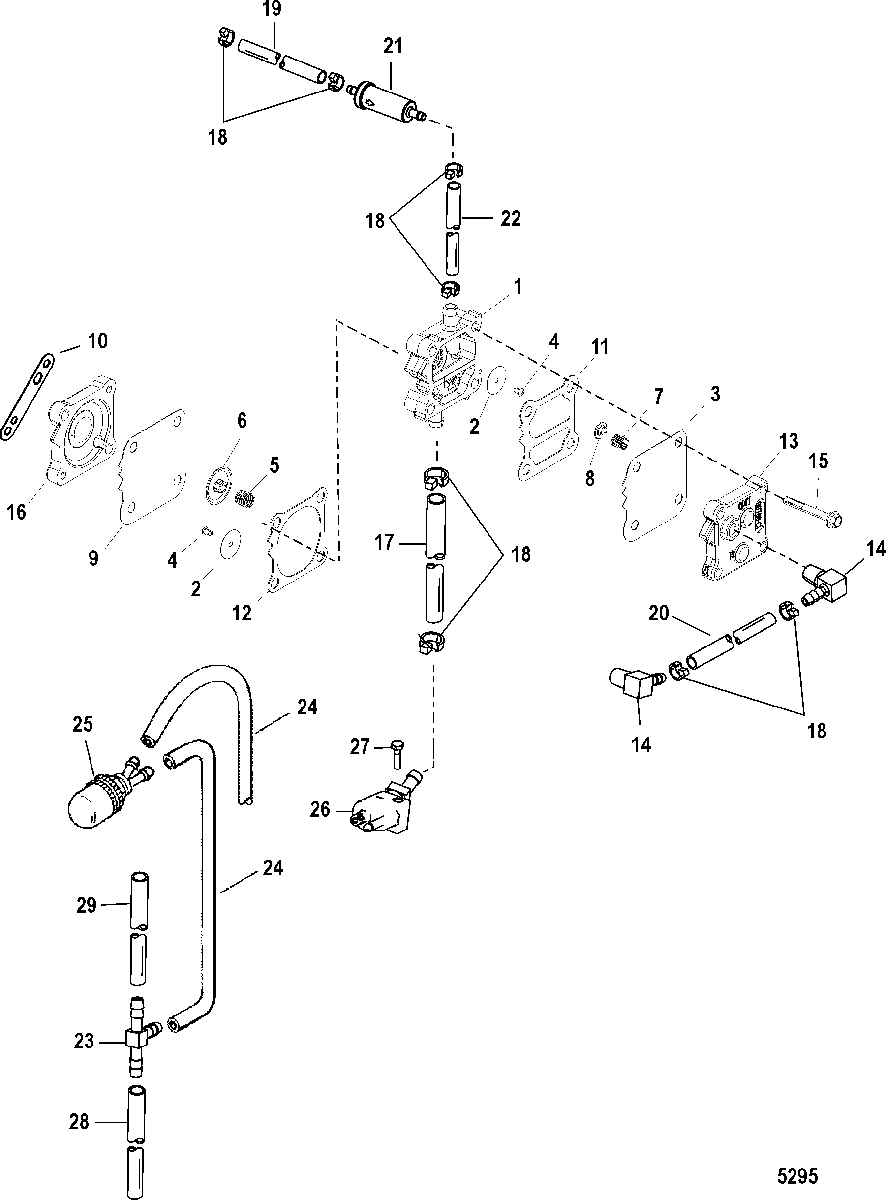

Fuel Pump(Manual) для Mercury - 50 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
-14360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1NSS NOT SOLD SEPARATE
(Fuel Pump)NOT SOLD SEPARATE
(Fuel Pump) -
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE
(Diaphragm Kit)NOT SOLD SEPARATE
(Diaphragm Kit) -
4NSS NOT SOLD SEPARATE
(Retainer)NOT SOLD SEPARATE
(Retainer) -
5NSS NOT SOLD SEPARATE
(Spring)NOT SOLD SEPARATE
(Spring) -
6NSS NOT SOLD SEPARATE
(Cap)NOT SOLD SEPARATE
(Cap) -
7NSS NOT SOLD SEPARATE
(Diaphragm)NOT SOLD SEPARATE
(Diaphragm) -
8NSS NOT SOLD SEPARATE
(Cap)NOT SOLD SEPARATE
(Cap) -
9NSS NOT SOLD SEPARATE
(Diaphragm)NOT SOLD SEPARATE
(Diaphragm) -
1027-987691 GASKETGASKET
-
11NSS NOT SOLD SEPARATE
(Gasket-Boost)NOT SOLD SEPARATE
(Gasket-Boost) -
12NSS NOT SOLD SEPARATE
(Gasket-Pulse)NOT SOLD SEPARATE
(Gasket-Pulse) -
13987752 PLATEPLATE
-
1422-433351 CONNECTOR, (90 Degree) With VibrasealCONNECTOR, (90 Degree) With Vibraseal
-
1510-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1510-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
16144303 BASEBASE
-
1732-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (22 Inch)TUBING, (.312) (70.00 Inches Bulk) (22 Inch)
-
1854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1932-830761 LINE, FuelLINE, Fuel
-
2032-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.25 Inch Length)
-
2135-816296Q2 FILTER, FuelFILTER, Fuel
-
2232-831949 HOSEHOSE
-
2322-59169003 FITTING, TeeFITTING, Tee
-
2432-892024122 TUBING, (20.00 Feet Bulk) (Cut to 9.50 Inch Length)TUBING, (20.00 Feet Bulk) (Cut to 9.50 Inch Length)
-
25858763 PRIMER BULBPRIMER BULB
-
2622-816856T01 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
2710-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2832-892024122 TUBING, (20.00 Feet Bulk) (Cut to 5.50 Inch Length)5-1/2 Inch)TUBING, (20.00 Feet Bulk) (Cut to 5.50 Inch Length)5-1/2 Inch)
-
2932-892024122 TUBING, (20.00 Feet Bulk) (Cut to 1.50 Inch Length)1-1/2 Inch)TUBING, (20.00 Feet Bulk) (Cut to 1.50 Inch Length)1-1/2 Inch)
-
-852067T98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-828553A97 GASKET SETGASKET SET
