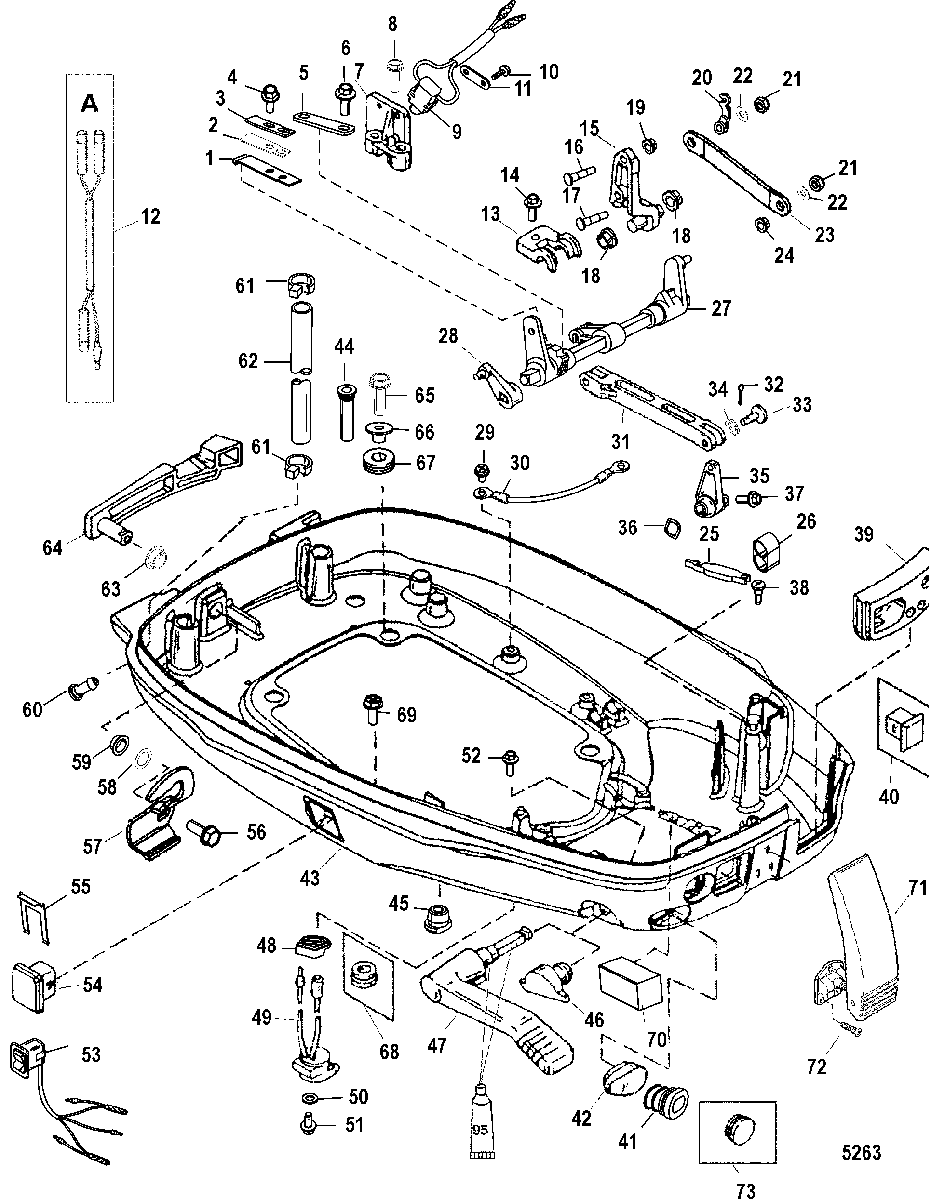

Bottom Cowl для Mercury - 50 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
124-824992 SPRING, DetentSPRING, Detent
-
224-824993 SPRING, BackingSPRING, Backing
-
3824994 SPRING, PlateSPRING, Plate
-
410-82191916 SCREW, (M5 x 14)SCREW, (M5 x 14)
-
58280471 STRAPSTRAP
-
610-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
78M0039049 CLAMPCLAMP
-
810-40011130 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
987-8M0052927 SWITCH
(Electric Handle)SWITCH
(Electric Handle) -
1010-88075020 SCREW, (M3 x 20)
(Electric Handle)SCREW, (M3 x 20)
(Electric Handle) -
11824923 PLATE
(Electric Handle)PLATE
(Electric Handle) -
1284-824934A3 HARNESS ASSEMBLY
(Electric Handle)HARNESS ASSEMBLY
(Electric Handle) -
138M0036802 CAP
(Non-Handle)CAP
(Non-Handle) -
1410-4006731 SCREW, (M6 x 16)
(Non-Handle)SCREW, (M6 x 16)
(Non-Handle) -
158M0041741 LEVER
(Non-Handle)LEVER
(Non-Handle) -
1642927 INSERT
(Non-Handle)INSERT
(Non-Handle) -
1717-8224561 PIN
(Non-Handle)PIN
(Non-Handle) -
1823-26954 BUSHING
(Non-Handle)BUSHING
(Non-Handle) -
1923-48475 BUSHING
(Non-Handle)BUSHING
(Non-Handle) -
20822459 RETAINER
(Non-Handle)RETAINER
(Non-Handle) -
2111-401386 NUT, (M6) Stainless Steel
(Non-Handle)NUT, (M6) Stainless Steel
(Non-Handle) -
2212-69056 WASHER, (.255 x .620 x .030) Stainless Steel
(Non-Handle)WASHER, (.255 x .620 x .030) Stainless Steel
(Non-Handle) -
238224701 LINK, Shift
(Non-Handle)LINK, Shift
(Non-Handle) -
2423-48475 BUSHING
(Non-Handle)BUSHING
(Non-Handle) -
2598889 LATCH
(Non-Handle)LATCH
(Non-Handle) -
2639519 CUP
(Non-Handle)CUP
(Non-Handle) -
27821483A6 SHIFT SHAFT, HorizontalSHIFT SHAFT, Horizontal
-
28821487 LEVER, Interlock Actuating
(Manual)LEVER, Interlock Actuating
(Manual) -
2910-878607 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
3084-88807A28 CABLE ASSEMBLY, Black (7.50 Inch)CABLE ASSEMBLY, Black (7.50 Inch)
-
318M0037997 SHIFT ROD
(Handle)SHIFT ROD
(Handle) -
3218-210711 COTTER PIN
(Handle)COTTER PIN
(Handle) -
3317-8251851 PIN
(Handle)PIN
(Handle) -
3413-827418 LOCKWASHER
(Handle)LOCKWASHER
(Handle) -
35822011 LEVER, Shift
(Handle)LEVER, Shift
(Handle) -
3613-825273 WAVE WASHER
(Handle)WAVE WASHER
(Handle) -
3710-40011107 SCREW, (M5 x 16) Stainless Steel
(Handle)SCREW, (M5 x 16) Stainless Steel
(Handle) -
3810-42975 DRIVE SCREWDRIVE SCREW
-
3925-828462001 GROMMETGROMMET
-
4019-17230 PLUGPLUG
-
41822424001 SEAL, Throttle Cable
(Handle)SEAL, Throttle Cable
(Handle) -
4219-823874001 PLUG, Throttle Cable
(Non-Handle)PLUG, Throttle Cable
(Non-Handle) -
434023-828165A1 BOTTOM COWL
(Black)BOTTOM COWL
(Black) -
4421-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
4525-19565002 GROMMET
(Split-Power Trim)GROMMET
(Split-Power Trim) -
4525-19564001 GROMMET
(Non Power Trim)GROMMET
(Non Power Trim) -
4619-824076001 PLUG, Shift Lever
(Non-Handle)PLUG, Shift Lever
(Non-Handle) -
478214901 HANDLE
(Handle)HANDLE
(Handle) -
48823572001 SEAL, Warning Horn
(Manual Handle)SEAL, Warning Horn
(Manual Handle) -
4984-8M3001068 ALARM ASSEMBLY, Audio Warning
(Manual Handle)ALARM ASSEMBLY, Audio Warning
(Manual Handle) -
5012-4002316 WASHER
(Manual Handle)WASHER
(Manual Handle) -
5110-82239312 SCREW, (M5 x 12)
(Manual Handle)SCREW, (M5 x 12)
(Manual Handle) -
5210-40011107 SCREW, (M5 x 16) Stainless Steel
(Manual Handle)SCREW, (M5 x 16) Stainless Steel
(Manual Handle) -
5387-8M0042301 SWITCH ASSEMBLY
(Power Trim)SWITCH ASSEMBLY
(Power Trim) -
54812830T01 PLUG, Trim Switch
(Non Power Trim)PLUG, Trim Switch
(Non Power Trim) -
558M0032848 RETAINERRETAINER
-
5610-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
57828464 CAM, LatchCAM, Latch
-
5813-12134 WASHER, WaveWASHER, Wave
-
5923-812707 BUSHINGBUSHING
-
6022-813613 FITTINGFITTING
-
6154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
6232-7568058 HOSE, (15.00 Inches)HOSE, (15.00 Inches)
-
6323-812707 BUSHINGBUSHING
-
64823573F1 LEVER, Cowl LatchLEVER, Cowl Latch
-
6510-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
6623-822003 BUSHINGBUSHING
-
6725-822002 GROMMETGROMMET
-
6819-824473 PLUG, Warning Alarm
(Electric)PLUG, Warning Alarm
(Electric) -
6910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
708M0043169 BUMPERBUMPER
-
71828463 LATCH, FrontLATCH, Front
-
7210-4001987 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
7325-16226 GROMMETGROMMET
