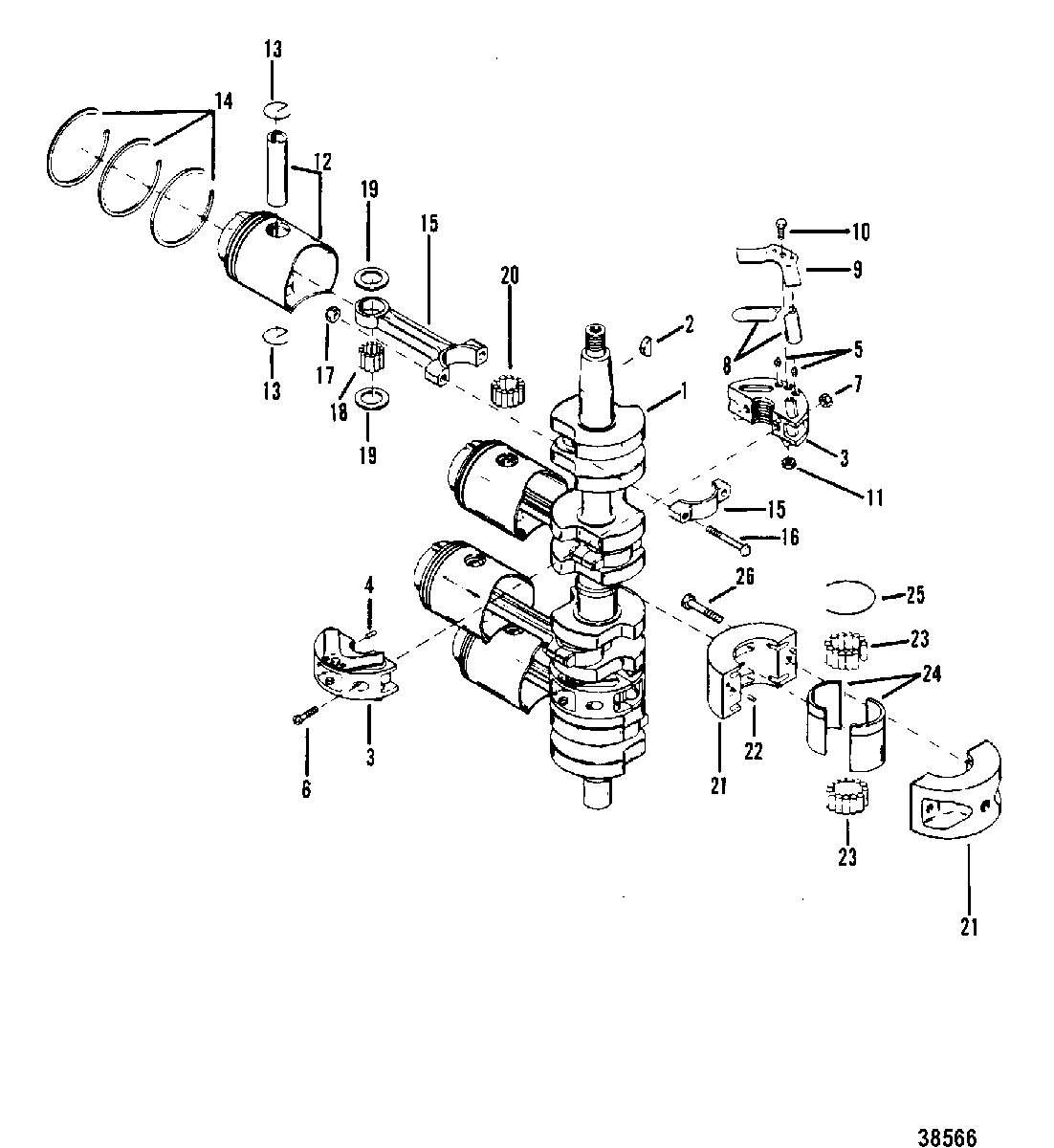

CRANKSHAFT, PISTONS, AND CONNECTING RODS для Mercury - 50 (4 CYL.) 8063985 & Up
-
№АртикулНазвание
-
1459-9075T CRANKSHAFTCRANKSHAFT
-
228-20094 KEY, Woodruff, CRANKSHAFTKEY, Woodruff, CRANKSHAFT
-
3534-3267T25 BEARING ASSEMBLY, Main (VALVE TYPE)BEARING ASSEMBLY, Main (VALVE TYPE)
-
417-20032 PIN, Dowel, MAIN BEARINGPIN, Dowel, MAIN BEARING
-
517-65855 PIN, Dowel, REED LOCATINGPIN, Dowel, REED LOCATING
-
610-45775 SCREW, (#12-28 x .560) , MAIN BEARINGSCREW, (#12-28 x .560) , MAIN BEARING
-
711-45774 NUT, MAIN BEARING SCREWNUT, MAIN BEARING SCREW
-
834-88498A1 REED SET, MATCHEDREED SET, MATCHED
-
934-822839 STOP, ReedSTOP, Reed
-
1010-77280 SCREW, (.190-32 x .560), REED STOPSCREW, (.190-32 x .560), REED STOP
-
1111-20110 NUT, (#10-32), REED STOP SCREWNUT, (#10-32), REED STOP SCREW
-
12780-9229A7 PISTON ASSEMBLYPISTON ASSEMBLY
-
12780-9229A10 PISTON ASSEMBLY (.015 OVERSIZE)PISTON ASSEMBLY (.015 OVERSIZE)
-
12780-9229A11 PISTON ASSEMBLY (.030 OVERSIZE)PISTON ASSEMBLY (.030 OVERSIZE)
-
1340-828119 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1439-27841A12 RING SET, Piston - StandardRING SET, Piston - Standard
-
1439-28616A12 RING SET, Piston (.015 OVERSIZE)RING SET, Piston (.015 OVERSIZE)
-
1439-89822A12 RING SET, Piston - .030 OversizeRING SET, Piston - .030 Oversize
-
15632-7621A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1610-45379 SCREW, CAP TO ROD - WITH NUTSCREW, CAP TO ROD - WITH NUT
-
1610-91012 SCREW, (.250-28 Special), CAP TO ROD - WITHOUT NUTSCREW, (.250-28 Special), CAP TO ROD - WITHOUT NUT
-
1711-20061 NUT, ROD SCREW - WITH NUTNUT, ROD SCREW - WITH NUT
-
1829-20063 BEARING, Needle, PISTON PINBEARING, Needle, PISTON PIN
-
1912-47275 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
2029-20046T BEARING, Needle, CRANKPINBEARING, Needle, CRANKPIN
-
21547-7060A2 BEARING ASSEMBLY, Center MainBEARING ASSEMBLY, Center Main
-
2217-20032 PIN, Dowel, CENTER MAIN BEARINGPIN, Dowel, CENTER MAIN BEARING
-
2329-714221 BEARING, NeedleBEARING, Needle
-
2426113T RACE, OUTERRACE, OUTER
-
2553-26933 RING, Snap, OUTER RACERING, Snap, OUTER RACE
-
2610-76630 SCREW, (.250-20 x 1.00), CENTER MAIN BEARINGSCREW, (.250-20 x 1.00), CENTER MAIN BEARING
