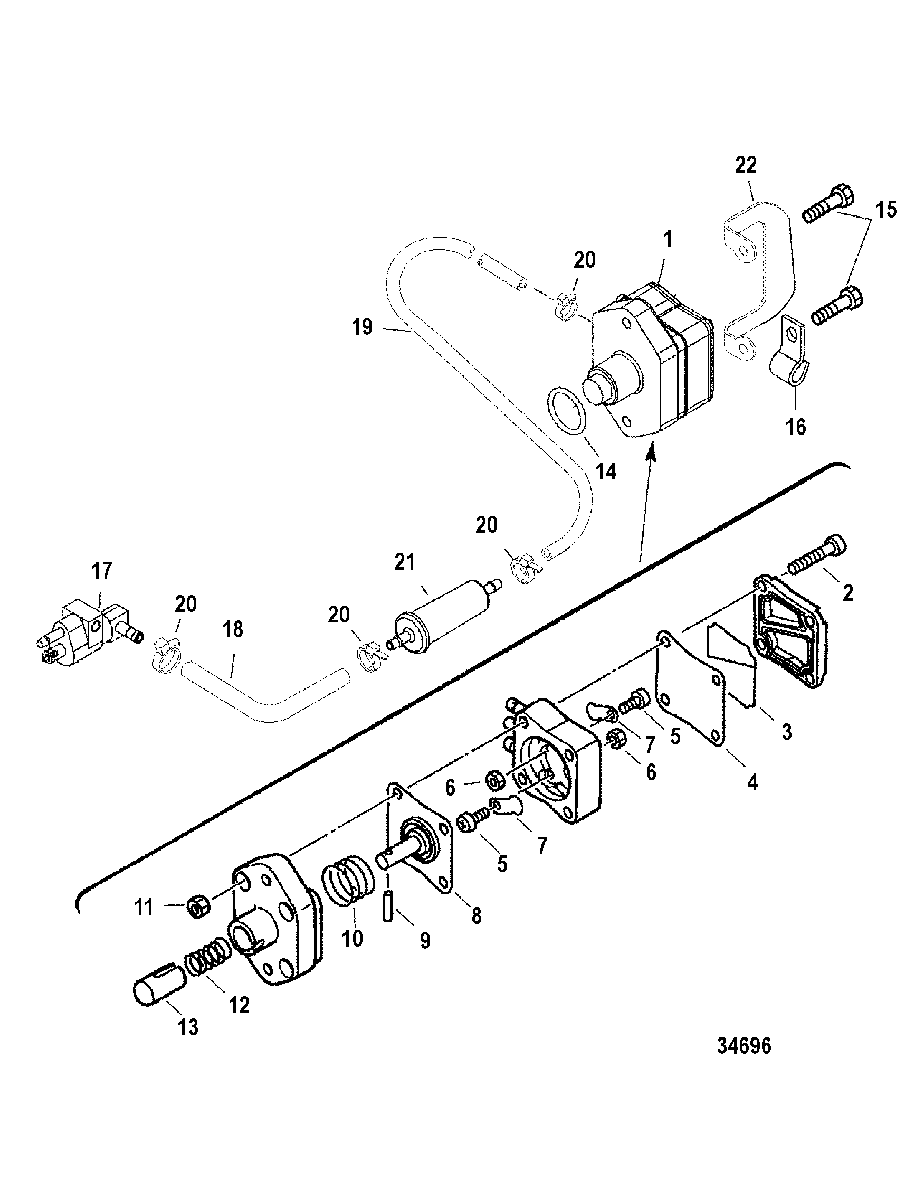

Fuel Pump для Mercury - 50 (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
1826398T3 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
210-809564 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
3809565 COVERCOVER
-
48095611 DIAPHRAGMDIAPHRAGM
-
510-41889M SCREW, (M3 x 5)SCREW, (M3 x 5)
-
611-82537M NUTNUT
-
721-41888M CHECK VALVECHECK VALVE
-
88095612 DIAPHRAGMDIAPHRAGM
-
917-8095661 PINPIN
-
1024-809562 SPRINGSPRING
-
1111-82388M NUT, (M5)NUT, (M5)
-
1224-8095621 SPRINGSPRING
-
138095631 PLUNGERPLUNGER
-
1425-8M0052669 O-RINGO-RING
-
1510-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1654-55098 J CLIPJ CLIP
-
1722-816856A4 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
-25-16524 O-RING, Fuel ConnectorO-RING, Fuel Connector
-
1832-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 19 InchesHOSE, (57.00 Inches Bulk), Cut to 19 Inches
-
1932-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 16 InchesHOSE, (57.00 Inches Bulk), Cut to 16 Inches
-
2054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2135-816296Q03 FILTER, FuelFILTER, Fuel
-
228M0007776 DEFLECTOR, CowlDEFLECTOR, Cowl
-
-27-832013A96 GASKET SETGASKET SET
