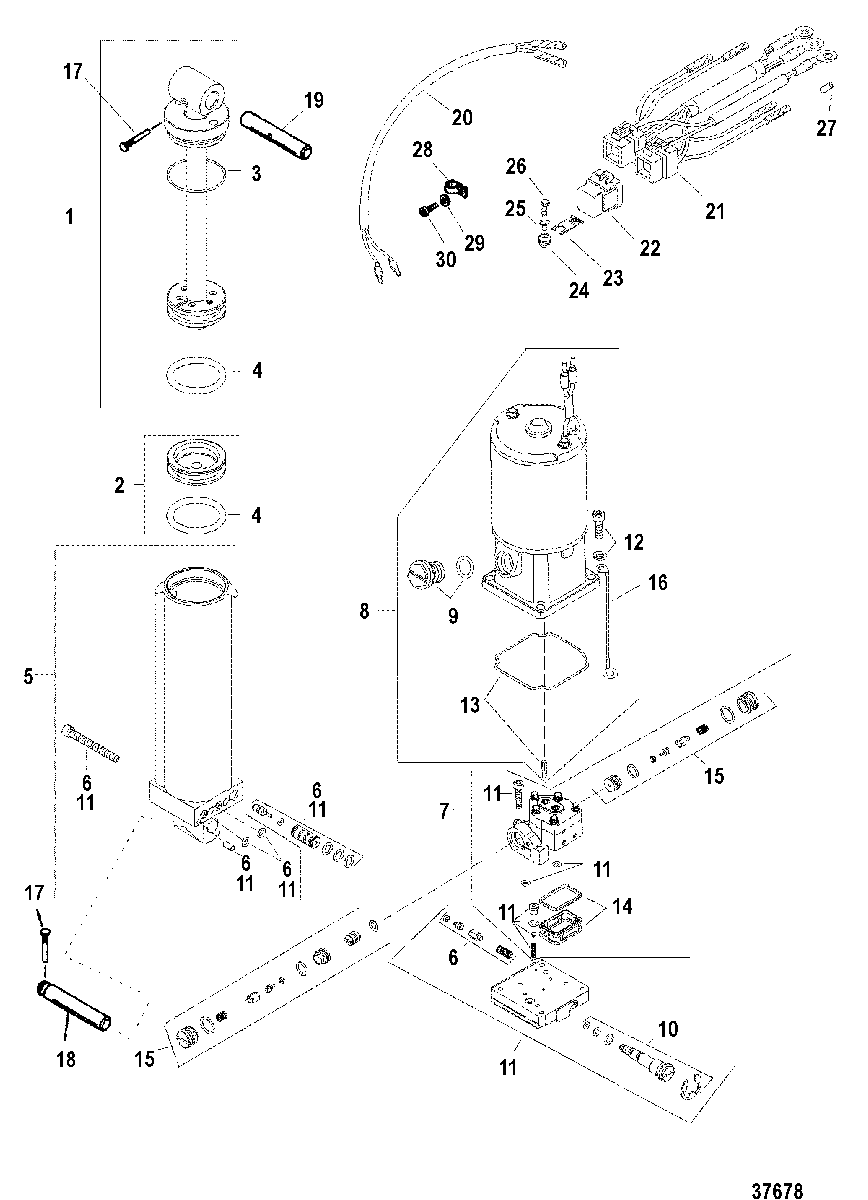

POWER TRIM COMPONENTS(BIGFOOT) для Mercury - 50 (4-STROKE) 9944807 THRU 0P016999
-
№АртикулНазвание
-
-8M0055011 PUMP ASSEMBLY, Power TrimPUMP ASSEMBLY, Power Trim
-
1855833 SHOCK ROD KITSHOCK ROD KIT
-
2810776A1 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
325-893902A01 O-RING KIT, RebuildO-RING KIT, Rebuild
-
4N.S.S. Not Sold Separate, O-RingNot Sold Separate, O-Ring
-
58M0055016 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
68M0090404 VALVE KIT, Trim LimitVALVE KIT, Trim Limit
-
78M0055019 PUMP ASSEMBLYPUMP ASSEMBLY
-
8893907A02 MOTOR KITMOTOR KIT
-
922-8134351 PLUGPLUG
-
10893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
118M0055018 MANIFOLD KITMANIFOLD KIT
-
1210-809876A1 SCREW KIT (MOTOR)SCREW KIT (MOTOR)
-
13809877A1 DRIVESHAFT/SEAL KITDRIVESHAFT/SEAL KIT
-
1435-893912A02 FILTER KITFILTER KIT
-
15893913A02 POPPET KITPOPPET KIT
-
1688238A18 CABLE ASSEMBLYCABLE ASSEMBLY
-
-25-8M0089947 O-RING KIT
(COMPLETE TRIM)O-RING KIT
(COMPLETE TRIM) -
1717-821539 PIN, TrilobePIN, Trilobe
-
1817-19607 PINPIN
-
1917-822869001 PINPIN
-
2084-852539A1 HARNESS ASSEMBLY, AdaptorHARNESS ASSEMBLY, Adaptor
-
-84-826802A15 HARNESS/RELAY ASSEMBLYHARNESS/RELAY ASSEMBLY
-
2184-826802A12 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
22882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
23828102 BRACKETBRACKET
-
2425-818967 GROMMETGROMMET
-
2523-818968 BUSHINGBUSHING
-
2610-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2713541 PLUG, MalePLUG, Male
-
2854-22740 CLIPCLIP
-
298M0084613 C WASHERC WASHER
-
3010-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
