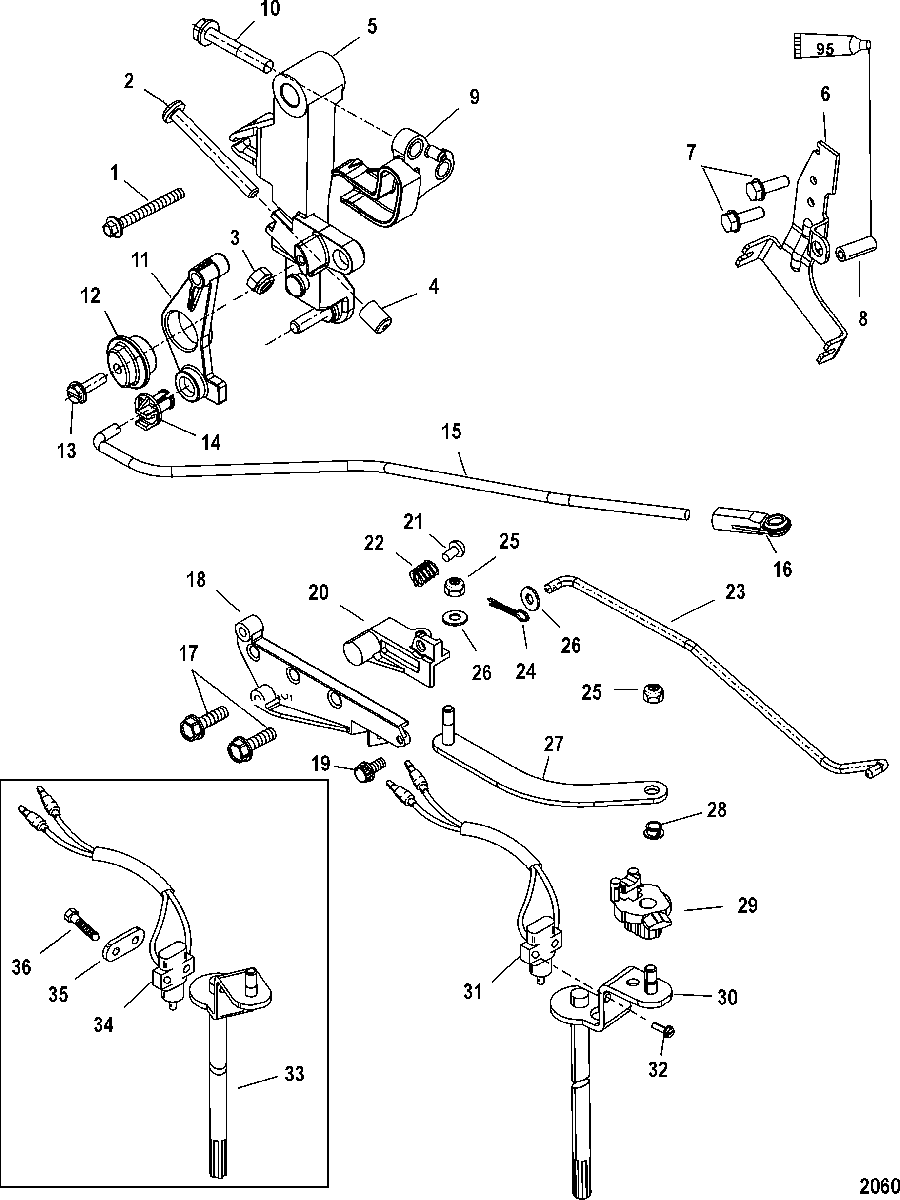

Linkage(Handle) для Mercury - 50 EFI (4 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
6830294T3 BRACKET (Handle)BRACKET (Handle)
-
710-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
823-825078 BUSHINGBUSHING
-
9879865 CAM, ThrottleCAM, Throttle
-
1010-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
11883006A1 ARM ASSEMBLY, ThrottleARM ASSEMBLY, Throttle
-
1223-883005 BUSHINGBUSHING
-
1310-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1423-932481 BUSHINGBUSHING
-
15893775A01 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
168M0084742 SOCKETSOCKET
-
1710-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
18858245 SHIFT GUIDESHIFT GUIDE
-
1910-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
20858246 SHIFT SLIDESHIFT SLIDE
-
218M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
22NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
23858247 SHIFT RODSHIFT ROD
-
2418-210711 COTTER PINCOTTER PIN
-
2511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
27858248 SHIFT LINKSHIFT LINK
-
2823-48475 BUSHINGBUSHING
-
2923-850165 BUSHINGBUSHING
-
30850166T06 LEVER ASSEMBLY, Shift Shaft
(Design II)LEVER ASSEMBLY, Shift Shaft
(Design II) -
3187-814281T10 SWITCH
(DesignII)SWITCH
(DesignII) -
3210-8214281 SCREW, (#10-16 x .625)
(Design II)SCREW, (#10-16 x .625)
(Design II) -
33850166T2 LEVER ASSEMBLY, Shift Shaft
(Design I)LEVER ASSEMBLY, Shift Shaft
(Design I) -
3487-8M0052927 SWITCH
(Design I)SWITCH
(Design I) -
35824923 PLATE
(Design I)PLATE
(Design I) -
3610-88075020 SCREW, (M3 x 20)
(Design I)SCREW, (M3 x 20)
(Design I)
