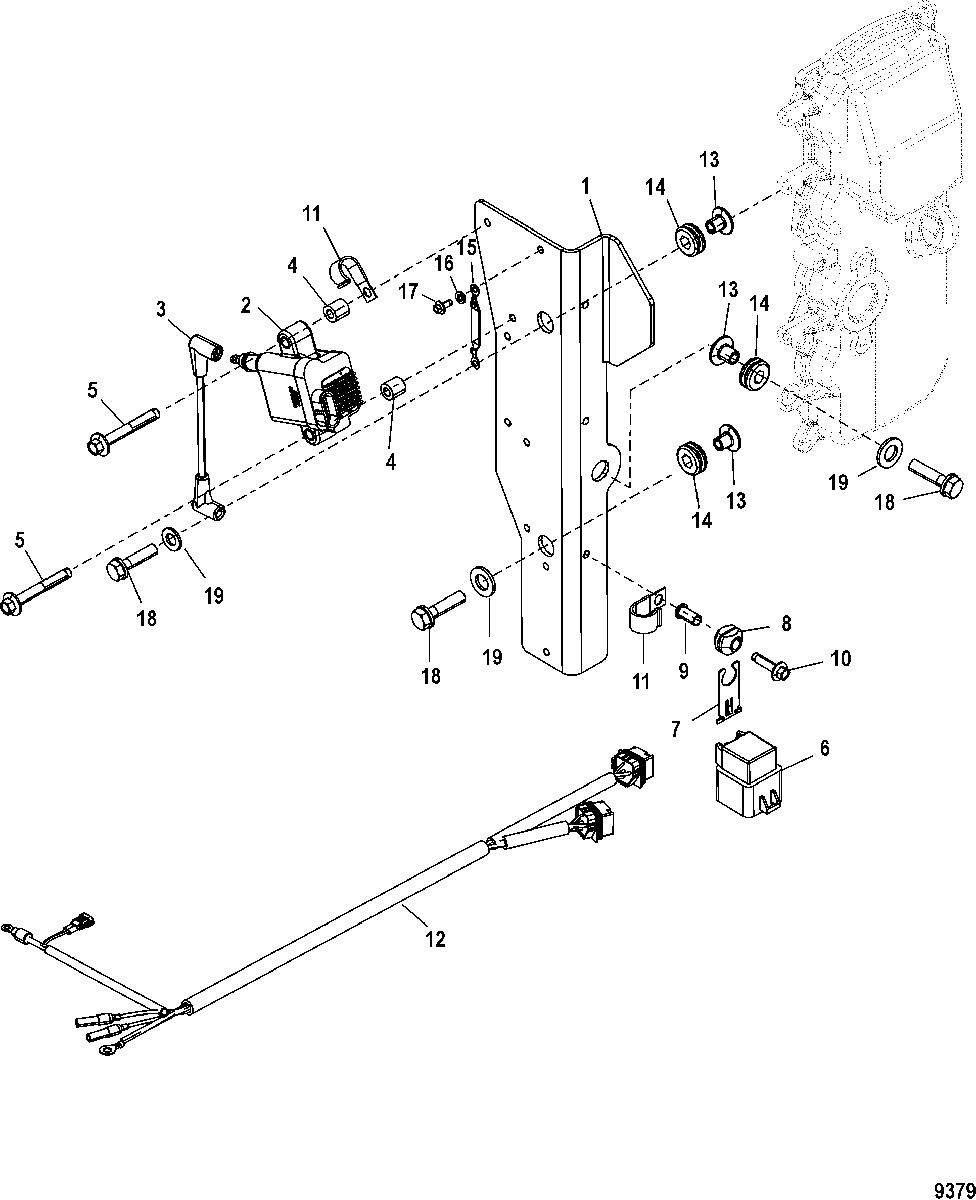

Ignition Coil Mounting для Mercury - 50 EFI (4 CYL.)(4-STROKE) 0P401000 THRU 0P515896
-
№АртикулНазвание
-
1892869T PLATE, CoilPLATE, Coil
-
2300-8M0077471 COIL, IgnitionCOIL, Ignition
-
384-881908T CABLE SETCABLE SET
-
423-892863001 SPACERSPACER
-
510-82129145 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
6882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
7828102 BRACKETBRACKET
-
825-818967 GROMMETGROMMET
-
923-818968 BUSHINGBUSHING
-
1010-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1154-55098 J CLIPJ CLIP
-
1284-826802T32 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
1323-856954 BUSHINGBUSHING
-
1425-834985 GROMMETGROMMET
-
1584-858414A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1810-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1912-4002316 WASHERWASHER
