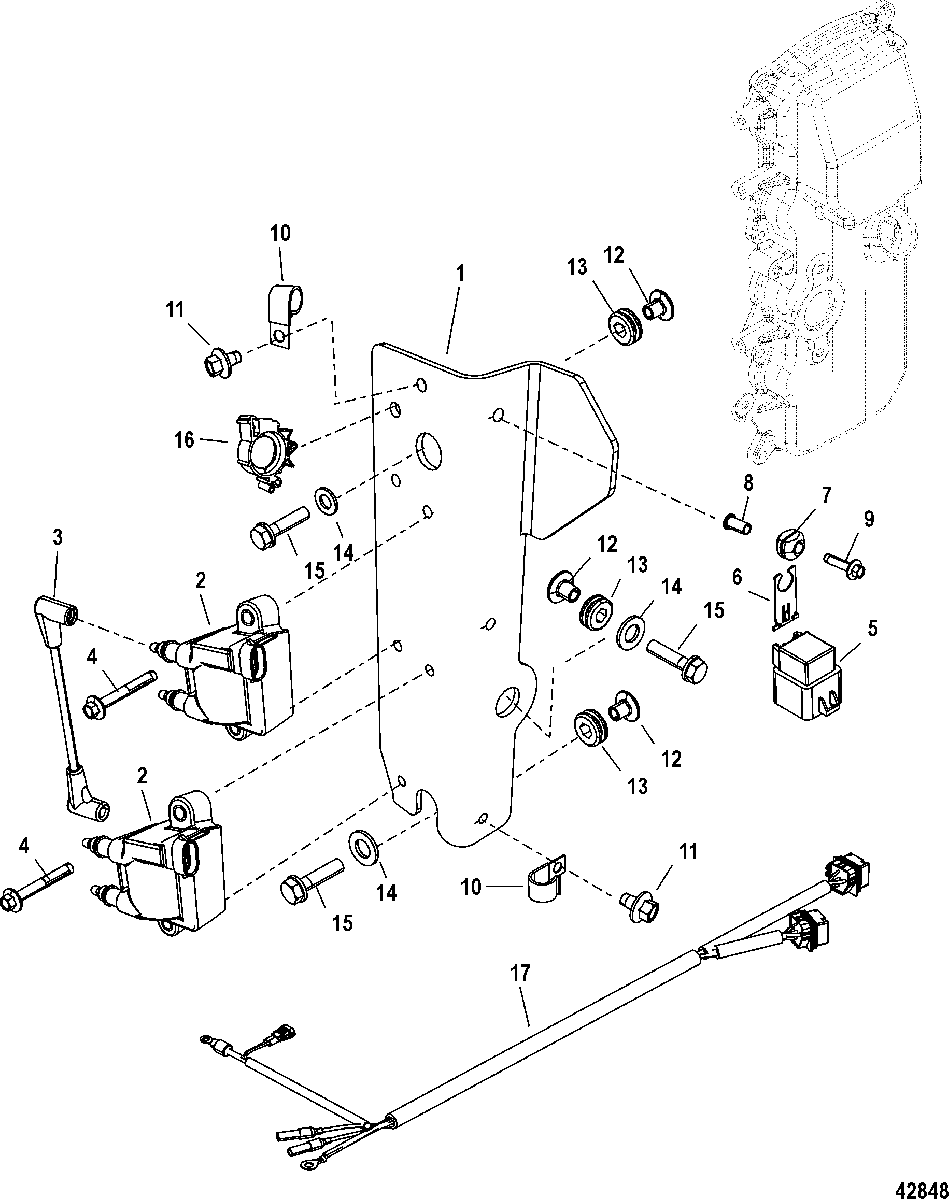

Ignition Coil Mounting, 1C104424/0P560350 and Up для Mercury - 50 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
18M0044994 COIL PLATECOIL PLATE
-
2300-8M0044991 COIL, Ignition Dual OutputCOIL, Ignition Dual Output
-
384-881908T CABLE SETCABLE SET
-
410-82129130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
5882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
6828102 BRACKETBRACKET
-
725-818967 GROMMETGROMMET
-
823-818968 BUSHINGBUSHING
-
910-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1054-65292 J-CLIPJ-CLIP
-
1110-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1223-856954 BUSHINGBUSHING
-
1325-834985 GROMMETGROMMET
-
1410-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
1512-4002316 WASHERWASHER
-
1654-898454 CLIP, (19 mm)CLIP, (19 mm)
-
1784-826802T36 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
