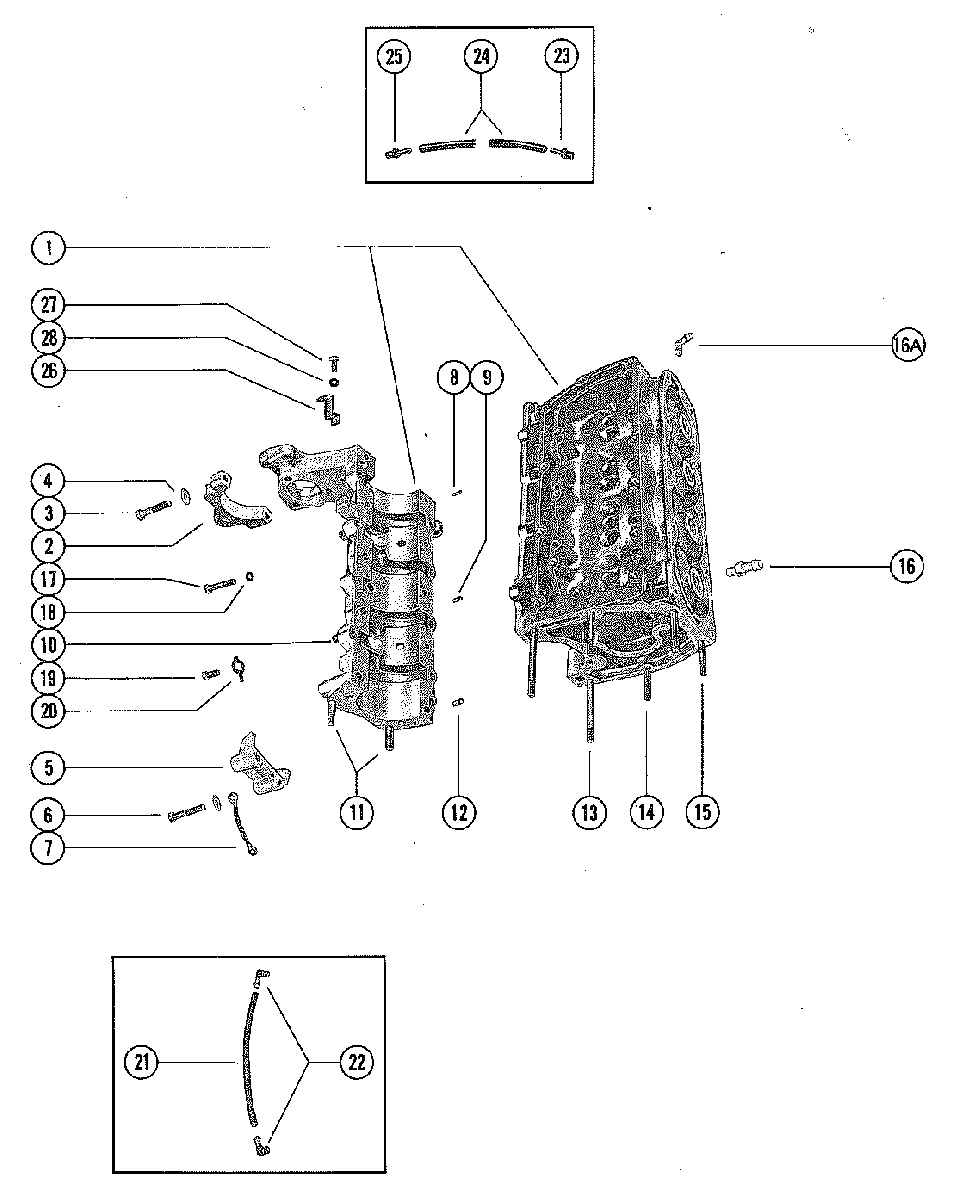

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 500, 50 7068998 THRU 7143687
-
№АртикулНазвание
-
1863-8981A6 CYLINGER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWCYLINGER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
1863-8981A6 CYLINGER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4962056 THRU 5193258
AUSTRALIA 8053230 THRU 8057394
BELGIUM 9195686 THRU 9217255
CANADA 7115573 THRU 7116222CYLINGER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 4962056 THRU 5193258
AUSTRALIA 8053230 THRU 8057394
BELGIUM 9195686 THRU 9217255
CANADA 7115573 THRU 7116222 -
1863-8981A6 CYLINGER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UPCYLINGER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 5193259 AND UP
AUSTRALIA 8057395 AND UP
BELGIUM 9217256 AND UP -
272038 BRACKET, STARTER MOTOR (UPPER)BRACKET, STARTER MOTOR (UPPER)
-
310-73278 SCREW, BRACKET TO CRANKCASE (1 5/8")SCREW, BRACKET TO CRANKCASE (1 5/8")
-
413-26993 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
576867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
610-73279 SCREW, COVER TO CRANKCASE (1 7/8")SCREW, COVER TO CRANKCASE (1 7/8")
-
746933A3 CABLE ASSEMBLY, GROUNGCABLE ASSEMBLY, GROUNG
-
817-20032 DOWEL PIN, CYLINDER BLOCK TO MAIN HEARINGDOWEL PIN, CYLINDER BLOCK TO MAIN HEARING
-
917-20323 DOWEL PIN, CENTER MAIN BEARING
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOWDOWEL PIN, CENTER MAIN BEARING
UNITED STATES 5193258 AND BELOW
AUSTRALIA 8057394 AND BELOW
BELGIUM 9217255 AND BELOW
CANADA 7116222 AND BELOW -
1016-64936 STUD, CARBURETOR MOUNTING (1 1/4")STUD, CARBURETOR MOUNTING (1 1/4")
-
1116-68165 STUD
CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")STUD
CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8") -
1217-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCKDOWEL PIN, CRANKCASE TO CYLINDER BLOCK
-
1316-68168 STUD
CYL. BLOCK TO DRIVE SHAFT HOUSING (3 11/16")STUD
CYL. BLOCK TO DRIVE SHAFT HOUSING (3 11/16") -
1416-68166 STUD
CYL. BLOCK TO DRIVE SHAFT HOUSING (2 1/8")STUD
CYL. BLOCK TO DRIVE SHAFT HOUSING (2 1/8") -
1516-68167 STUD
CYL. BLOCK TO DRIVE SHAFT HOUSING (1 9/16")STUD
CYL. BLOCK TO DRIVE SHAFT HOUSING (1 9/16") -
1622-291112 CONNECTOR, TELL TALE-CYLINDER BLOCK
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOWCONNECTOR, TELL TALE-CYLINDER BLOCK
UNITED STATES 4962055 AND BELOW
AUSTRALIA 8053229 AND BELOW
BELGIUM 9195685 AND BELOW
CANADA 7115572 AND BELOW -
16A22-782792 ELBOW, TELL TALE-CYLINGER BLOCK
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UPELBOW, TELL TALE-CYLINGER BLOCK
UNITED STATES 4962056 AND UP
AUSTRALIA 8053230 AND UP
BELGIUM 9195686 AND UP
CANADA 7115573 AND UP -
1710-55511 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
1710-31984 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/8")SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/8")
-
1710-73275 SCREW, CRANKCASE TO CYLINDER BLOCK (2 7/8")SCREW, CRANKCASE TO CYLINDER BLOCK (2 7/8")
-
1812-8M0042642 WASHER, CRANKCASE SCREWWASHER, CRANKCASE SCREW
-
1910-20359 SCREW, CENTER MAIN BEARING LOCKING (1")SCREW, CENTER MAIN BEARING LOCKING (1")
-
1910-98260 SCREW, MAIN BEARING LOCKING (5/8")SCREW, MAIN BEARING LOCKING (5/8")
-
2132-8M0108355 TUBE, BALANCE-MAIN BEARING (5 1/2")TUBE, BALANCE-MAIN BEARING (5 1/2")
-
2222-996642 ELBOW, BALANCE TUBE TO CYLINDER BLOCKELBOW, BALANCE TUBE TO CYLINDER BLOCK
-
2321-428671 CHECK VALVE, BLEED HOSE (LOWER)CHECK VALVE, BLEED HOSE (LOWER)
-
2432-9938779 HOSSE, CYLINDER BLEED (11")HOSSE, CYLINDER BLEED (11")
-
2522-56759 CONNECTOR, CYLINDER BLEED HOSE (UPPER)CONNECTOR, CYLINDER BLEED HOSE (UPPER)
-
2699156 INDICATOR, TIMING
ELECTRICINDICATOR, TIMING
ELECTRIC -
2710-39349 SCREW, INDICATOR TO CRANKCASE (3/4")
ELECTRICSCREW, INDICATOR TO CRANKCASE (3/4")
ELECTRIC -
2813-26993 LOCKWASHER, INDICATOR SCREW
ELECTRICLOCKWASHER, INDICATOR SCREW
ELECTRIC
