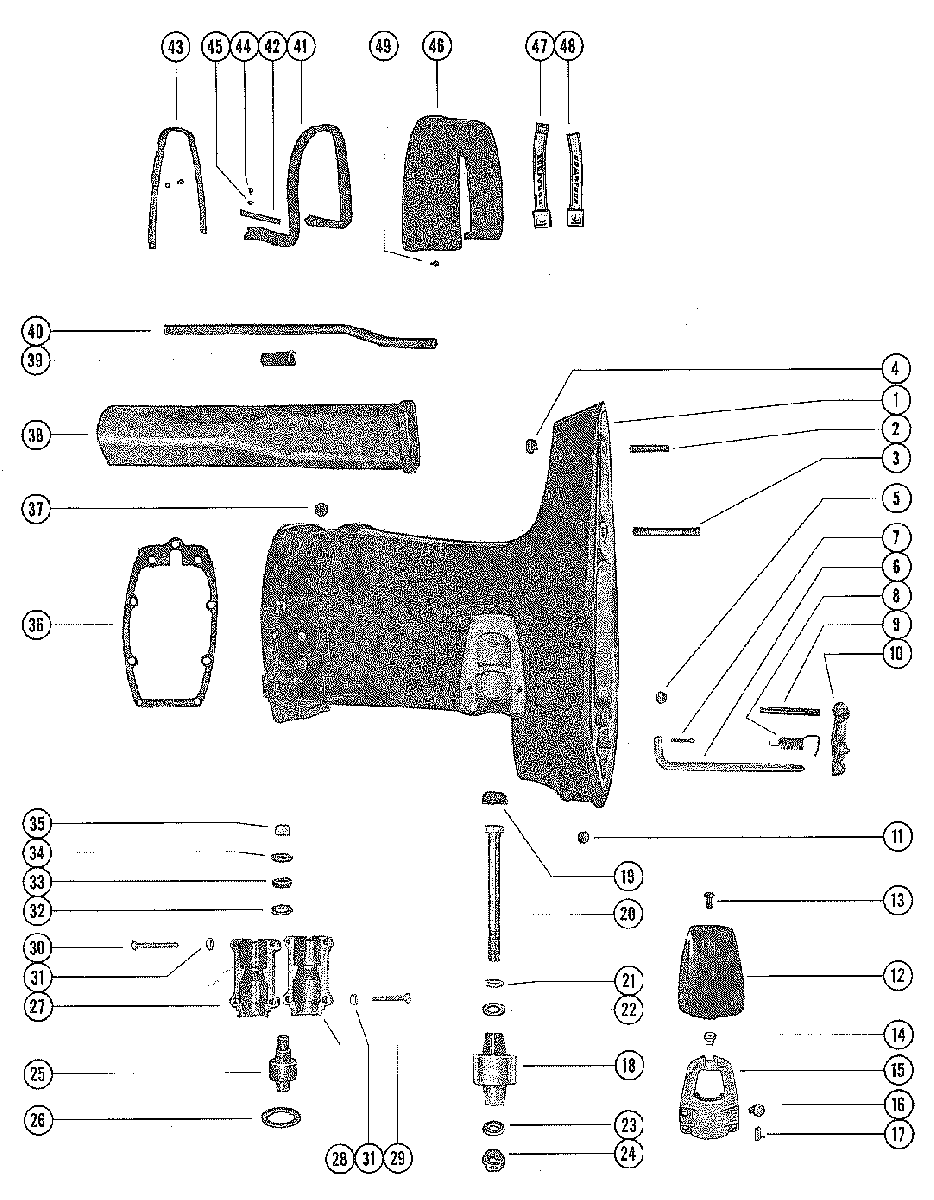

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 500 1755549 THRU 2097444
-
№АртикулНазвание
-
11554-3910A2 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11553-2488A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
-
316-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
-
419-32298 PLUG, PLASTIC - WATER PICK-UP SCREW HOLEPLUG, PLASTIC - WATER PICK-UP SCREW HOLE
-
511-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
-
628470 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
-
628593 ROD, PUSH - REVERSE LOCK (LONG SHAFT)ROD, PUSH - REVERSE LOCK (LONG SHAFT)
-
718-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
824-25122 SPRING, TENSION - PUSH RODSPRING, TENSION - PUSH ROD
-
917-24887 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
1052920 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
1122-390721 PLUG, GREASE - REVERSE LOCK HOLEPLUG, GREASE - REVERSE LOCK HOLE
-
1235474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
1310-29722 SCREW, COVER TO LOWER MOUNT CLAMPSCREW, COVER TO LOWER MOUNT CLAMP
-
1411-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
1569592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
1610-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSINGSCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
-
1724-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
1875304T1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
1925067 BUMPER, RUBBER - LOWER MOUNT SCREWBUMPER, RUBBER - LOWER MOUNT SCREW
-
2010-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
2112-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2212-28053 WASHER, RUBBER - LOWER MOUNT SCREWWASHER, RUBBER - LOWER MOUNT SCREW
-
2312-30119 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2411-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2575305 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2624929 PACKING, "U" CUP - UPPER MOUNT COVERSPACKING, "U" CUP - UPPER MOUNT COVERS
-
2779680A1 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2879680A1 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
2910-28772 SCREW, UPPER MOUNT COVER - REAR (1 1/2")SCREW, UPPER MOUNT COVER - REAR (1 1/2")
-
3010-37941 SCREW, UPPER MOUNT COVER - FRONT (1 3/4")SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
-
3111-35888 NUT, UPPER MOUNT COVER FASTENING SCREWNUT, UPPER MOUNT COVER FASTENING SCREW
-
3212-30520 WASHER, UPPER MOUNT BOLT (37/64 ID)WASHER, UPPER MOUNT BOLT (37/64 ID)
-
3312-30521 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3412-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)WASHER, UPPER MOUNT BOLT (3/8 ID)
-
3511-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3627-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
3711-862902 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
-
38695431 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
3837719 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
3923-23651 SLEEVE, WATER INLET TUBESLEEVE, WATER INLET TUBE
-
4032-37727 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
4032-37726 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
4138157 SEAL, TRIM COVER TO DRIVE SAHFT HOUSINGSEAL, TRIM COVER TO DRIVE SAHFT HOUSING
-
4238154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
4338158 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
4410-37571 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSINGSCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING
-
4512-30164 WASHER, RETAINING STRIP SCREWWASHER, RETAINING STRIP SCREW
-
4637687 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
47N.S.S. DECAL, TRIM COVER - PORT NOT AS SHOWNDECAL, TRIM COVER - PORT NOT AS SHOWN
-
48N.S.S. DECAL, TRIM COVER - STARBOARD NOT AS SHOWNDECAL, TRIM COVER - STARBOARD NOT AS SHOWN
-
47N.S.S. DECAL, TRI COVER - PORTDECAL, TRI COVER - PORT
-
48N.S.S. DECAL, TRI COVER - STARBOARDDECAL, TRI COVER - STARBOARD
-
4910-37571 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
