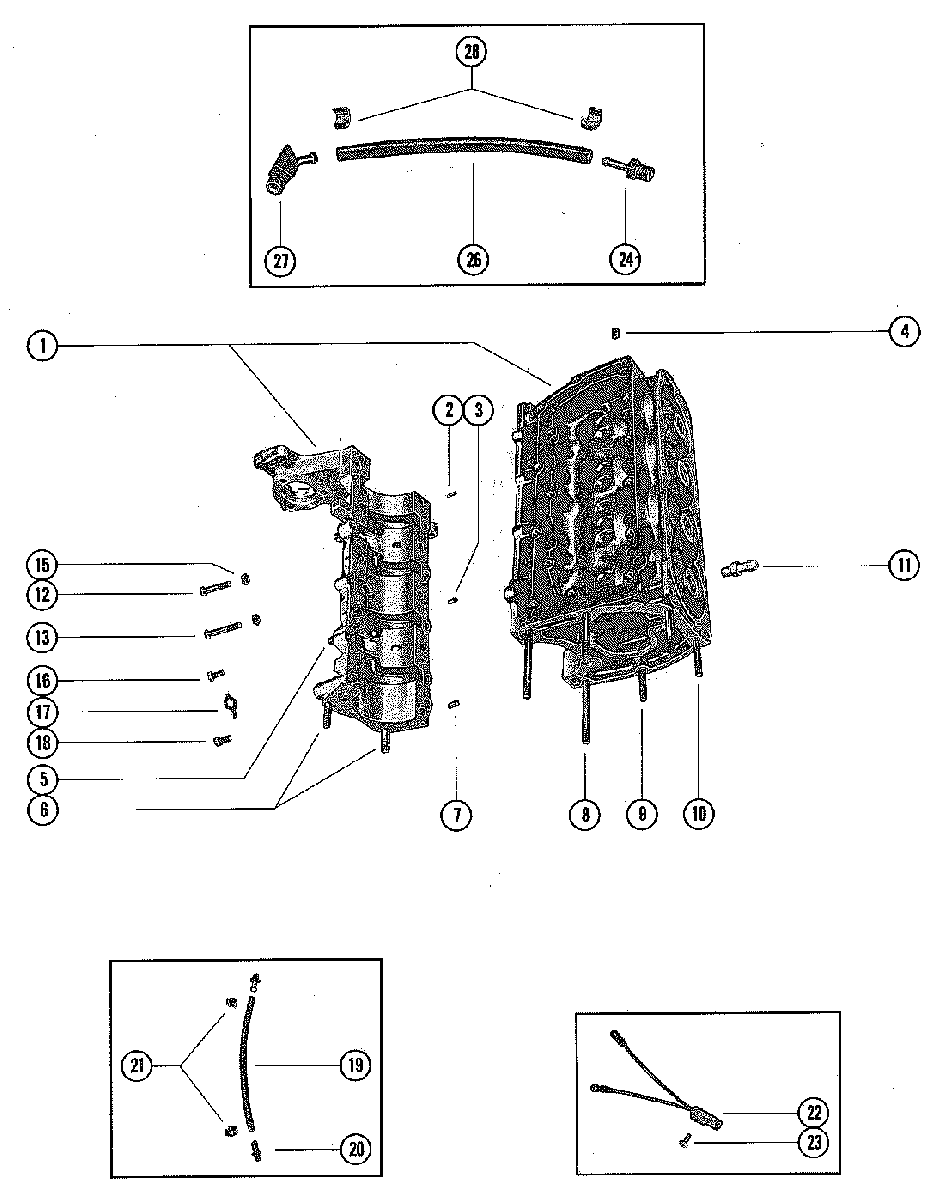

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 500 7051983 THRU 7068997
-
№АртикулНазвание
-
1831-5347A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
217-20032 DOWEL PIN. CYLINDER BLOCK TO MAIN BEARINGDOWEL PIN. CYLINDER BLOCK TO MAIN BEARING
-
317-20323 DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARINGDOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING
-
422-328022 PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLESPLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES
-
516-64936 STUD, CARBURETOR MOUNTING (1 1/4")STUD, CARBURETOR MOUNTING (1 1/4")
-
616-68165 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 9/16")STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 9/16")
-
717-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCKDOWEL PIN, CRANKCASE TO CYLINDER BLOCK
-
816-68168 STUD CYL. BLOCK TO DRIVE SHAFT HOUSING (3 11/16")STUD CYL. BLOCK TO DRIVE SHAFT HOUSING (3 11/16")
-
916-68166 STUD, CYL. BLOCK TO DRIVE SHAFT HOUSING 3 5/16")STUD, CYL. BLOCK TO DRIVE SHAFT HOUSING 3 5/16")
-
1016-68167 STUD, CYL. CLOCK TO DRIVE SHAFT HOUSING (1 15/16")STUD, CYL. CLOCK TO DRIVE SHAFT HOUSING (1 15/16")
-
1122-291112 CONNECTOR, WATER TELL TALE HOLE - CYLINDER BLOCKCONNECTOR, WATER TELL TALE HOLE - CYLINDER BLOCK
-
1210-78841 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
1210-69091 SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")
-
1310-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
-
1511-29250 NUT, CRANKCASE SCREWNUT, CRANKCASE SCREW
-
1610-98260 SCREW, MAIN BEARING LOCKING (5/8")SCREW, MAIN BEARING LOCKING (5/8")
-
1714-20091 TAB WASHER, BEARING LOCKING SCREWTAB WASHER, BEARING LOCKING SCREW
-
1810-20359 SCREW, CENTER MAIN BEARING LOCKING (1")SCREW, CENTER MAIN BEARING LOCKING (1")
-
1932-8M0108355 TUBE, BALANCE - MAIN BEARING (8")TUBE, BALANCE - MAIN BEARING (8")
-
2022-291112 CONNECTOR, BALANCE TUBE TO CYLINDER BLOCKCONNECTOR, BALANCE TUBE TO CYLINDER BLOCK
-
2154-20386 CLAMP, BALANCE TUBE TO CONNECTORSCLAMP, BALANCE TUBE TO CONNECTORS
-
2258124A8 SWITCH ASSEMBLY, MERCURYSWITCH ASSEMBLY, MERCURY
-
2310-48408 SCREW, MERCURY SWITCH TO EXH. MANIFORLD COVER (1/2")SCREW, MERCURY SWITCH TO EXH. MANIFORLD COVER (1/2")
-
2421-64871A2 CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER)CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER)
-
2632-9938779 HOSE, CYLINDER BLEEDHOSE, CYLINDER BLEED
-
2722-56759 CONNECTOR, CYLINDER BLEED HOSE (LOWER)CONNECTOR, CYLINDER BLEED HOSE (LOWER)
-
2854-20387 CLAMP, BLEED HOSE ATTACHINGCLAMP, BLEED HOSE ATTACHING
