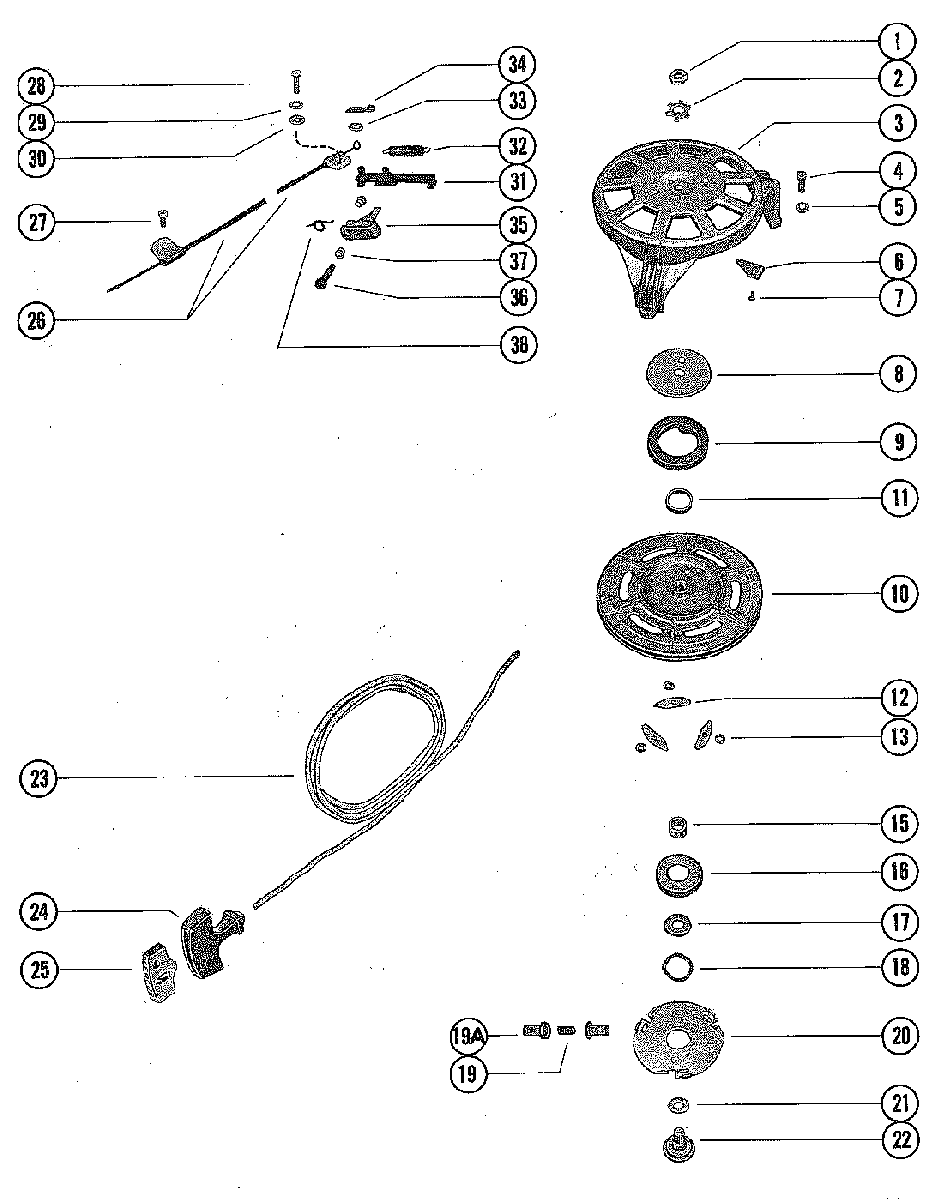

STARTER HOUSING для Mercury - 500 8029515 THRU 8030089
-
№АртикулНазвание
-
111-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
214-61004 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
357237 HOUSING, STARTERHOUSING, STARTER
-
410-90073 SCREW, STARTER HOUSING TO CRANKCASE/CYLINDER BLOCK (1")SCREW, STARTER HOUSING TO CRANKCASE/CYLINDER BLOCK (1")
-
513-20202 LOCKWASHER, STARTER HOUSING SCREWLOCKWASHER, STARTER HOUSING SCREW
-
637691 PLATE, CABLE GUIDEPLATE, CABLE GUIDE
-
710-358811 SCREW, DRIVE - CABLE GUIDE TO STARTER HOUSINGSCREW, DRIVE - CABLE GUIDE TO STARTER HOUSING
-
861002 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
924-39502T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1076053A1 SHEAVE, ASSEMBLYSHEAVE, ASSEMBLY
-
1123-63100 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
1230596 PAWL, STARTERPAWL, STARTER
-
1313-36206 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
1523-63061 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
1639840 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
1712-57837 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
1813-20160 WASHER, WAVE - RETAINER TENSIONWASHER, WAVE - RETAINER TENSION
-
1990-8M0143356 SPRING, RETAINER PLATE TO STARTER SHEAVESPRING, RETAINER PLATE TO STARTER SHEAVE
-
19A66848 RETAINER, SPRINGRETAINER, SPRING
-
2066845 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
2112-57860 WASHER, WEAR - STARTER PAWLWASHER, WEAR - STARTER PAWL
-
2261003 SHAFT, SHEAVESHAFT, SHEAVE
-
2350-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
2347341A11 STARTER CABLE (FOR MANUAL STARTING OF ELECTRIC ENGINE)STARTER CABLE (FOR MANUAL STARTING OF ELECTRIC ENGINE)
-
2428747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
2579470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
2670969 CABLE ASSEBMLY INTERLOCKCABLE ASSEBMLY INTERLOCK
-
2710-32228 SCREW, INTERLOCK CABLE TO EXHAUSE PLATE (5/8")SCREW, INTERLOCK CABLE TO EXHAUSE PLATE (5/8")
-
2810-69022 SCREW, INTERLOCK CABLE TO STARTER HOUSING (1/2")SCREW, INTERLOCK CABLE TO STARTER HOUSING (1/2")
-
2913-27660 LOCKWAHSER, INTERLOCK CABLE SCREWLOCKWAHSER, INTERLOCK CABLE SCREW
-
3012-26013 WASHER, INERLOCK CABLE SCREWWASHER, INERLOCK CABLE SCREW
-
3157236 CAM, SLIDING - STARTER HOUSINGCAM, SLIDING - STARTER HOUSING
-
3224-70086 SPRING, SLIDING CAMSPRING, SLIDING CAM
-
3312-37998 WASHER, INTERLOCK CABLEWASHER, INTERLOCK CABLE
-
3418-26953 COTTER PIN, INERLOCK CABLE TO SLIDING CAMCOTTER PIN, INERLOCK CABLE TO SLIDING CAM
-
3565757A1 TOGGLE ASSEMBLY, STARTER INTERLOCKTOGGLE ASSEMBLY, STARTER INTERLOCK
-
3610-57249 SCREW, TOGGLE TO STARTER HOUSINGSCREW, TOGGLE TO STARTER HOUSING
-
3723-26856 BUSHING, TOGGLE SCREWBUSHING, TOGGLE SCREW
-
3824-57279 SPRING, TOGGLE SCREWSPRING, TOGGLE SCREW
