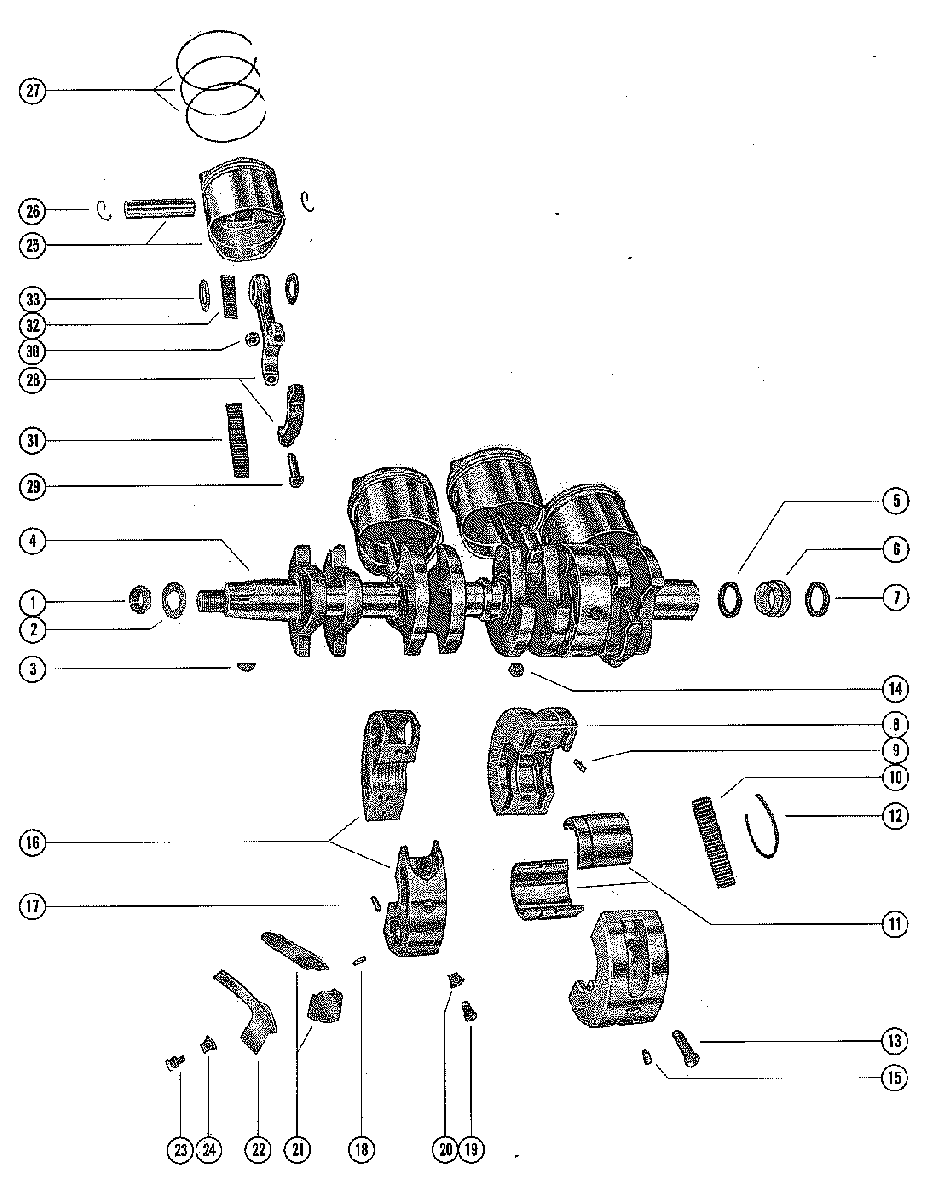

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 500 9001581 THRU 9082513
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4400-2976A2 CRANKSHAFT
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512CRANKSHAFT
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
525-29619 "O" RING, DRIVE SHAFT SPLINE
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512"O" RING, DRIVE SHAFT SPLINE
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
4400-4627 CRANKSHAFT
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UPCRANKSHAFT
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP -
660834A3 CARRIER ASSEMBLY, "O" RING
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UPCARRIER ASSEMBLY, "O" RING
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP -
764254001 "O" RING, CARRIER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP"O" RING, CARRIER
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP -
8500-5345A4 CENTER MAIN BEARING ASSEMBLY
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747CENTER MAIN BEARING ASSEMBLY
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
8500-5345A2 CENTER MAIN BEARING ASSEMBLY
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UPCENTER MAIN BEARING ASSEMBLY
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
917-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
1029-20046T BEARING, NEEDLEBEARING, NEEDLE
-
1120047 RACE, OUTERRACE, OUTER
-
1253-20048 RING, SNAP - OUTER RACE CLAMPINGRING, SNAP - OUTER RACE CLAMPING
-
1310-20784 SCREW, CENTER MAIN BEARING CLAMPING (1 1/2")SCREW, CENTER MAIN BEARING CLAMPING (1 1/2")
-
1411-20184 NUT, CENTER MAIN BEARING CLAMPING SCREWNUT, CENTER MAIN BEARING CLAMPING SCREW
-
1517-20379 DOWEL PIN, (STEPPED)DOWEL PIN, (STEPPED)
-
16534-3267T25 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
1717-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1817-65855 DOWEL PIN, REED LOCATINGDOWEL PIN, REED LOCATING
-
1910-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
2011-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
2134-88498A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
2234-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
2310-77280 SCREW, REED STOP MOUNTING (9/16")SCREW, REED STOP MOUNTING (9/16")
-
2411-20110 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
25780-9229A7 PISTON AND PISTON PIN ASSEMBLY
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747PISTON AND PISTON PIN ASSEMBLY
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
25780-9229A7 PISTON AND PISTON PIN ASSEMBLY
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UPPISTON AND PISTON PIN ASSEMBLY
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
2640-828119 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2739-27841A12 RING, PISTONRING, PISTON
-
28632-7621A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2910-45379 SCREW, CAP TO CONNECTING RODSCREW, CAP TO CONNECTING ROD
-
3011-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
3129-20046T BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
3229-20063 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3312-47275 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--780-9229A10 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
OVERSIZE PISTON AND RINGPISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
OVERSIZE PISTON AND RING -
--39-28616A12 RING, PISTON (.015 OVERSIZE)
OVERSIZE PISTON AND RINGRING, PISTON (.015 OVERSIZE)
OVERSIZE PISTON AND RING
