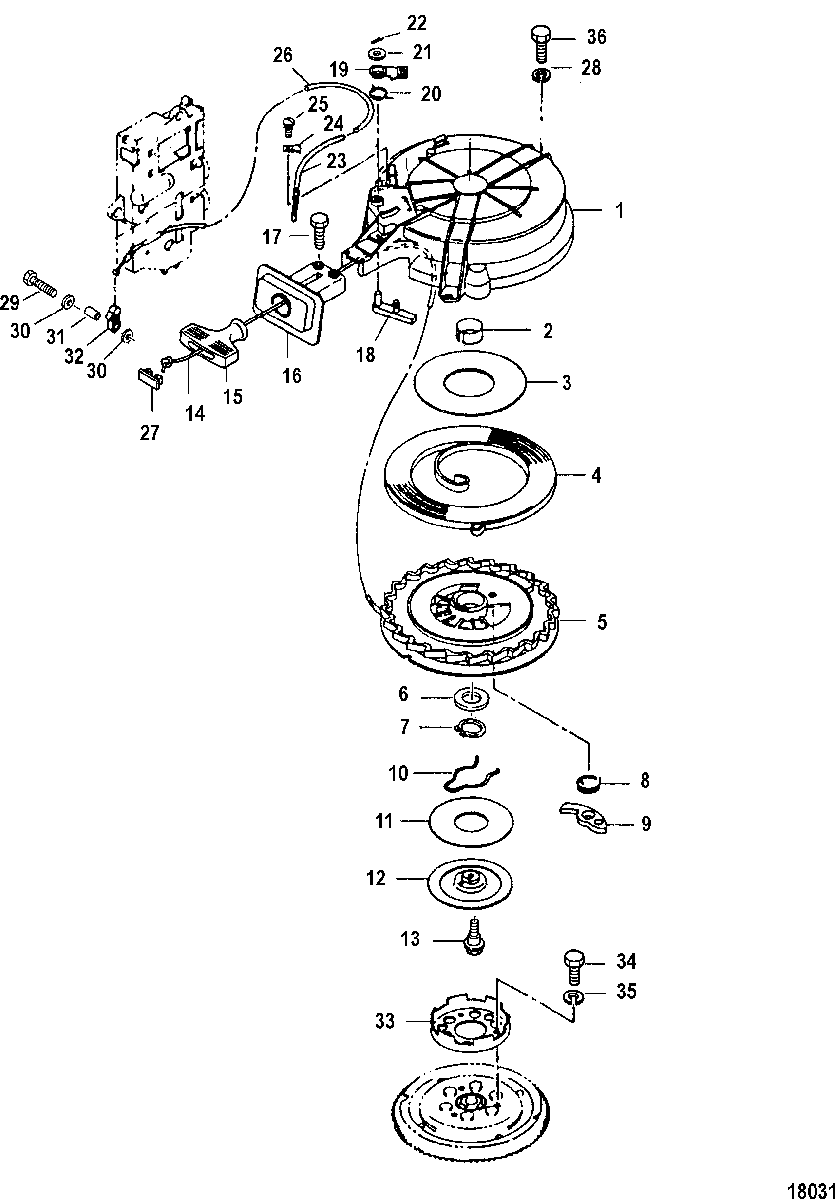

Recoil Starter для Mercury - 50MH 0N056165 & Up
-
№АртикулНазвание
-
18M0129212 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
223-8518583 BUSHINGBUSHING
-
3804026 SLIDING PLATESLIDING PLATE
-
424-804024 SPRING, StarterSPRING, Starter
-
58M0129197 REELREEL
-
612-9539212 WASHERWASHER
-
753-804027 C RINGC RING
-
824-8M0129209 SPRING, ReturnSPRING, Return
-
9804023 RATCHETRATCHET
-
1024-8040241 SPRING, FrictionSPRING, Friction
-
118040261 SLIDING PLATESLIDING PLATE
-
12804025 FRICTION PLATEFRICTION PLATE
-
1310-162637 BOLTBOLT
-
1450-8M0129204 ROPE, StarterROPE, Starter
-
15804029 HANDLE, StarterHANDLE, Starter
-
168M0129205 GUIDEGUIDE
-
1710-162637 BOLTBOLT
-
18804031 STOPPER, ReelSTOPPER, Reel
-
19804032 ARM, StopperARM, Stopper
-
2024-8040243 SPRING, StopperSPRING, Stopper
-
2112-9539213 WASHERWASHER
-
2218-81502611 COTTER PINCOTTER PIN
-
2384-85374013 WIREWIRE
-
24804033 HOLDER, CableHOLDER, Cable
-
2510-804034 SCREWSCREW
-
2623-8113683 SLEEVESLEEVE
-
27853755002 CAP, Starter HandleCAP, Starter Handle
-
2813-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2910-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
3123-8M0021168 COLLAR, (9.3 mm)COLLAR, (9.3 mm)
-
32804036 LOCK ARM, StarterLOCK ARM, Starter
-
338M0129216 PULLEY, StarterPULLEY, Starter
-
3410-168307 BOLTBOLT
-
3513-17025 LOCKWASHERLOCKWASHER
-
3610-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
