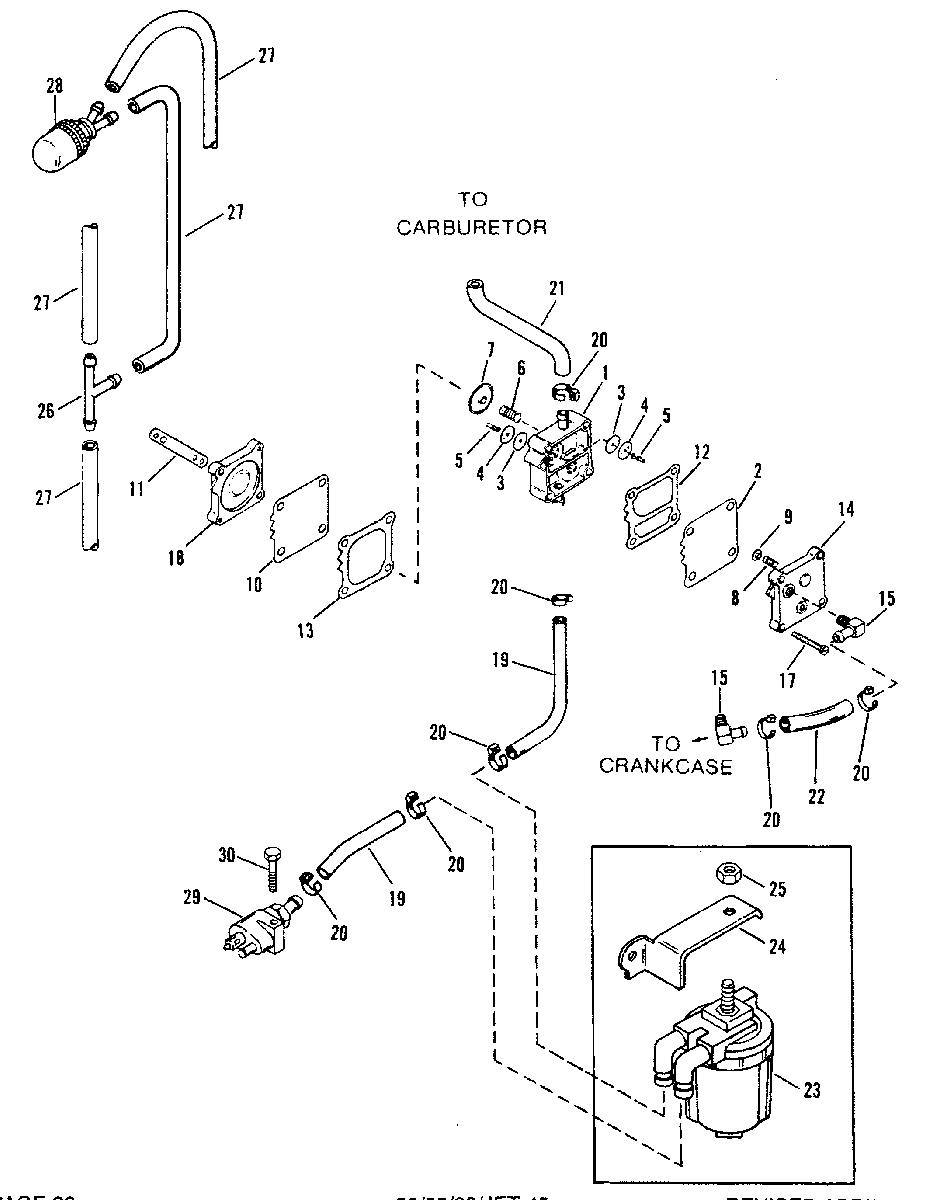

FUEL PUMP (55/60 SEAPRO/MARATHON) для Mercury - 55 (3 CYL.) 0D000750 THRU 0G290584
-
№АртикулНазвание
-
114360A78 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS RUBBER CHECK VALVERUBBER CHECK VALVE
-
4NSS CHECK VALVECHECK VALVE
-
5NSS RETAINERRETAINER
-
6NSS SPRINGSPRING
-
7NSS CAPCAP
-
8NSS SPRINGSPRING
-
9NSS CAPCAP
-
10NSS DIAPHRAGMDIAPHRAGM
-
1127-987691 GASKETGASKET
-
12NSS GASKET, BOOSTGASKET, BOOST
-
13NSS GASKET, PULSEGASKET, PULSE
-
14987752 PLATEPLATE
-
1522-433351 FITTINGFITTING
-
1710-82104540 SCREW, FUEL PUMPSCREW, FUEL PUMP
-
1710-81754150 SCREW, FUEL PUMP TO CRANKCASESCREW, FUEL PUMP TO CRANKCASE
-
18144303 BASEBASE
-
1932-8M0108349 HOSEHOSE
-
2054-816311T STA-STRAPSTA-STRAP
-
2132-830768 HOSEHOSE
-
2232-9912878 HOSE (4-1/4")HOSE (4-1/4")
-
2335-8M0063726 FUEL FILTERFUEL FILTER
-
248170281 BRACKETBRACKET
-
2511-401196 NUTNUT
-
2622-59169003 TEE FITTINGTEE FITTING
-
2732-892024122 HOSEHOSE
-
28858763 PRIMER BULBPRIMER BULB
-
2922-816856T01 FUEL CONNECTORFUEL CONNECTOR
-
3010-4000332 SCREWSCREW
-
-27-812867A97 ENGINE GASKET SETENGINE GASKET SET
-
-21-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
