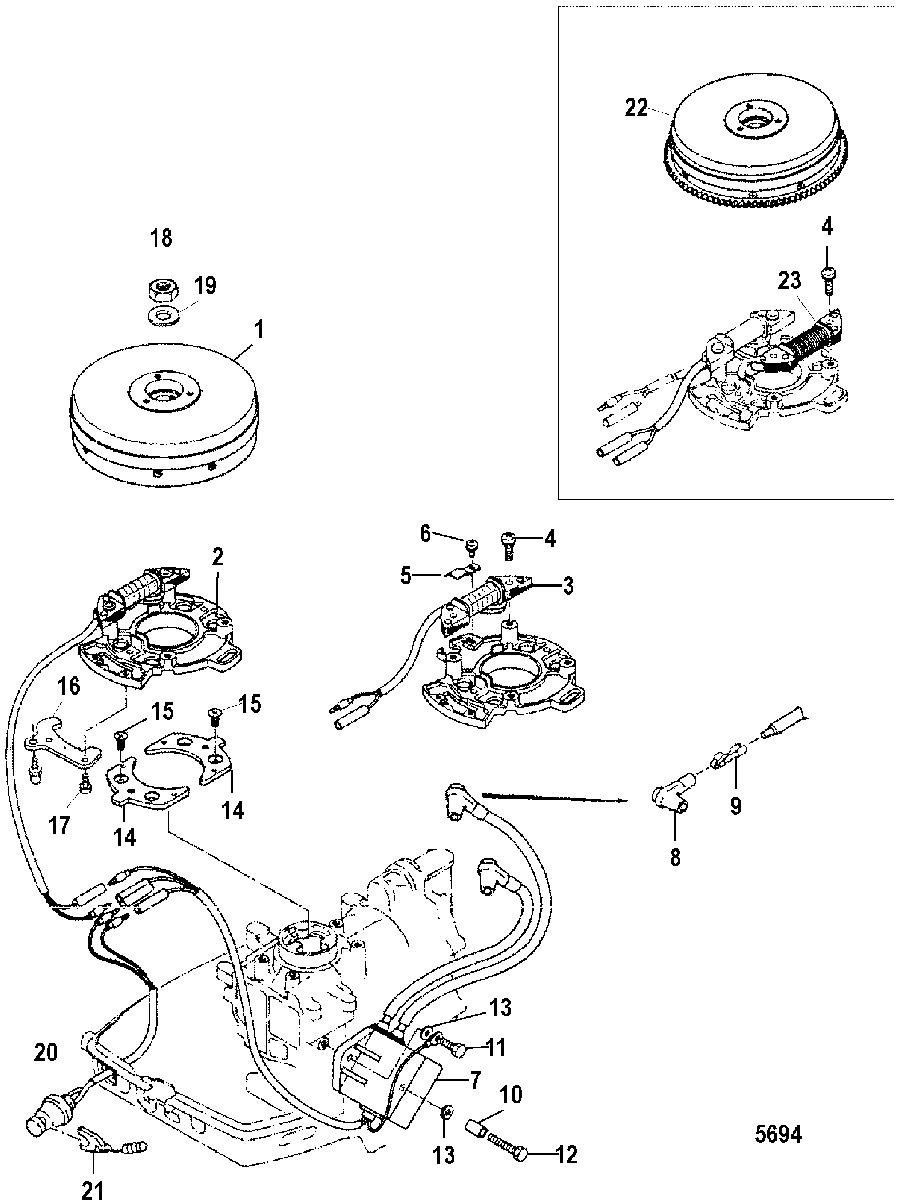

Electrical Components для Mercury - 6 (2 CYL.)(2-STROKE)(International) 0N027903 THRU 0N055109
-
№АртикулНазвание
-
1261-804976T01 FLYWHEEL CUPFLYWHEEL CUP
-
28M0135298 PLATE ASSEMBLY, CoilPLATE ASSEMBLY, Coil
-
3804988T COIL, ExciterCOIL, Exciter
-
410-82303115 SCREWSCREW
-
5804990 HOLDERHOLDER
-
610-8230314 SCREWSCREW
-
7803704T01 CD UNITCD UNIT
-
885-8555431 CAPCAP
-
885-855543 BOOT, With ResistanceBOOT, With Resistance
-
9NSS NOT SOLD SEPARATE, TerminalNOT SOLD SEPARATE, Terminal
-
1023-8537156 SPACERSPACER
-
1110-16705 BOLTBOLT
-
1210-168308 BOLTBOLT
-
1312-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
14804890T SET PLATESET PLATE
-
1510-16194 SCREWSCREW
-
168048911 STOPPERSTOPPER
-
1710-8555441 SCREWSCREW
-
1811-16071 NUTNUT
-
1912-16072 WASHERWASHER
-
2087-823037A2 SWITCH ASSEMBLY, Stop - LanyardSWITCH ASSEMBLY, Stop - Lanyard
-
21823054 LANYARDLANYARD
-
22261-804976T FLYWHEEL CUP (Electric)FLYWHEEL CUP (Electric)
-
23804977T01 ALTERNATOR SET (Electric)ALTERNATOR SET (Electric)
