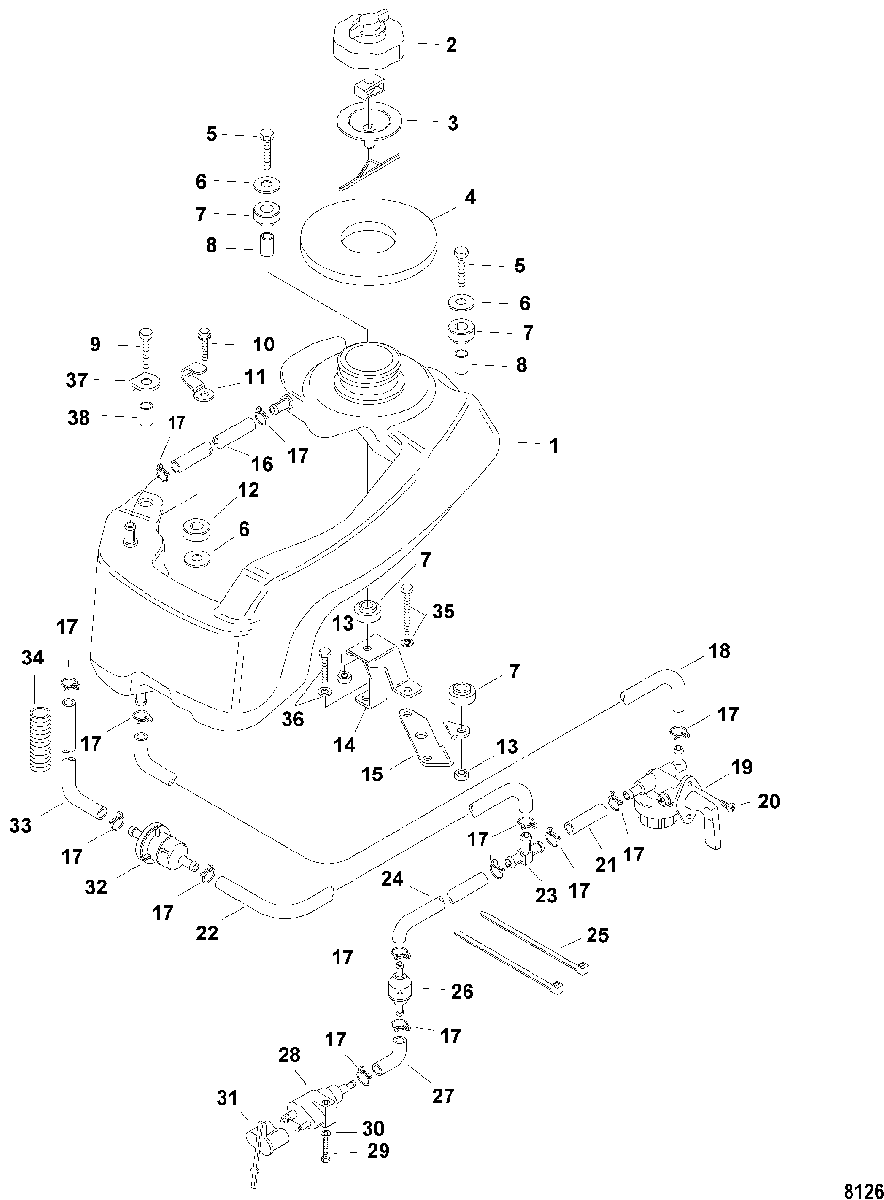

Intergral Fuel Tank для Mercury - 6 (4-STROKE) 0P073456 THRU 0P400999
-
№АртикулНазвание
-
11200-8M0088123 TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
-
11258-878355A2 TANK ASSEMBLY, Fuel
(Bodensee)TANK ASSEMBLY, Fuel
(Bodensee) -
236-8M0126977 CAP ASSEMBLY, FuelCAP ASSEMBLY, Fuel
-
236-8M0126977 CAP ASSEMBLY, Fuel
(Bodensee)CAP ASSEMBLY, Fuel
(Bodensee) -
327-878353 GASKETGASKET
-
426-878354 SEALSEAL
-
510-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
612-161404 WASHERWASHER
-
723-8537437 MOUNT, RubberMOUNT, Rubber
-
823-8537154 SPACERSPACER
-
910-16705 BOLTBOLT
-
1010-8M0051381 SCREW, Stainless SteelSCREW, Stainless Steel
-
1154-813275 CLAMPCLAMP
-
1225-881305 MOUNT, RubberMOUNT, Rubber
-
1311-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
14878350 BRACKETBRACKET
-
15878351 BRACKET
(Use where Applicable)BRACKET
(Use where Applicable) -
1632-8M0057113 LINE, Fuel (1000 mm) (9.875 Inch)LINE, Fuel (1000 mm) (9.875 Inch)
-
1754-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
1832-8M0057113 LINE, Fuel (1000 mm) (14.00 Inch)LINE, Fuel (1000 mm) (14.00 Inch)
-
1922-878387 FUEL COCK ASSEMBLYFUEL COCK ASSEMBLY
-
2010-815046 SCREW, Stainless SteelSCREW, Stainless Steel
-
2132-8M0057113 LINE, Fuel (1000 mm) (1.375 Inch)LINE, Fuel (1000 mm) (1.375 Inch)
-
2232-8M0057113 LINE, Fuel (1000 mm) (8.50 Inch)LINE, Fuel (1000 mm) (8.50 Inch)
-
2322-73318 TEE, PlasticTEE, Plastic
-
2432-8M0057113 LINE, Fuel (1000 mm) (5.25 Inch)LINE, Fuel (1000 mm) (5.25 Inch)
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2622-815048 CONNECTOR, PlasticCONNECTOR, Plastic
-
2732-815049 HOSE, Rubber (1.75 Inch)HOSE, Rubber (1.75 Inch)
-
2822-15781A5 CONNECTOR, Fuel - BrassCONNECTOR, Fuel - Brass
-
2910-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
3012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
31878311 CAPCAP
-
3235-16248 FILTER, FuelFILTER, Fuel
-
3332-17668 HOSE (7.125 Inch)HOSE (7.125 Inch)
-
3423-8797051 SLEEVESLEEVE
-
3510-82304235 BOLT, (M6 x 45)
(M6 x 45)BOLT, (M6 x 45)
(M6 x 45) -
3510-82304221 BOLT
(M6 x 40)BOLT
(M6 x 40) -
3610-162232 BOLT
(M6 x 30)BOLT
(M6 x 30) -
3610-8230421 BOLT
(M6 x 25)BOLT
(M6 x 25) -
37881306 PLATEPLATE
-
3823-881307001 SPACERSPACER
