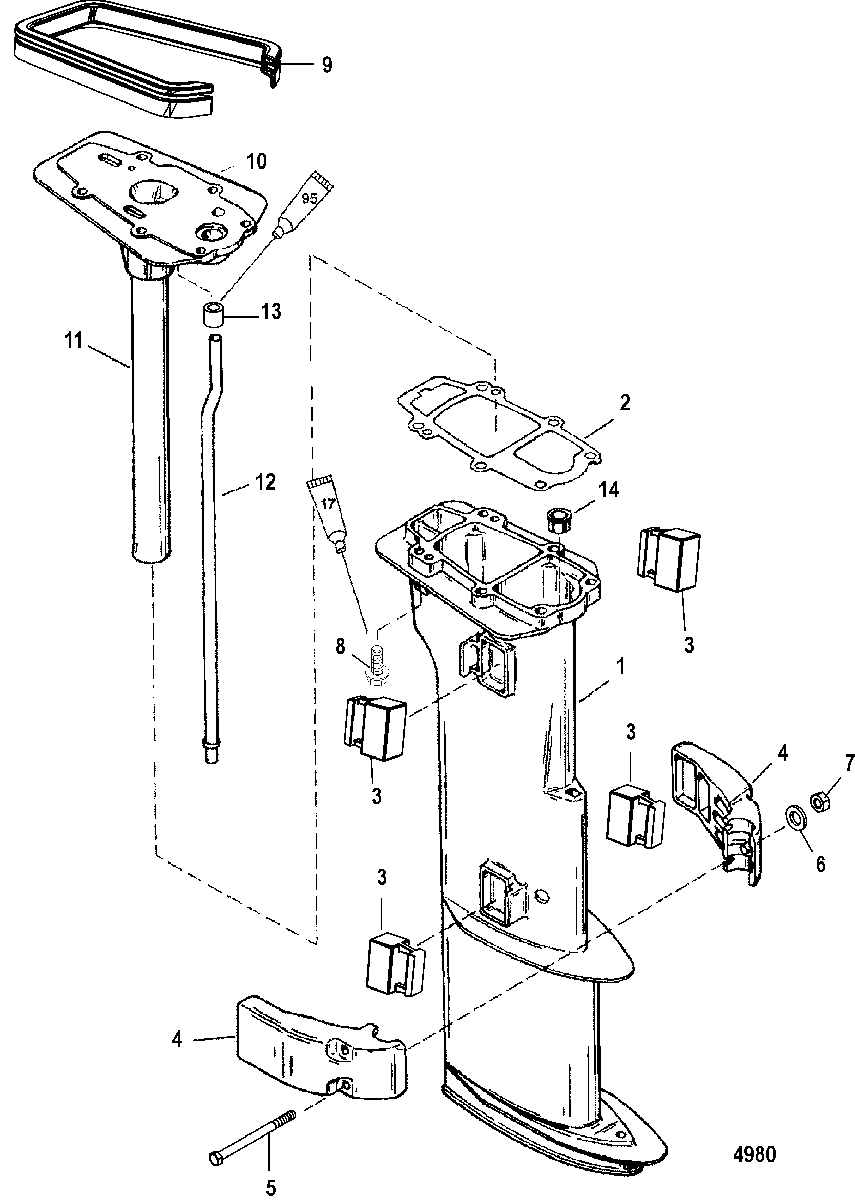

Driveshaft Housing для Mercury - 6 0P017000 THRU 0P325499
-
№АртикулНазвание
-
11596-822154A1 HOUSING ASSEMBLY
(Black-Short)HOUSING ASSEMBLY
(Black-Short) -
11597-822155A1 HOUSING ASSEMBLY
(Black-Long)HOUSING ASSEMBLY
(Black-Long) -
227-195992 GASKET, Driveshaft HousingGASKET, Driveshaft Housing
-
38M0039074 MOUNTMOUNT
-
442374F6 COVER, Mount
(Black)COVER, Mount
(Black) -
510-4009238 SCREW, (M6 x 80)SCREW, (M6 x 80)
-
612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
711-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
810-1993735 SCREW, (M6 x 35 MM)SCREW, (M6 x 35 MM)
-
926-11287001 SEAL, Adapter PlateSEAL, Adapter Plate
-
108M0036855 ADAPTOR PLATE
(Without Exhaust Tube) (6/8/9.9)ADAPTOR PLATE
(Without Exhaust Tube) (6/8/9.9) -
1041344T6 ADAPTOR PLATE ASSEMBLY
(With Exhaust Tube) (15)ADAPTOR PLATE ASSEMBLY
(With Exhaust Tube) (15) -
11NSS NOT SOLD SEPARATE (Exhaust Tube)
(15)NOT SOLD SEPARATE (Exhaust Tube)
(15) -
1232-881203A1 TUBE ASSEMBLY, Water
(Short)TUBE ASSEMBLY, Water
(Short) -
1232-881203A2 TUBE ASSEMBLY, Water
(Long)TUBE ASSEMBLY, Water
(Long) -
1326-42380001 SEALSEAL
-
14445551 BLOCK, Bearing
(Long)BLOCK, Bearing
(Long) -
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
