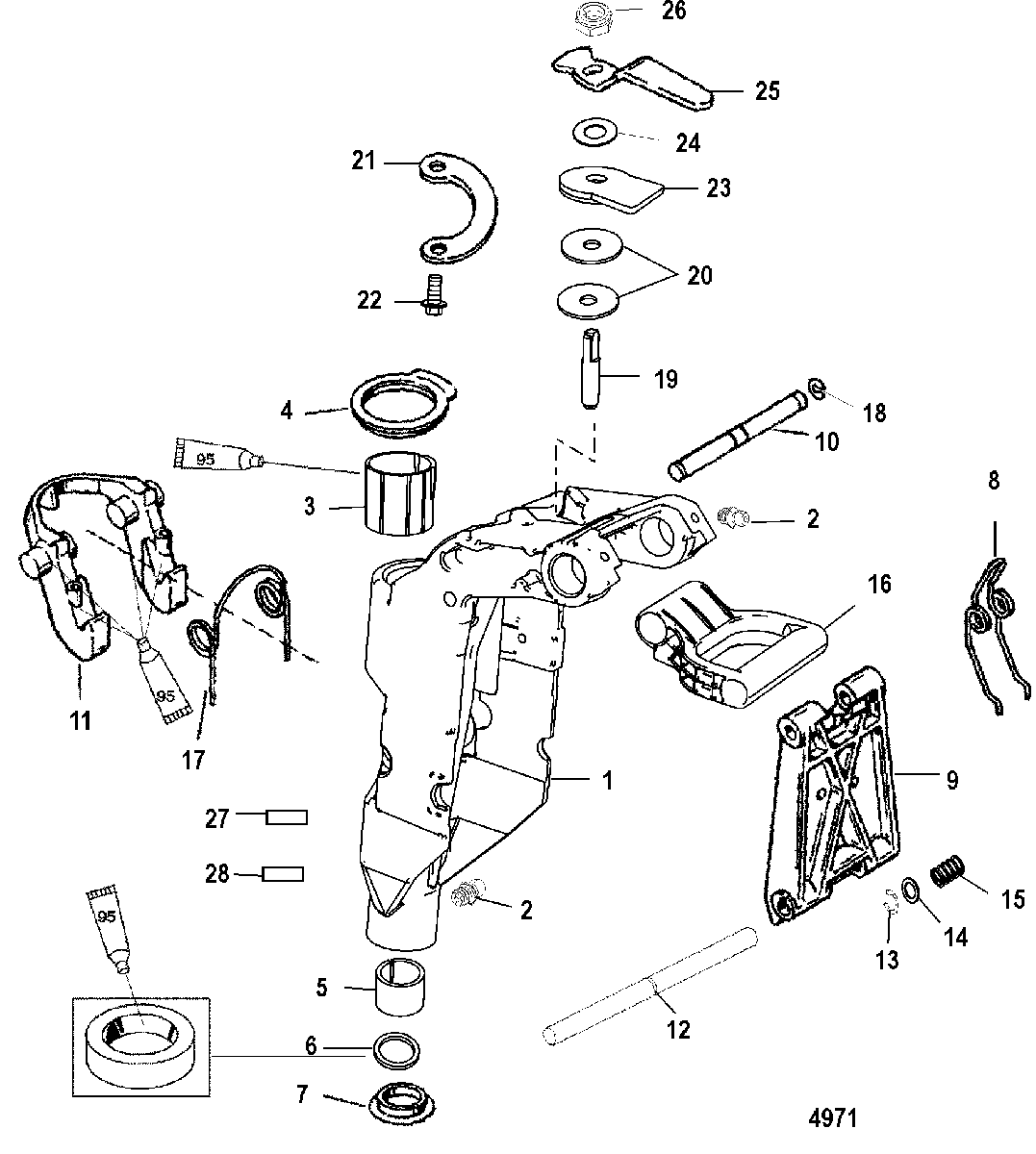

Swivel Bracket для Mercury - 6 0P325500 & Up
-
№АртикулНазвание
-
13402-8831T08 SWIVEL BRACKET ASSEMBLY
(Black)SWIVEL BRACKET ASSEMBLY
(Black) -
222-74036 FITTING, GreaseFITTING, Grease
-
323-421402 BEARINGBEARING
-
423-42080T01 BEARING, Thrust - UpperBEARING, Thrust - Upper
-
523-42139 BUSHINGBUSHING
-
626-42077 SEALSEAL
-
712-42373 THRUST WASHERTHRUST WASHER
-
824-421301 SPRINGSPRING
-
942082T04 BRACKETBRACKET
-
1017-420811 PINPIN
-
118M0075731 HOOK, Reverse LockHOOK, Reverse Lock
-
1217-830741A1 PIN ASSEMBLY, PivotPIN ASSEMBLY, Pivot
-
1353-832720 RING, RetainingRING, Retaining
-
1491963 WASHER, (.390 x .600 x .032)WASHER, (.390 x .600 x .032)
-
1524-42128 SPRINGSPRING
-
16420852 CARRYING HANDLE
(Black)CARRYING HANDLE
(Black) -
1724-42127 SPRINGSPRING
-
1853-13194 RING, RetainingRING, Retaining
-
19821961 RODROD
-
208165621 DISCDISC
-
21821958A1 PLATE KITPLATE KIT
-
2210-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
23821957 BRAKE PLATEBRAKE PLATE
-
2412-29330 WASHERWASHER
-
25821959 HANDLEHANDLE
-
2611-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
2737-8237011 DECAL, Co-PilotDECAL, Co-Pilot
-
28NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
