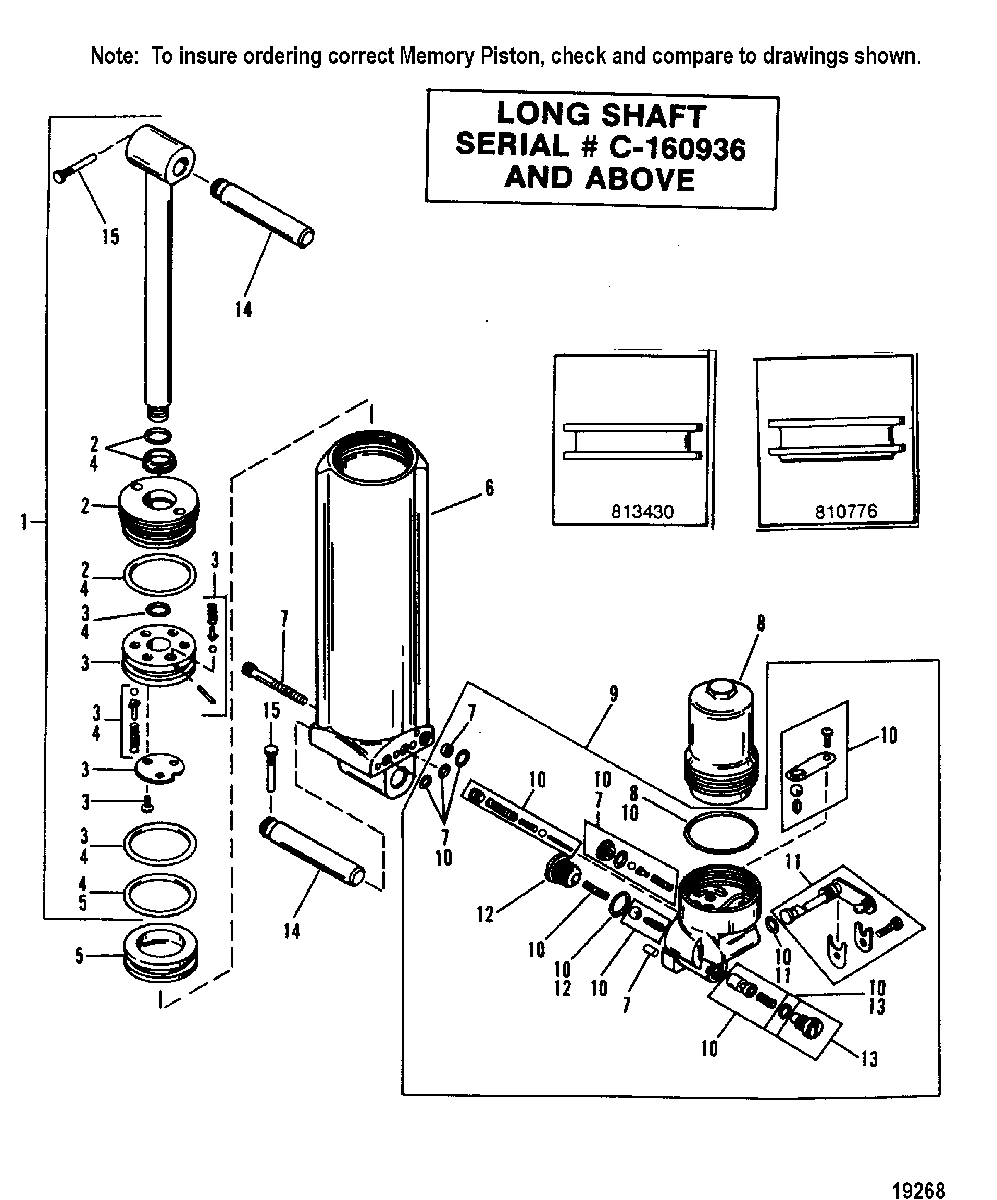

Manual Tilt Components для Mercury - 60 (3 CYL.) 0B122930 THRU 0D000749
-
№АртикулНазвание
-
1813427 SHOCK ROD ASSEMBLY KITSHOCK ROD ASSEMBLY KIT
-
2813428 END CAP ASSEMBLY, Trim CylinderEND CAP ASSEMBLY, Trim Cylinder
-
3813429 PISTON ASSEMBLY, ShockPISTON ASSEMBLY, Shock
-
4813432A1 CYLINDER REBUILD KITCYLINDER REBUILD KIT
-
5893903A01 PISTON KIT, Trim Memory (SEE NOTE)PISTON KIT, Trim Memory (SEE NOTE)
-
5810776 PISTON KIT, Memory (SEE NOTE)PISTON KIT, Memory (SEE NOTE)
-
6810777 CYLINDER KITCYLINDER KIT
-
7893919A01 SCREW AND SEAL KIT, CYLINDERSCREW AND SEAL KIT, CYLINDER
-
8893920A01 ACCUMULATORACCUMULATOR
-
98M0118574 VALVE BLOCK ASSEMBLYVALVE BLOCK ASSEMBLY
-
10813456A4 REPAIR KIT, VALVE BLOCKREPAIR KIT, VALVE BLOCK
-
11813457A1 CAM ASSEMBLY KITCAM ASSEMBLY KIT
-
1222-813458 PLUG KITPLUG KIT
-
1322-813459 PLUG KITPLUG KIT
-
1417-19607 PINPIN
-
1517-821539 PIN, GroovePIN, Groove
-
-8M0118570 PUMP ASSEMBLY, Tilt, COMPLETE
INCLUDES ALL PARTS ON THIS PAGEPUMP ASSEMBLY, Tilt, COMPLETE
INCLUDES ALL PARTS ON THIS PAGE
