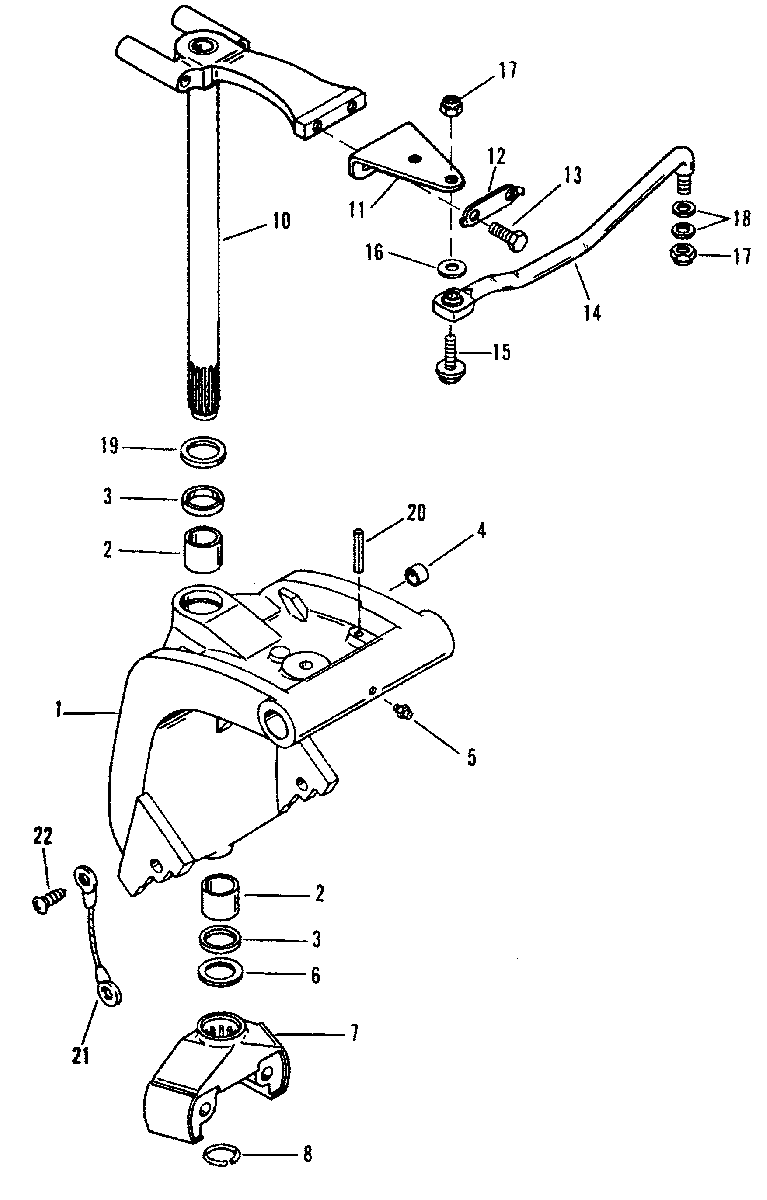

SWIVEL BRACKET (S/N: 0D182000 AND UP) для Mercury - 60 (3 CYL.) 0D000750 THRU 0G290584
-
№АртикулНазвание
-
13400-8M0084208 SWIVEL BRACKET(SHORT) (BLACK)SWIVEL BRACKET(SHORT) (BLACK)
-
13400-8M0084208 SWIVEL BRACKET(SHORT) (GRAY)SWIVEL BRACKET(SHORT) (GRAY)
-
13417-822863A1 SWIVEL BRACKET(LONG) (BLACK)SWIVEL BRACKET(LONG) (BLACK)
-
13417-822863A2 SWIVEL BRACKET (LONG) (GRAY)SWIVEL BRACKET (LONG) (GRAY)
-
13417-822863A3 SWIVEL BRACKET(LONG) (TRACKER)SWIVEL BRACKET(LONG) (TRACKER)
-
223-821124 BEARINGBEARING
-
326-32911 OIL SEALOIL SEAL
-
423-19606 BEARINGBEARING
-
522-74036 GREASE FITTINGGREASE FITTING
-
612-25176 WASHERWASHER
-
719654T1 BOTTOM YOKE (BLACK)BOTTOM YOKE (BLACK)
-
719654T1 BOTTOM YOKE (GRAY)BOTTOM YOKE (GRAY)
-
719654F1 BOTTOM YOKE (TRACKER)BOTTOM YOKE (TRACKER)
-
853-77415 RETAINING RINGRETAINING RING
-
1017-812897A19 SWIVEL PIN (SHORT) (BLACK)SWIVEL PIN (SHORT) (BLACK)
-
1017-812897A19 SWIVEL PIN (SHORT) (GRAY)SWIVEL PIN (SHORT) (GRAY)
-
1017-812896A22 SWIVEL PIN (LONG) (BLACK)SWIVEL PIN (LONG) (BLACK)
-
1017-812896A23 SWIVEL PIN (LONG) (GRAY)SWIVEL PIN (LONG) (GRAY)
-
1017-812896A16 SWIVEL PIN (LONG) (TRACKER)SWIVEL PIN (LONG) (TRACKER)
-
11893696 BRACKET (BLACK)
(50/60)BRACKET (BLACK)
(50/60) -
11893696 BRACKET (GRAY)
(50/60)BRACKET (GRAY)
(50/60) -
11893696 BRACKET (TRACKER)
(50/60)BRACKET (TRACKER)
(50/60) -
1214-8M0009820 STRAP
(50/60)STRAP
(50/60) -
1310-4000377 SCREW
(50/60)SCREW
(50/60) -
1419608A14 LINK ROD (STARBOARD)
(50/60)LINK ROD (STARBOARD)
(50/60) -
1419609A6 LINK ROD (PORT)
(50/60)LINK ROD (PORT)
(50/60) -
1510-856680 SCREW
(50/60)SCREW
(50/60) -
1612-8M0109680 WASHER
(50/60)WASHER
(50/60) -
1711-8M0042636 NUTNUT
-
1812-37828 WASHERWASHER
-
1912-52865 WASHERWASHER
-
2017-823876 ROLL PIN (HANDLE)ROLL PIN (HANDLE)
-
2188238A10 CABLECABLE
-
2210-41508 SCREW (1/4-20X .50)SCREW (1/4-20X .50)
