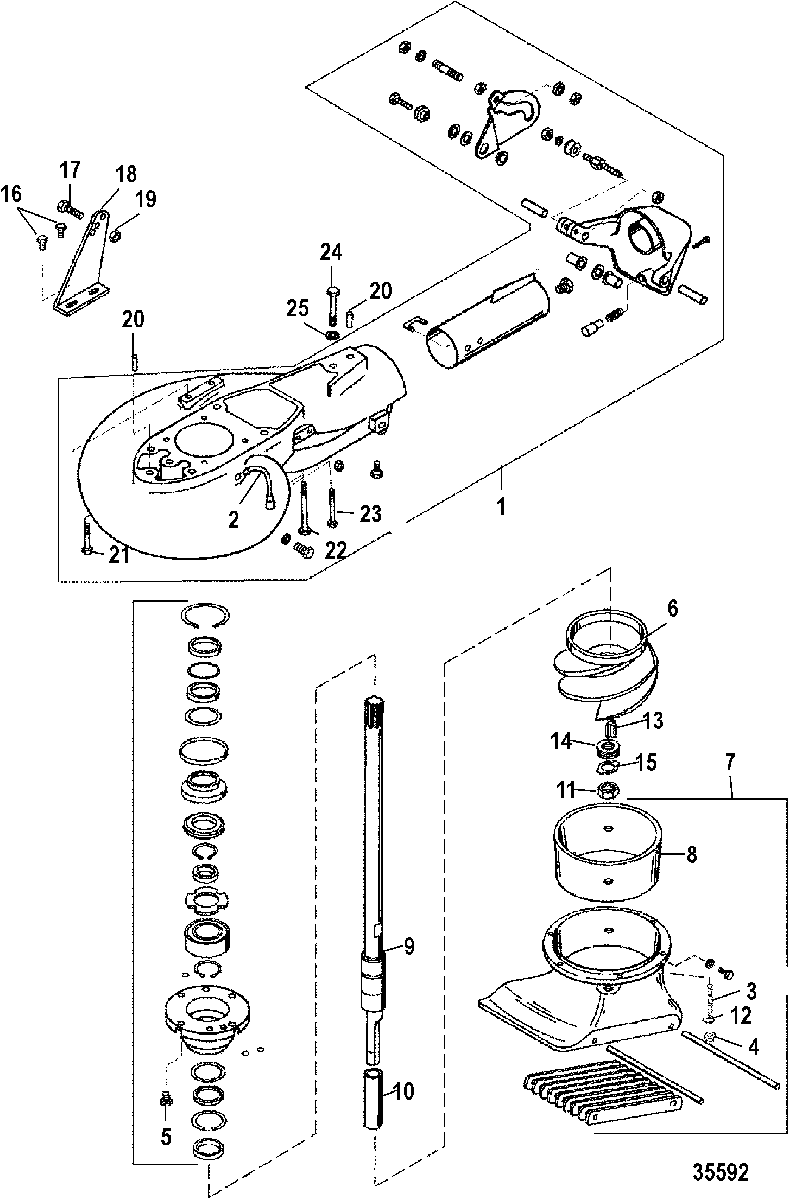

Jet Pump Assembly для Mercury - 60 (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
-856143A6 JET PUMP ASSEMBLYJET PUMP ASSEMBLY
-
1855767T60 HOUSING, PumpHOUSING, Pump
-
232-827490 HOSE, LubeHOSE, Lube
-
316-855840 STUD, (.312-18 x 1.81)STUD, (.312-18 x 1.81)
-
411-82670910 NUT, (.312-18)NUT, (.312-18)
-
510-848497 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
647-855708T60 IMPELLERIMPELLER
-
780141260 HOUSING, IntakeHOUSING, Intake
-
88271882 LINERLINER
-
945-85576960 DRIVESHAFTDRIVESHAFT
-
1023-8271891 SLEEVESLEEVE
-
1111-8271901 NUTNUT
-
1212-36001 WASHERWASHER
-
1328-801405875 KEYKEY
-
1415-801404875 SHIM, ImpellerSHIM, Impeller
-
1514-801403875 TAB WASHERTAB WASHER
-
1610-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1710-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
18801410 BRACKET, Cable SupportBRACKET, Cable Support
-
1911-82670910 NUT, (.312-18)NUT, (.312-18)
-
2017-801407 PIN, DowelPIN, Dowel
-
2110-4010860 SCREW, (M10 x 60) Hex Flange - Stainless SteelSCREW, (M10 x 60) Hex Flange - Stainless Steel
-
2210-4010890 SCREW, (M10 x 90) Hex Flange - Stainless SteelSCREW, (M10 x 90) Hex Flange - Stainless Steel
-
2310-4010870 SCREW, (M10 x 70) Hex Flange - Stainless SteelSCREW, (M10 x 70) Hex Flange - Stainless Steel
-
2410-95802 SCREW, (.375-16 x 2.750) Stainless SteelSCREW, (.375-16 x 2.750) Stainless Steel
-
2512-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
