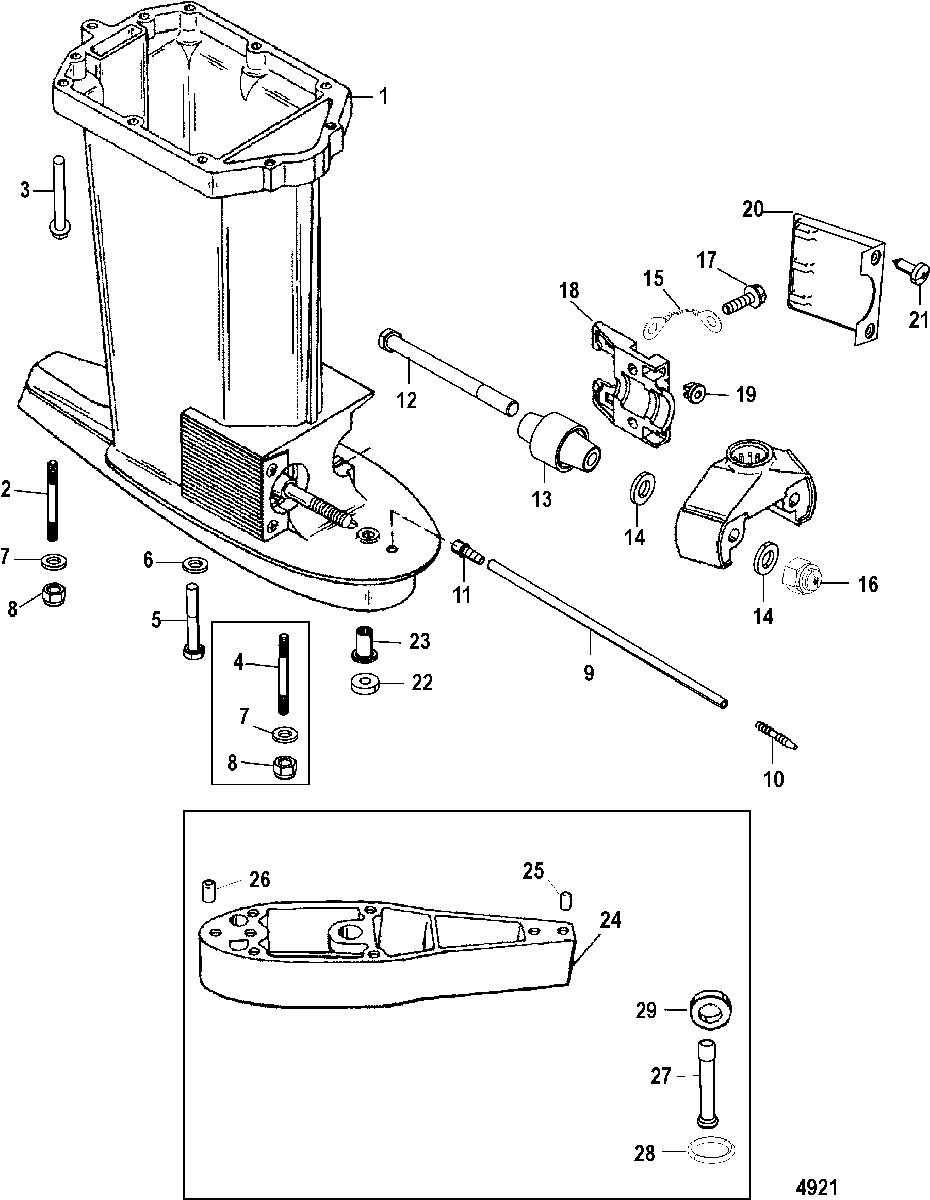

Driveshaft Housing для Mercury - 60 (3 CYL.) 0T980000 & Up
-
№АртикулНазвание
-
13516-816528A1 HOUSING ASSEMBLY, Driveshaft
(Short-15 Inch)HOUSING ASSEMBLY, Driveshaft
(Short-15 Inch) -
13510-9864T6 HOUSING, Driveshaft
(Long-20 Inch)HOUSING, Driveshaft
(Long-20 Inch) -
13516-816528A3 HOUSING ASSEMBLY, Driveshaft
(Jet 40/45)HOUSING ASSEMBLY, Driveshaft
(Jet 40/45) -
216-903507 STUD, (M10 x 60)
(Short/Long)STUD, (M10 x 60)
(Short/Long) -
216-903501 STUD, (M10 x 100)
(60 Bigfoot - Long)STUD, (M10 x 100)
(60 Bigfoot - Long) -
216-8M0034445 STUD, (M10 x 166)
(60 Bigfoot - LL)STUD, (M10 x 166)
(60 Bigfoot - LL) -
310-817430110 SCREW, (M10 x 110)SCREW, (M10 x 110)
-
416-8M0034446 STUD, (M10 x 124)
(60 Bigfoot - LL - Front)STUD, (M10 x 124)
(60 Bigfoot - LL - Front) -
416-8M0034425 STUD, (M10 x 120)
(55 LL - Front)STUD, (M10 x 120)
(55 LL - Front) -
510-4000380 SCREW, (M10 x 45)
(Short/Long)(Non Jet Models)SCREW, (M10 x 45)
(Short/Long)(Non Jet Models) -
612-856774 WASHER, (.406 x .750 x .105) Stainless Steel
(Non Bigfoot Models)WASHER, (.406 x .750 x .105) Stainless Steel
(Non Bigfoot Models) -
612-856774 WASHER, (.406 x .750 x .105) Stainless Steel
(Bigfoot Models)WASHER, (.406 x .750 x .105) Stainless Steel
(Bigfoot Models) -
712-856774 WASHER, (.406 x .750 x .105) Stainless Steel
(Non Bigfoot Models)WASHER, (.406 x .750 x .105) Stainless Steel
(Non Bigfoot Models) -
712-856774 WASHER, (.406 x .750 x .105) Stainless Steel
(Bigfoot Models)WASHER, (.406 x .750 x .105) Stainless Steel
(Bigfoot Models) -
811-40140 NUT, (M10)
(Non Bigfoot Models)NUT, (M10)
(Non Bigfoot Models) -
811-40140 NUT, (M10)
(Bigfoot Models)NUT, (M10)
(Bigfoot Models) -
922-85822A7 SPEEDOMETER PICK UPSPEEDOMETER PICK UP
-
1022-85822T CONNECTOR, StraightCONNECTOR, Straight
-
1122-13035002 FITTINGFITTING
-
1210-8M0010931 SCREW, (M12 x 1.75)SCREW, (M12 x 1.75)
-
1342930A1 MOUNT ASSEMBLY, LowerMOUNT ASSEMBLY, Lower
-
1412-20959 WASHERWASHER
-
1588238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1611-43528 NUT, (M12)NUT, (M12)
-
1710-40011149 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
188M0036730 CLAMPCLAMP
-
1911-35521 NUTNUT
-
20100-8M4500752 COVER, Black
(Black)COVER, Black
(Black) -
2110-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
2223-813745 SPACERSPACER
-
2223-8137451 SPACER (LL)SPACER (LL)
-
2343585 COUPLINGCOUPLING
-
24816696A3 SPACER
(Black-55)SPACER
(Black-55) -
24816696T5 SPACER
(Black-60)SPACER
(Black-60) -
2517-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
2617-8M0084244 PIN, Dowel - With Hole (.375 x .625)PIN, Dowel - With Hole (.375 x .625)
-
27817401A1 TUBE ASSEMBLY, Water
(55)TUBE ASSEMBLY, Water
(55) -
2825-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
2926-821093 SEALSEAL
