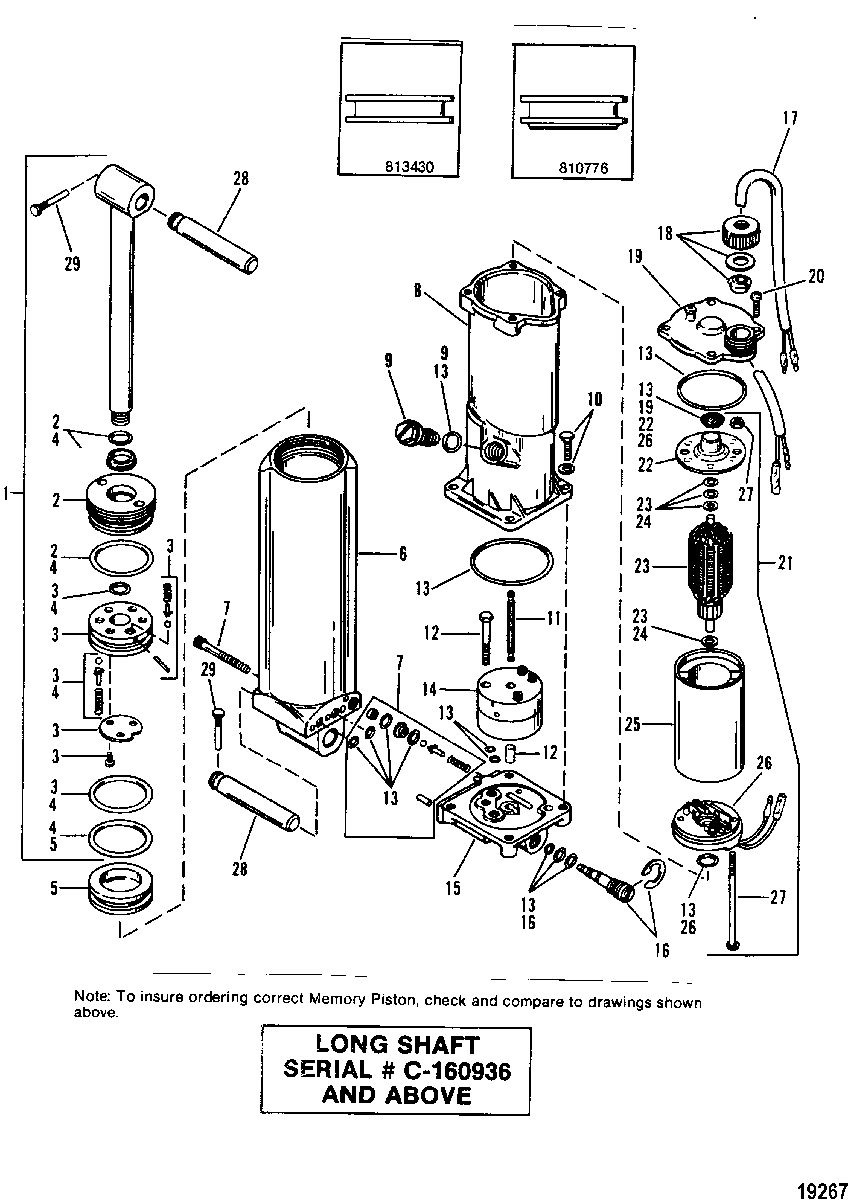

Electric Trim Components(Long-S/N-0C160936 & Up) для Mercury - 60 (3 CYL.) 9469200 THRU 9683054
-
№АртикулНазвание
-
1813427 SHOCK ROD ASSEMBLY KITSHOCK ROD ASSEMBLY KIT
-
2813428 END CAP ASSEMBLY, Trim CylinderEND CAP ASSEMBLY, Trim Cylinder
-
3813429 PISTON ASSEMBLY, ShockPISTON ASSEMBLY, Shock
-
4813432A1 CYLINDER REBUILD KITCYLINDER REBUILD KIT
-
5893903A01 PISTON KIT, Trim Memory (SEE NOTE)PISTON KIT, Trim Memory (SEE NOTE)
-
5810776 PISTON KIT, Memory (SEE NOTE)PISTON KIT, Memory (SEE NOTE)
-
6810777 CYLINDER KITCYLINDER KIT
-
7893919A01 SCREW AND SEAL KIT, CYLINDERSCREW AND SEAL KIT, CYLINDER
-
8813434A1 RESERVOIRRESERVOIR
-
922-8134351 PLUG KITPLUG KIT
-
1010-813436 SCREW KITSCREW KIT
-
11813437 DRIVESHAFTDRIVESHAFT
-
12813438 SCREW AND PIN KITSCREW AND PIN KIT
-
1325-813439A3 SEAL KITSEAL KIT
-
14811227 PUMPPUMP
-
15813441 MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
16893929A01 RELIEF VALVE KITRELIEF VALVE KIT
-
1784-811698 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1884-811698 BEZEL KITBEZEL KIT
-
19813445 CAP KIT, ReservoirCAP KIT, Reservoir
-
2010-813446 SCREW, CAPSCREW, CAP
-
21813447 MOTOR KITMOTOR KIT
-
22813448 END CAPEND CAP
-
23813449A1 ARMATUREARMATURE
-
2412-813450 THRUST WASHER KITTHRUST WASHER KIT
-
25813451 SHELL AND MAGNET KITSHELL AND MAGNET KIT
-
26813452 END FRAME KITEND FRAME KIT
-
2710-813453 BOLT AND NUT KITBOLT AND NUT KIT
-
2817-19607 PINPIN
-
2917-821539 PIN, GroovePIN, Groove
-
3019686 BRACKETBRACKET
-
3184-19758A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
3287-18211 RELAY SWITCHRELAY SWITCH
-
3410-20401 SCREW, (.190-24 x .38)SCREW, (.190-24 x .38)
-
-854472A3 PUMP ASSEMBLY, Trim, COMPLETE
INCLUDES ALL PARTS ON THIS PAGEPUMP ASSEMBLY, Trim, COMPLETE
INCLUDES ALL PARTS ON THIS PAGE
