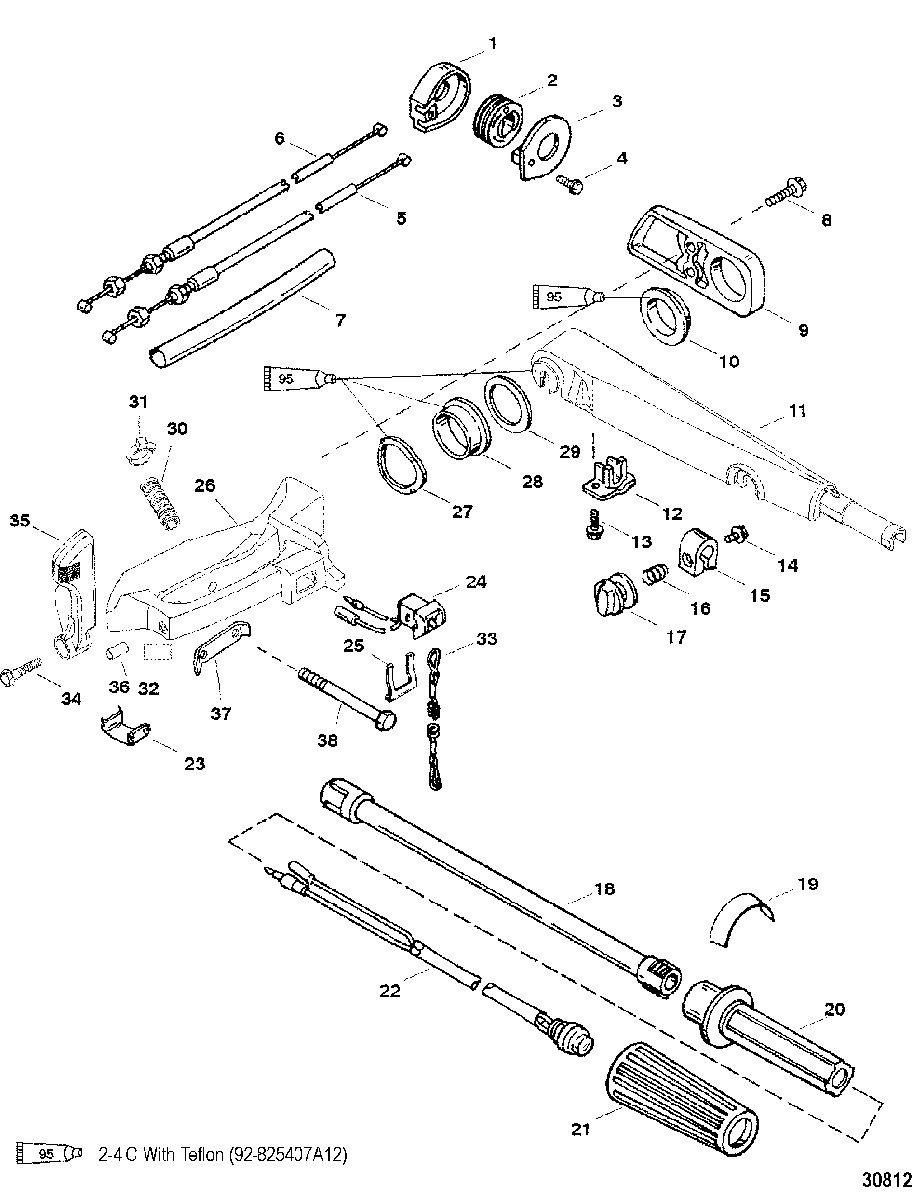

TILLER HANDLE для Mercury - 60 (4-STROKE)(4 CYL.) 0P094500 THRU 0P206999
-
№АртикулНазвание
-
1822148T06 COVER KITCOVER KIT
-
2822150 PULLEYPULLEY
-
3NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
410-878608 SCREW, (#10-16 x .500)
(SELF TAPPING)SCREW, (#10-16 x .500)
(SELF TAPPING) -
54324210 CABLE ASSEMBLY, Throttle (30.50 Inches)CABLE ASSEMBLY, Throttle (30.50 Inches)
-
64324211 CABLE ASSEMBLY, Throttle (41.50 Inches)CABLE ASSEMBLY, Throttle (41.50 Inches)
-
785-960099 SLEEVE, (12.00 Inches)SLEEVE, (12.00 Inches)
-
810-82526225 SCREW, (M8 x 25 MM)SCREW, (M8 x 25 MM)
-
98M0072298 COVERCOVER
-
1023-821477 BUSHINGBUSHING
-
11828813T1 ARM, Steering HandleARM, Steering Handle
-
12822441 RETAINERRETAINER
-
1310-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
15892995 LOCK, ThrottleLOCK, Throttle
-
1624-96203 SPRINGSPRING
-
17821972T KNOB, ThrottleKNOB, Throttle
-
188M0138696 TILLER TUBETILLER TUBE
-
1937-8242004 DECALDECAL
-
20821465 HANDLE, ThrottleHANDLE, Throttle
-
2199589003 GRIPGRIP
-
2287-8M0104614 SWITCH, StopSWITCH, Stop
-
23823687 CLIPCLIP
-
2487-11083A31 SWITCH, StopSWITCH, Stop
-
258M0032846 RETAINER, BrassRETAINER, Brass
-
26821455A4 BRACKET, TillerBRACKET, Tiller
-
2713-826792 WAVE WASHERWAVE WASHER
-
2823-821477 BUSHINGBUSHING
-
2912-827314 WASHERWASHER
-
3032-828547633 CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk)
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3237-82409316 DECAL, F-N-R ShiftDECAL, F-N-R Shift
-
338M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
3410-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
35830180A01 HANDLEHANDLE
-
3623-830181 BUSHINGBUSHING
-
3714-8M0009820 TAB WASHERTAB WASHER
-
3810-82484890 SCREW, (M10 x 90)SCREW, (M10 x 90)
