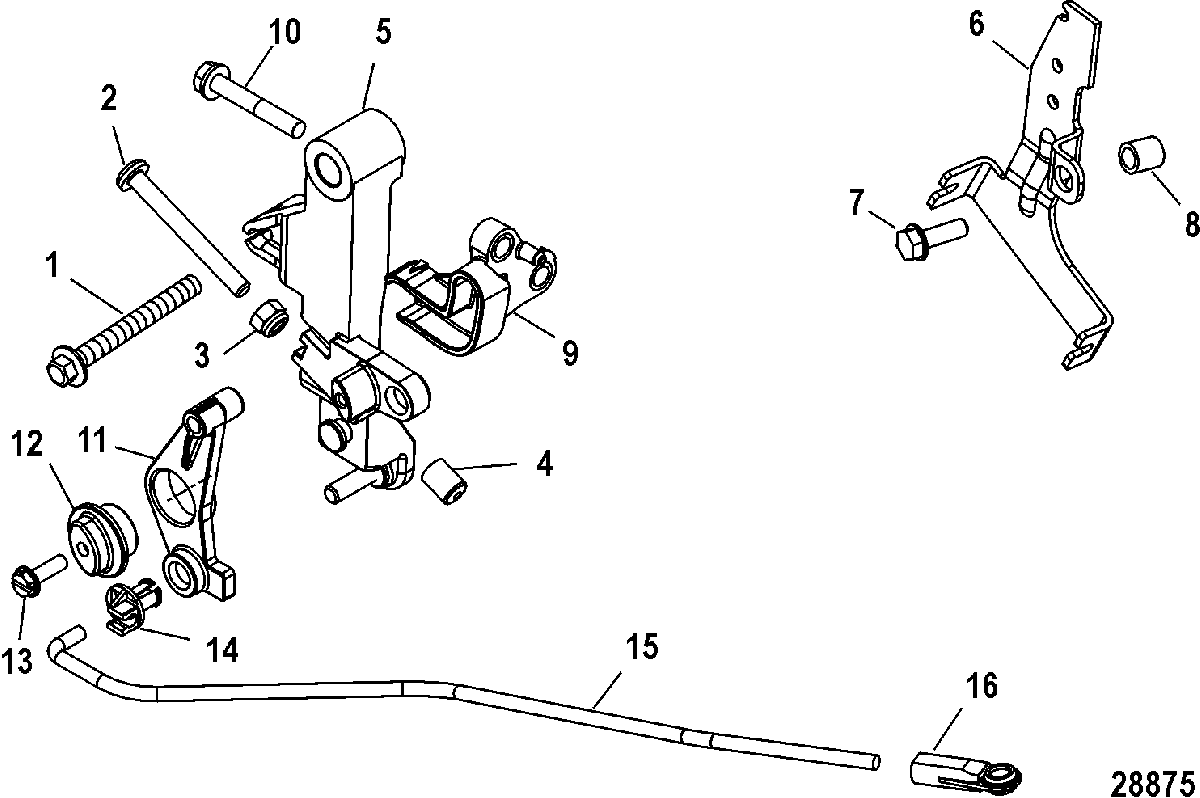

Throttle Linkage, Tiller для Mercury - 60 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
110-4010770 SCREW, (M8 x 70)SCREW, (M8 x 70)
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
6830294T3 BRACKETBRACKET
-
710-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
823-825078 BUSHINGBUSHING
-
9879865 CAM, ThrottleCAM, Throttle
-
1010-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
11883006A1 ARM ASSEMBLY, ThrottleARM ASSEMBLY, Throttle
-
1223-883005 BUSHINGBUSHING
-
1310-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
1423-932481 BUSHINGBUSHING
-
15893775A01 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
168M0084742 SOCKETSOCKET
-
-880093A03 TILLER HANDLE KIT, Remote Control to Tiller HandleTILLER HANDLE KIT, Remote Control to Tiller Handle
