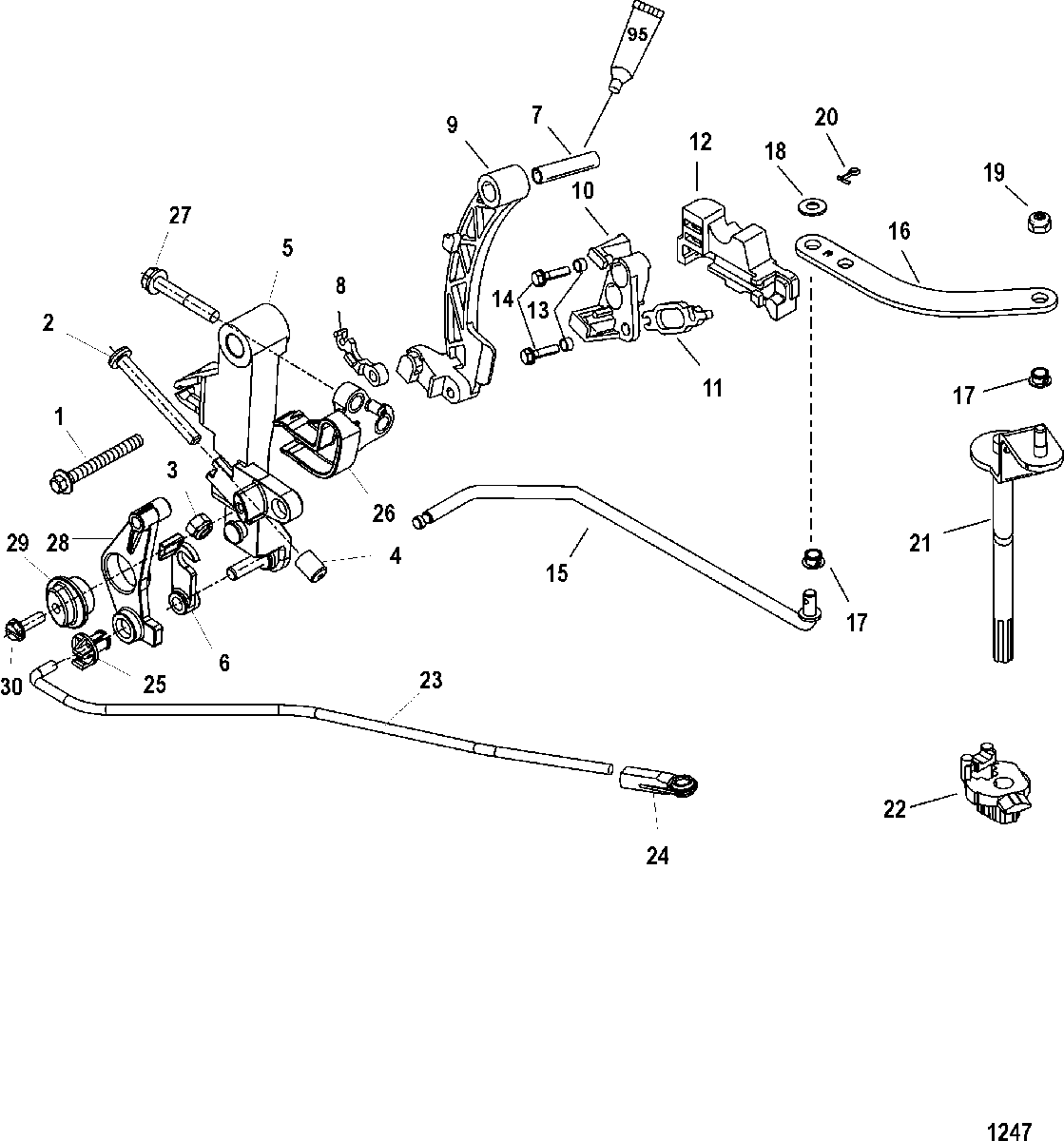

Linkage(Remote) для Mercury - 60 EFI (4 CYL.)(4-STROKE) 0T409000 THRU 1B344306
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
6883160 RETAINERRETAINER
-
723-825078 BUSHINGBUSHING
-
8822459 RETAINERRETAINER
-
98259571 LEVER, ShiftLEVER, Shift
-
10827706A4 BRACKET
SN# USA-0T549732 & BelowBRACKET
SN# USA-0T549732 & Below -
10827706A4 BRACKET
SN# USA-0T549733/BEL-All & UpBRACKET
SN# USA-0T549733/BEL-All & Up -
1198889 LATCHLATCH
-
12NSS NOT SOLD SEPARATE, Guide-Shift Rod
SN# USA-0T549733/BEL-ALL & UpNOT SOLD SEPARATE, Guide-Shift Rod
SN# USA-0T549733/BEL-ALL & Up -
12827706A4 GUIDE, Shift Rod
SN# USA-0T549732 & BelowGUIDE, Shift Rod
SN# USA-0T549732 & Below -
1323-15885 SLEEVESLEEVE
-
1410-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
15893777 SHIFT RODSHIFT ROD
-
16893769A01 SHIFT LINKSHIFT LINK
-
1723-48475 BUSHINGBUSHING
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2018-210711 COTTER PINCOTTER PIN
-
21850166T06 LEVER ASSEMBLY, Shift ShaftLEVER ASSEMBLY, Shift Shaft
-
2223-850165 BUSHINGBUSHING
-
23893775A01 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
248M0084742 SOCKETSOCKET
-
2523-932481 BUSHINGBUSHING
-
26879865 CAM, ThrottleCAM, Throttle
-
2710-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
28883006A1 ARM ASSEMBLY, ThrottleARM ASSEMBLY, Throttle
-
2923-883005 BUSHINGBUSHING
-
3010-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
