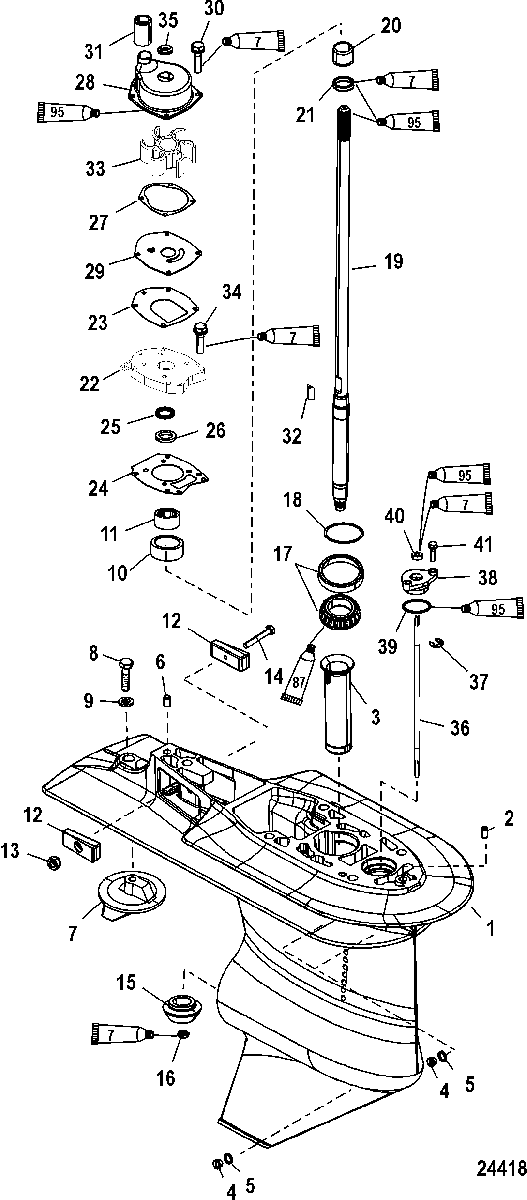

Gear Housing(Driveshaft-2.33:1)(Serial #1C033811 & Up) для Mercury - 60 EFI (4 CYL.)(4-STROKE) 1C000001 THRU 1C050251
-
№АртикулНазвание
-
-893681T03 GEAR HOUSING ASSEMBLY, Complete (12/28)(2.33:1)GEAR HOUSING ASSEMBLY, Complete (12/28)(2.33:1)
-
11600-8M0118594 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
217-8M0084244 PIN, Dowel - With Hole (.375 x .625) , FrontPIN, Dowel - With Hole (.375 x .625) , Front
-
343046 TUBE, OilerTUBE, Oiler
-
410-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
526-830749 SEALSEAL
-
617-43044 PIN, Dowel - Without Hole (.375 x .625), RearPIN, Dowel - Without Hole (.375 x .625), Rear
-
731640T07 TRIM TABTRIM TAB
-
810-825427 SCREW, (.437-14 x 1.250) Stainless SteelSCREW, (.437-14 x 1.250) Stainless Steel
-
912-451761 WASHER, (.453 x .812 x .105) Black OxideWASHER, (.453 x .812 x .105) Black Oxide
-
1043040T1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
11NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
1297-826134Q ANODEANODE
-
1311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1410-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
15NSS NOT SOLD SEPARATE, Pinion Gear (Part of Forward Gear Kit)NOT SOLD SEPARATE, Pinion Gear (Part of Forward Gear Kit)
-
1611-35921 NUT, (.625-18)NUT, (.625-18)
-
1731-883047A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1815-8M0063265 SHIM SETSHIM SET
-
1945-859105A1 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
2042461A1 SLEEVE/RING KITSLEEVE/RING KIT
-
21NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
2246-8M0113262 COVER ASSEMBLY, Water PumpCOVER ASSEMBLY, Water Pump
-
2327-430331 GASKETGASKET
-
2427-430472 GASKETGASKET
-
2526-43036 SEAL, Oil, LowerSEAL, Oil, Lower
-
2626-43035 SEAL, Oil, UpperSEAL, Oil, Upper
-
2727-8172771 GASKETGASKET
-
28817275A2 HOUSING KIT, Upper Water PumpHOUSING KIT, Upper Water Pump
-
298172761 FACEPLATEFACEPLATE
-
3010-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
318M0109700 COUPLERCOUPLER
-
3228-8M0032833 KEYKEY
-
3347-43026T2 IMPELLERIMPELLER
-
3410-82684425 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3526-816575A2 SEAL, FaceSEAL, Face
-
36884563A01 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
3753-29641 E RINGE RING
-
3823-43052A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
3925-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
4026-8164641 SEAL, OilSEAL, Oil
-
4110-82684425 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4223-891637 BUSHINGBUSHING
-
-26-43035A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-46-8M0113799 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
-
-31-803496T2 BEARING/SEAL KITBEARING/SEAL KIT
