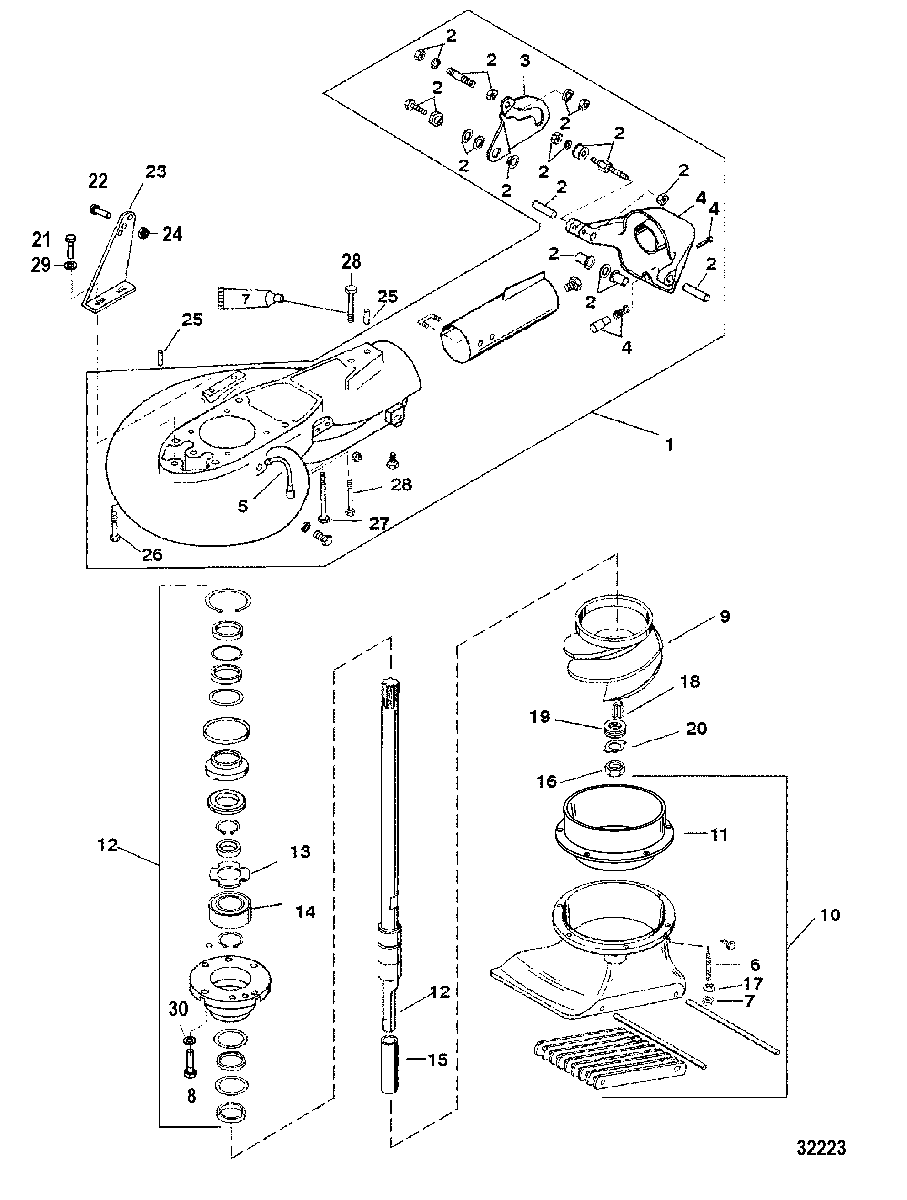

Jet Unit для Mercury - 60 EFI (4 CYL.)(4-STROKE) 1C050252 & Up
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Jet Unit-CompleteNOT SOLD SEPARATE, Jet Unit-Complete
-
1855767T01 HOUSING, PumpHOUSING, Pump
-
2878377T01 LINKAGE KIT, ShiftLINKAGE KIT, Shift
-
3878382 CAMCAM
-
4878380T01 REVERSE GATE, With BumperREVERSE GATE, With Bumper
-
532-827490 HOSE, LubeHOSE, Lube
-
616-8M0034456 STUD, (M8 x 48)STUD, (M8 x 48)
-
711-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
810-4007153 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
947-855708T60 IMPELLERIMPELLER
-
10801412T02 HOUSING, IntakeHOUSING, Intake
-
11827188T02 LINERLINER
-
1245-855769T01 DRIVESHAFTDRIVESHAFT
-
1312-8796522 THRUST WASHERTHRUST WASHER
-
1430-8796531 BEARING, BallBEARING, Ball
-
1523-8271891 SLEEVESLEEVE
-
1611-8271901 NUTNUT
-
1712-36001 WASHERWASHER
-
1828-801405875 KEYKEY
-
1915-801404875 SHIM, ImpellerSHIM, Impeller
-
2014-801403875 TAB WASHERTAB WASHER
-
2110-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2210-8M0009111 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
23898101382 BRACKET, Cable SupportBRACKET, Cable Support
-
2411-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
2517-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
2610-1995660 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
2710-4010890 SCREW, (M10 x 90)SCREW, (M10 x 90)
-
2810-1995670 SCREW, (M10 x 70)SCREW, (M10 x 70)
-
2912-4002316 WASHERWASHER
-
3012-4002317 WASHERWASHER
