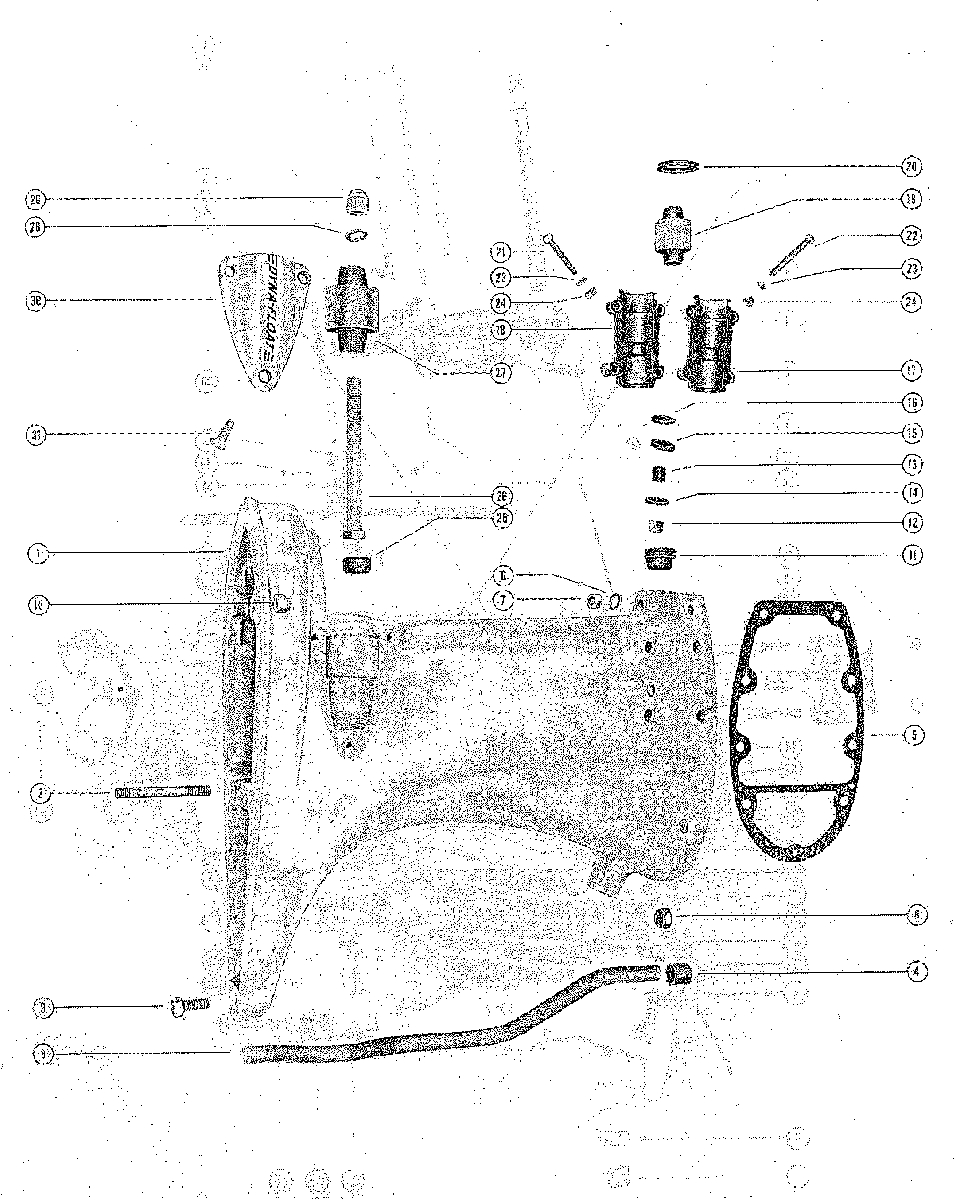

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 600 (6 CYL.) 1303411 THRU 1542744
-
№АртикулНазвание
-
11529-1564A2 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
11533-1565A1 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-46911 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")
-
332-26490 TUBE, WATER INLETTUBE, WATER INLET
-
332-27867 TUBE, WATER INLETTUBE, WATER INLET
-
426-26207 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
527-26198 GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWLGASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
-
612-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
711-8M0042636 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
811-23161 NUT, POWERHEADS STUDSNUT, POWERHEADS STUDS
-
910-29081 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (7/16")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (7/16")
-
1011-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (7/16")NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS (7/16")
-
1125305 CAP, RUBBER - UPPER MOUNT BOLT NUTCAP, RUBBER - UPPER MOUNT BOLT NUT
-
1211-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
1323-27725 SPACER, UPPER MOUNT BOLTSPACER, UPPER MOUNT BOLT
-
1412-27728 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1512-27726 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
1612-27727 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1726218 COOVER, UPPER MOUNT - OUTSIDE HALFCOOVER, UPPER MOUNT - OUTSIDE HALF
-
1826217 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
1930463 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2024929 PACKING, "U" CUPPACKING, "U" CUP
-
2110-20012 SCREW, UPPER MOUNT COVER (1 5/8")SCREW, UPPER MOUNT COVER (1 5/8")
-
2210-28775 SCREW, UPPER MOUNT COVER (2 1/4")SCREW, UPPER MOUNT COVER (2 1/4")
-
2210-29389 SCREW, UPPER MOUNT COVER (1 7/8")SCREW, UPPER MOUNT COVER (1 7/8")
-
2312-29245 WASHER, UPPER MOUNT COVER SCREWSWASHER, UPPER MOUNT COVER SCREWS
-
2411-35888 NUT, UPPER MOUNT COVER SCREWSNUT, UPPER MOUNT COVER SCREWS
-
2525067 BUMPER, RUBBER - MOUNTING SCREWBUMPER, RUBBER - MOUNTING SCREW
-
2610-24874 SCREW, UPPER MOUNT (5 1/2")SCREW, UPPER MOUNT (5 1/2")
-
2726211 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2812-24872 WASHER, MOUNTING SCREWWASHER, MOUNTING SCREW
-
2911-25096 NUT, MOUNTING SCREWNUT, MOUNTING SCREW
-
3026336 COVER, LOWER MOUNT (PORT SIDE)COVER, LOWER MOUNT (PORT SIDE)
-
3026337 COVER, LOWER MOUNT (STARBOARD SIDE)COVER, LOWER MOUNT (STARBOARD SIDE)
-
3110-29256 SCREW, LOWER MOUNT COVER FASTENINGSCREW, LOWER MOUNT COVER FASTENING
