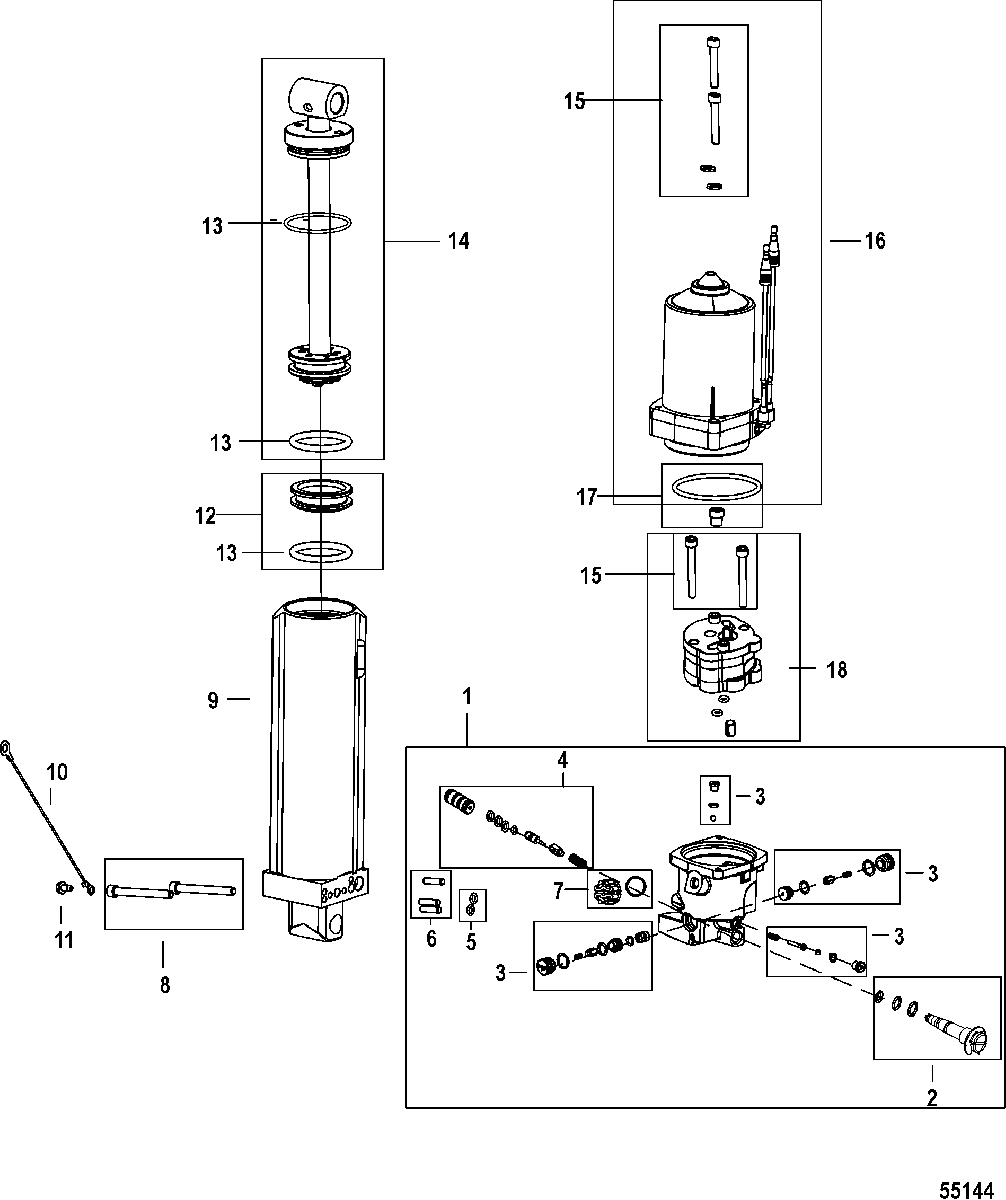

Power Trim Assembly - Components, 2B092563 and Up для Mercury - 65 JET (3 CYL.) 0T980000 THRU 0T999999
-
№АртикулНазвание
-
18M0089943 MANIFOLD KITMANIFOLD KIT
-
2893929A01 VALVE KIT, ReliefVALVE KIT, Relief
-
38M0089945 VALVE KITVALVE KIT
-
48M0090404 VALVE KIT - (TRIM LIMIT)VALVE KIT - (TRIM LIMIT)
-
5833063 O-RINGO-RING
-
68M0055260 DOWEL PINSDOWEL PINS
-
719-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
810-833047 SCREW, (.250-20 x 2.250)SCREW, (.250-20 x 2.250)
-
98M0089941 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
1088238A13 CABLE ASSEMBLYCABLE ASSEMBLY
-
118M6002690 SCREWSCREW
-
12810776A1 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
1325-893902A01 O-RING KITO-RING KIT
-
148M0089942 SHOCK ROD KITSHOCK ROD KIT
-
1510-8M0089946 SCREW KIT (COMPLETE TRIM)SCREW KIT (COMPLETE TRIM)
-
168M0089940 MOTOR KITMOTOR KIT
-
178M0090403 COUPLING / DRIVESHAFT KITCOUPLING / DRIVESHAFT KIT
-
188M0089944 PUMP ASSEMBLYPUMP ASSEMBLY
-
-25-8M0089947 O-RING KIT, Power TrimO-RING KIT, Power Trim
