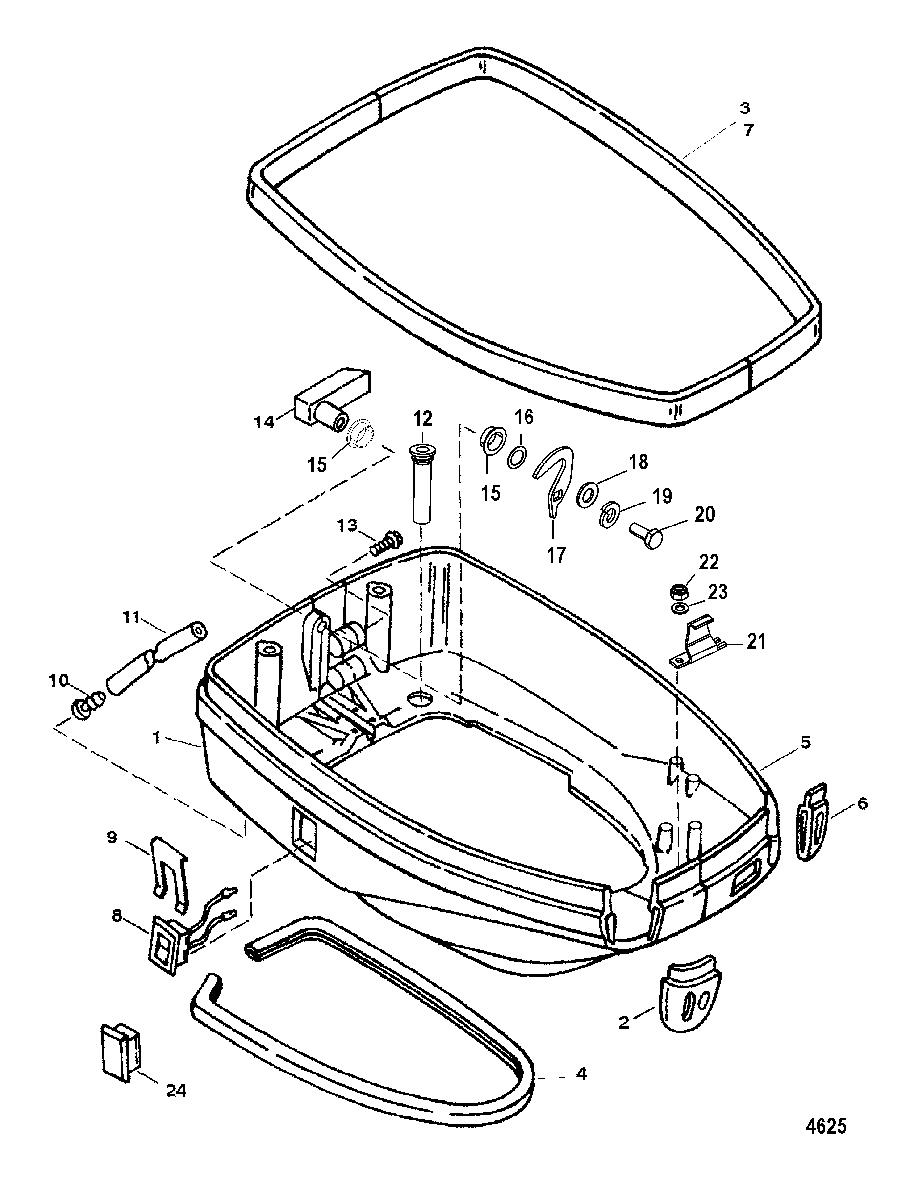

Bottom Cowl для Mercury - 65 JET (3 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
1100-8M0113918 BOTTOM COWL ASSEMBLY, StarboardBOTTOM COWL ASSEMBLY, Starboard
-
225-822556003 GROMMET (Starboard)GROMMET (Starboard)
-
38M0109216 SEAL, (36.00 Inches)SEAL, (36.00 Inches)
-
48M0043167 SEAL, Lower Cowl (44.75 Inches)SEAL, Lower Cowl (44.75 Inches)
-
5100-8M0113919 BOTTOM COWL ASSEMBLY, PortBOTTOM COWL ASSEMBLY, Port
-
625-822555001 GROMMET (Port)GROMMET (Port)
-
78M0109216 SEAL, (36.00 Inches)SEAL, (36.00 Inches)
-
887-8M0042301 SWITCH ASSEMBLY
(Power Trim)SWITCH ASSEMBLY
(Power Trim) -
98M0032848 RETAINERRETAINER
-
1022-813613 FITTINGFITTING
-
1132-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 28.00 Inch Length)TUBING, (.312) (70.00 Inches Bulk) (Cut to 28.00 Inch Length)
-
1221-817519A2 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
1310-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
148M0041366 HANDLE
(Black)HANDLE
(Black) -
1523-812707 BUSHINGBUSHING
-
1613-F2047 WASHER, WaveWASHER, Wave
-
178M0001081 CAMCAM
-
1812-4002316 WASHERWASHER
-
1913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2010-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
21822363T1 RETAINERRETAINER
-
2211-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2312-4002316 WASHERWASHER
-
24812830T01 PLUG
(Non Power Trim/Manual Tilt Assist)PLUG
(Non Power Trim/Manual Tilt Assist)
