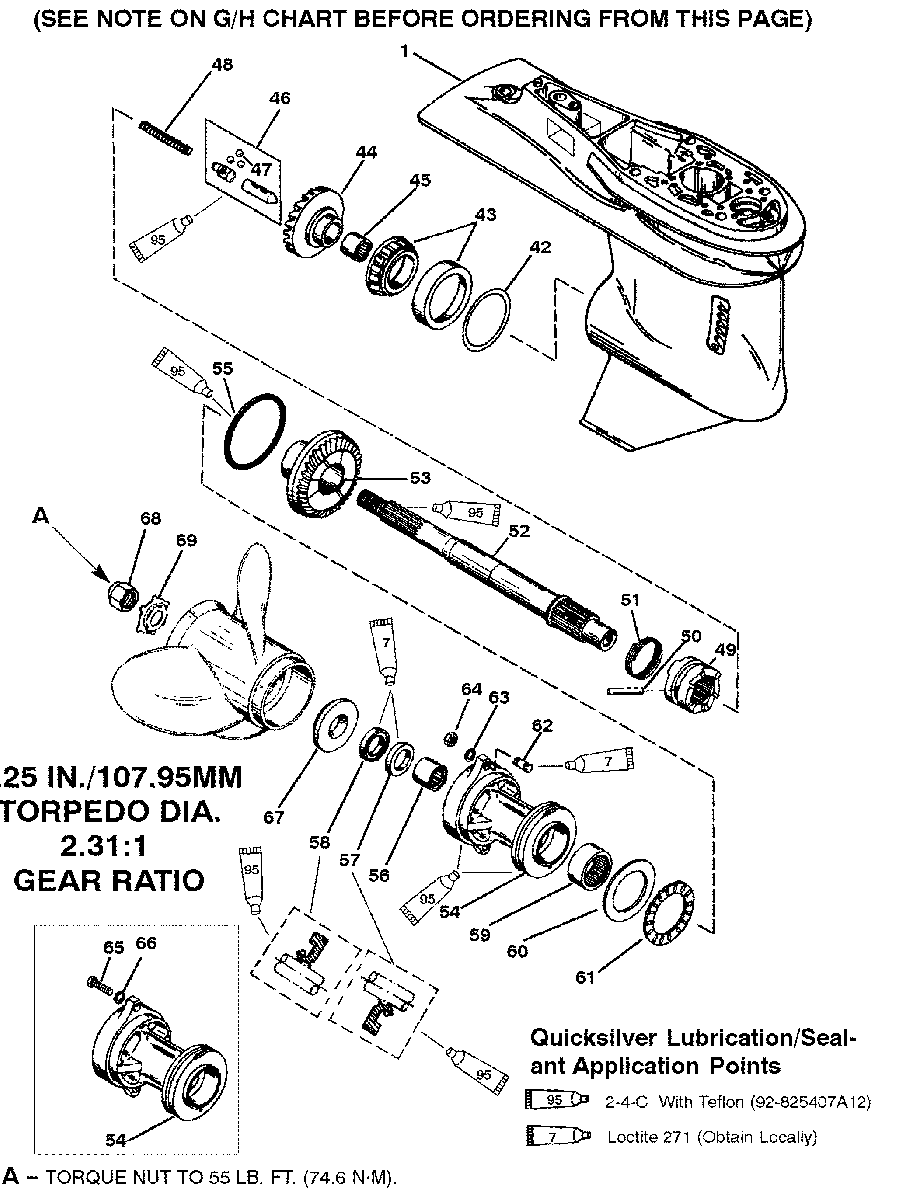

GEAR HOUSING (PROP SHAFT)(3 JAW REVERSE CLUTCH) для Mercury - 65 JET 0D283222 THRU 0G760299
-
№АртикулНазвание
-
11667-9011T73 GEAR HOUSING
(BLACK)GEAR HOUSING
(BLACK) -
11667-9011T73 GEAR HOUSING
(GRAY)GEAR HOUSING
(GRAY) -
11667-9011T73 GEAR HOUSING
(TRACKER-GRAPHITE GRAY)GEAR HOUSING
(TRACKER-GRAPHITE GRAY) -
4215-8M0063266 SHIM ASSEMBLYSHIM ASSEMBLY
-
4331-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
4443-12634T02 FORWARD GEAR (30 TEETH)FORWARD GEAR (30 TEETH)
-
4531-30895T ROLLER BEARINGROLLER BEARING
-
46850315A1 CAM FOLLOWER ASSEMBLYCAM FOLLOWER ASSEMBLY
-
4730-44530 BALLBALL
-
4824-30622 SPRINGSPRING
-
4952-822539T CLUTCHCLUTCH
-
5017-8M0100263 CROSS PINCROSS PIN
-
5124-30893 SPRINGSPRING
-
5244-12238T PROPELLER SHAFTPROPELLER SHAFT
-
5343-12635T REVERSE GEAR (30 TEETH)REVERSE GEAR (30 TEETH)
-
5412596T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
5525-861844 O-RINGO-RING
-
5631-30956T ROLLER BEARINGROLLER BEARING
-
5726-70080 OIL SEAL (INNER)OIL SEAL (INNER)
-
5826-70081 OIL SEAL (OUTER)OIL SEAL (OUTER)
-
5931-12578T ROLLER BEARINGROLLER BEARING
-
6012-12577 THRUST WASHERTHRUST WASHER
-
6131-12576 THRUST BEARINGTHRUST BEARING
-
6216-8M0034456 STUD (M8 X 48)
DESIGN IISTUD (M8 X 48)
DESIGN II -
6312-8M0042642 WASHER
DESIGN IIWASHER
DESIGN II -
6411-401378 NUT
DESIGN IINUT
DESIGN II -
6510-4000354 SCREW
DESIGN ISCREW
DESIGN I -
6612-4002317 WASHER
DESIGN IWASHER
DESIGN I -
6713191Q01 THRUST HUB ASSEMBLY
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENTTHRUST HUB ASSEMBLY
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT -
6811-52707Q1 PROPELLER NUT ASSEMBLY
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENTPROPELLER NUT ASSEMBLY
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT -
6914-816629Q TAB WASHER GEAR HOUSING
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENTTAB WASHER GEAR HOUSING
THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT -
-26-43035A4 G/H SEAL KITG/H SEAL KIT
-
-27-43004A99 GASKET SETGASKET SET
