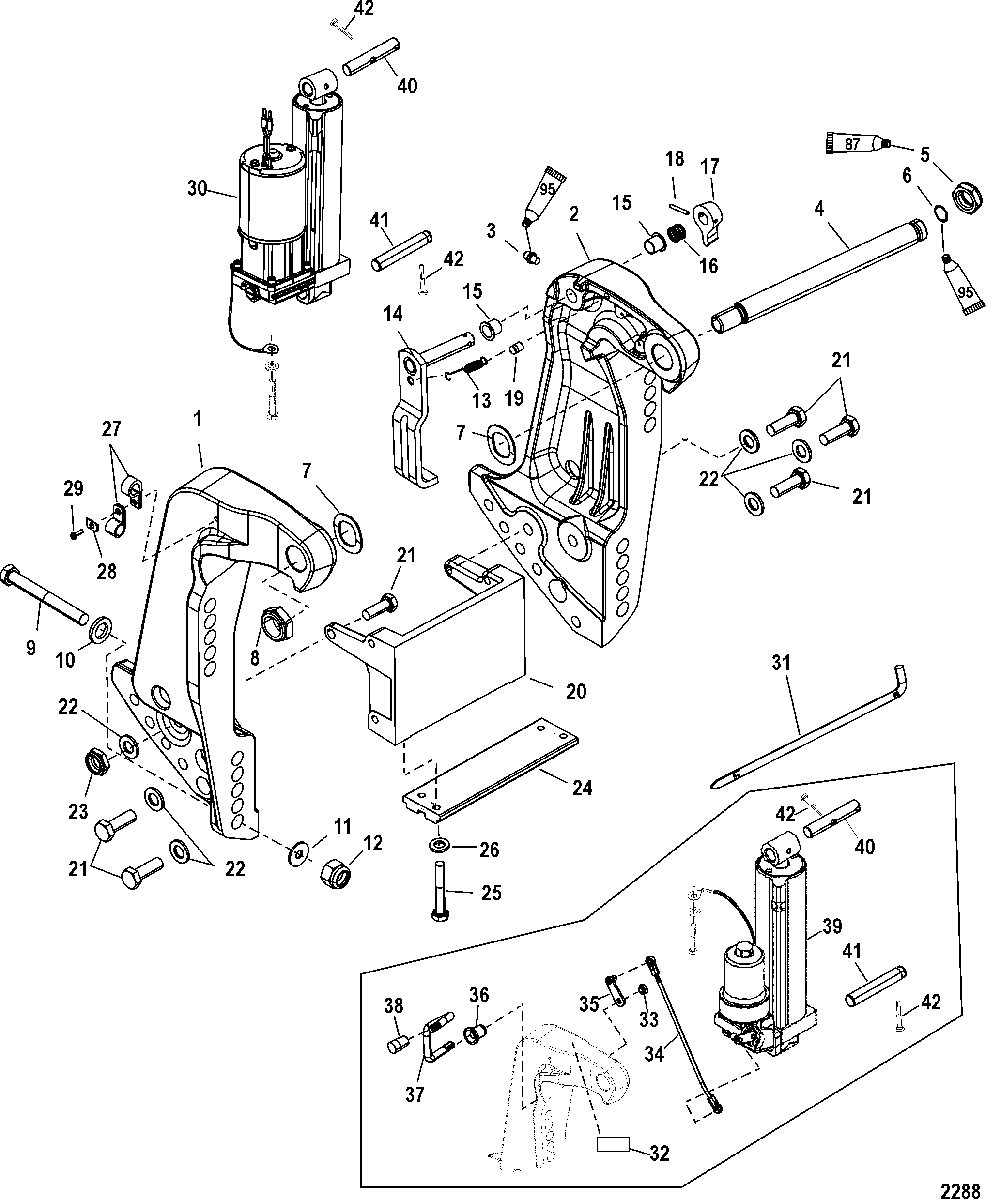

Transom Bracket(SN- USA 0T801000/ BEL 0P268000 and Up) для Mercury - 65 JET 0P017000 THRU 0P325499
-
№АртикулНазвание
-
11400-8M0045064 BRACKET, Transom
(Starboard)BRACKET, Transom
(Starboard) -
21400-8M0045064 BRACKET ASSEMBLY, Transom
(Port)BRACKET ASSEMBLY, Transom
(Port) -
322-98727 FITTING, Grease
(Port)FITTING, Grease
(Port) -
4826125A1 TUBE KIT, TiltTUBE KIT, Tilt
-
4826125A1 TILT TUBE
(Saltwater)TILT TUBE
(Saltwater) -
511-82671327 NUT, (1.00-14)NUT, (1.00-14)
-
511-826135 NUT, (1.00-14) Nylon Insert
(Saltwater)NUT, (1.00-14) Nylon Insert
(Saltwater) -
625-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
713-88750 WASHERWASHER
-
811-858869 NUT, (.875-14)NUT, (.875-14)
-
811-826164 NUT, (.875-14)
(Saltwater)NUT, (.875-14)
(Saltwater) -
910-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1012-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1211-82671117 NUT, (.500-20)NUT, (.500-20)
-
1324-830899 SPRING, TensionSPRING, Tension
-
148M0109798 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
1523-65830 NYLINERNYLINER
-
1624-830900 SPRING, CompressionSPRING, Compression
-
1799633 KNOBKNOB
-
1817-99615 PIN, GroovePIN, Groove
-
1917-893709 PINPIN
-
208M0086406 BRACKET, AnchorBRACKET, Anchor
-
2110-858771 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
2212-4002319 WASHERWASHER
-
2311-40114 NUT, (M10 x 1.5)NUT, (M10 x 1.5)
-
2497-818298Q1 ANODEANODE
-
2510-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2754-22740 CLIP
(Power Trim Model)CLIP
(Power Trim Model) -
288M0084613 C WASHER
(Power Trim Model)C WASHER
(Power Trim Model) -
2910-878609 SCREW, (#10-16 x .600)
(Power Trim Model)SCREW, (#10-16 x .600)
(Power Trim Model) -
308M0090335 PUMP ASSEMBLY, Power Trim
(Breakdown Found on Power Trim Components)PUMP ASSEMBLY, Power Trim
(Breakdown Found on Power Trim Components) -
3117-8M0026068 PIN ASSEMBLY, Tilt Lock
(Manual Tilt)PIN ASSEMBLY, Tilt Lock
(Manual Tilt) -
3237-830253 DECAL, Tilt Lock
(Manual Tilt)DECAL, Tilt Lock
(Manual Tilt) -
3311-826709110 NUT, (.312-18) Stainless SteelNUT, (.312-18) Stainless Steel
-
348M0084731 LINK ROD
(Manual Tilt)LINK ROD
(Manual Tilt) -
35832042 ARM
(Manual Tilt)ARM
(Manual Tilt) -
3623-832040 BUSHING
(Manual Tilt)BUSHING
(Manual Tilt) -
37832039 LEVER, Tilt
(Manual Tilt)LEVER, Tilt
(Manual Tilt) -
388M0007469 TILT KNOB
(Manual Tilt)TILT KNOB
(Manual Tilt) -
39835249T1 MANUAL TILT ASSEMBLY
(Breakdown Found on Manual Tilt Components)MANUAL TILT ASSEMBLY
(Breakdown Found on Manual Tilt Components) -
4099625002 SHAFT, UpperSHAFT, Upper
-
4117-818898 PIN, AnchorPIN, Anchor
-
4217-821539 PIN, TrilobePIN, Trilobe
