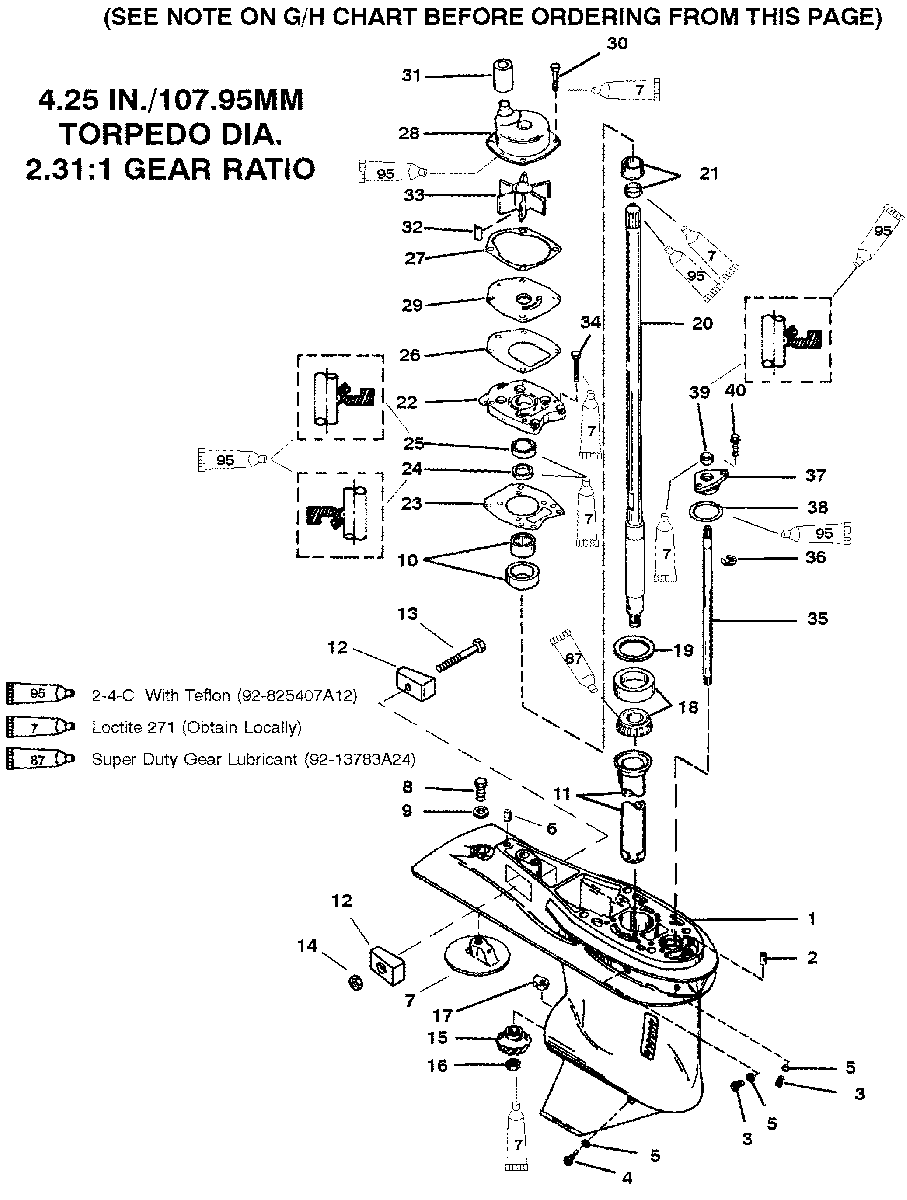

GEAR HOUSING (DRIVE SHAFT)(6 JAW REVERSE CLUTCH) для Mercury - 65 JET 9793577 THRU 0P016999
-
№АртикулНазвание
-
11667-9011G59 GEAR HOUSING
(BLACK) BASICGEAR HOUSING
(BLACK) BASIC -
11667-9011G59 GEAR HOUSING
(GRAY) BASICGEAR HOUSING
(GRAY) BASIC -
217-8M0084244 DOWEL PIN (FRONT)DOWEL PIN (FRONT)
-
310-79953Q04 DRAIN SCREWDRAIN SCREW
-
422-8M0058389 SCREW (MAGNETIC)SCREW (MAGNETIC)
-
512-191833 WASHER-SEALINGWASHER-SEALING
-
617-43044 DOWEL PIN (REAR)DOWEL PIN (REAR)
-
731640T07 TRIM TABTRIM TAB
-
810-825427 SCREW (7/16-14 X 1-1/4)SCREW (7/16-14 X 1-1/4)
-
912-45176 WASHERWASHER
-
1043040T1 CARRIERCARRIER
-
1143046 OILER TUBEOILER TUBE
-
1297-826134Q ANODEANODE
-
1310-4000333 SCREWSCREW
-
1411-401386 NUTNUT
-
1543-44484T PINION GEAR (ALSO PART OF 43-850033A2)(13 TEETH)PINION GEAR (ALSO PART OF 43-850033A2)(13 TEETH)
-
1611-35921 NUTNUT
-
17850307 SHIFT CAMSHIFT CAM
-
1831-42677A1 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
1915-8M0063265 SHIM ASSEMBLYSHIM ASSEMBLY
-
2045-43031A1 DRIVE SHAFT ASSEMBLY
(LONG-32 IN.)DRIVE SHAFT ASSEMBLY
(LONG-32 IN.) -
2045-43032A6 DRIVE SHAFT ASSEMBLY
(LL-34-1/2 IN.)DRIVE SHAFT ASSEMBLY
(LL-34-1/2 IN.) -
2045-43032A4 DRIVE SHAFT ASSEMBLY
(X-LONG-37 IN.)DRIVE SHAFT ASSEMBLY
(X-LONG-37 IN.) -
2142461A1 WEAR SLEEVE ASSEMBLYWEAR SLEEVE ASSEMBLY
-
2246-8M0113262 COVER ASSEMBLYCOVER ASSEMBLY
-
2327-430472 GASKETGASKET
-
2426-43036 OIL SEAL (LOWER)OIL SEAL (LOWER)
-
2526-43035 OIL SEAL (UPPER)OIL SEAL (UPPER)
-
2627-430331 GASKETGASKET
-
2727-8172771 GASKETGASKET
-
28817275A2 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
298172761 FACE PLATEFACE PLATE
-
3010-8248327 SCREW (M6 X 30)SCREW (M6 X 30)
-
31430232 SEALSEAL
-
3228-8M0032833 KEYKEY
-
3347-43026T2 IMPELLERIMPELLER
-
3410-8248326 SCREW (M6 X 25)SCREW (M6 X 25)
-
35853906A1 SHIFT SHAFT ASSEMBLY
(LONG-12 IN.)SHIFT SHAFT ASSEMBLY
(LONG-12 IN.) -
35853907A1 SHIFT SHAFT ASSEMBLY
(LL-14-1/2 IN.)SHIFT SHAFT ASSEMBLY
(LL-14-1/2 IN.) -
35853908A1 SHIFT SHAFT ASSEMBLY
(X-LONG-17 IN.)SHIFT SHAFT ASSEMBLY
(X-LONG-17 IN.) -
3653-29641 E-RINGE-RING
-
3723-43052A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
3825-457101 O-RINGO-RING
-
3926-8164641 OIL SEALOIL SEAL
-
4010-8248326 SCREW (M6 X 25)SCREW (M6 X 25)
-
-26-43035A4 G/H SEAL KITG/H SEAL KIT
-
-46-8M0113799 W/P REPAIR KITW/P REPAIR KIT
-
-27-43004A99 GASKET SETGASKET SET
