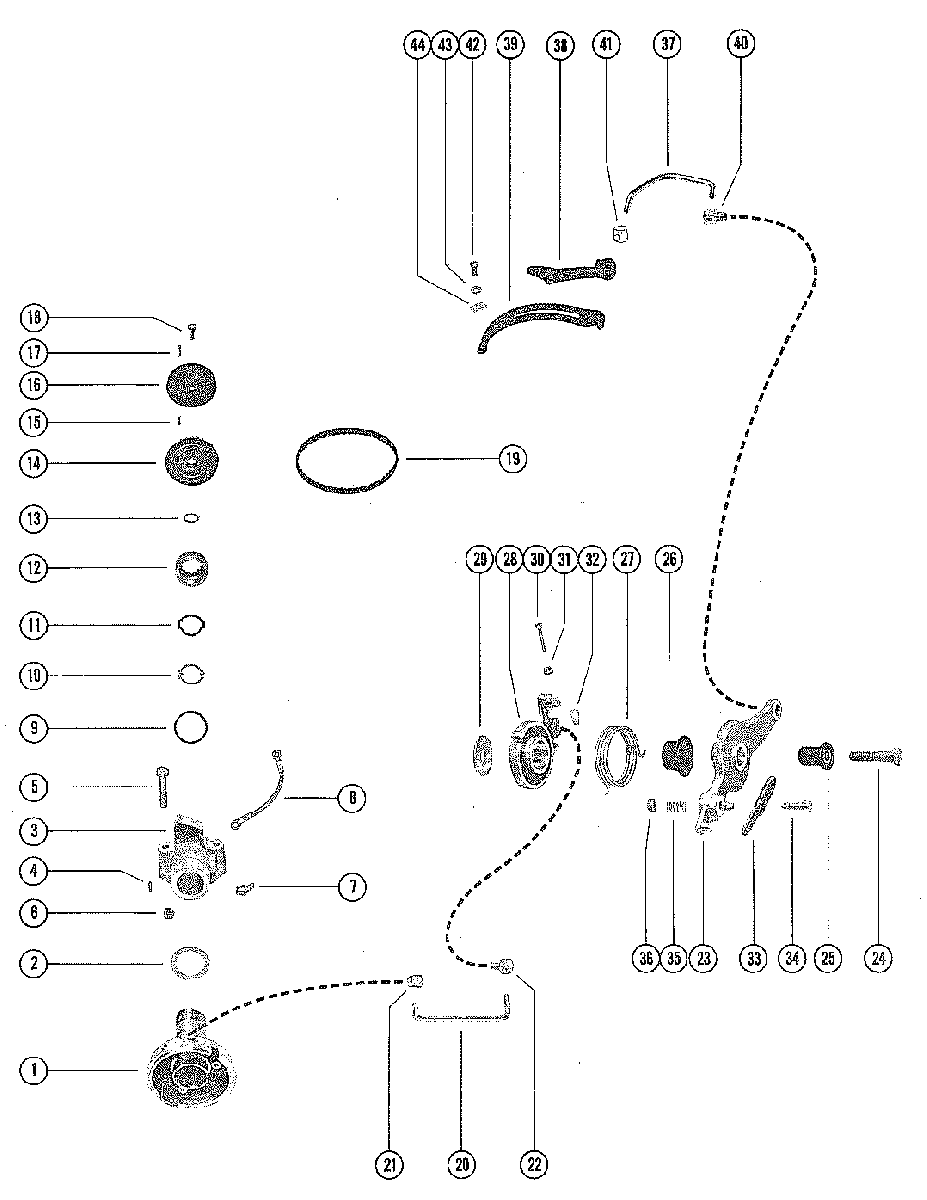

DISTRIBUTOR ADAPTOR AND THROTTLE LINKAGE для Mercury - 650 (3 CYL.) 3547987 THRU 4382056
-
№АртикулНазвание
-
1332-4797A9 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
212-60569 WASHER, DISTRIBUTOR ADAPTOR TO DISTRIBUTOR HOUSINGWASHER, DISTRIBUTOR ADAPTOR TO DISTRIBUTOR HOUSING
-
360576 ADAPTOR, DISTRIBUTOR
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOWADAPTOR, DISTRIBUTOR
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOW -
367304 ADAPTOR, DISTRIBUTOR
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UPADAPTOR, DISTRIBUTOR
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UP -
417-8M0084726 PIN, DISTRIBUTOR ADAPTOR TO CRANKCASE LOCATINGPIN, DISTRIBUTOR ADAPTOR TO CRANKCASE LOCATING
-
510-34438 SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE (2 3/8")SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE (2 3/8")
-
611-29250 NUT, DISTRIBUTOR ADAPTOR SCREWNUT, DISTRIBUTOR ADAPTOR SCREW
-
722-25094 FITTING, GREASE - DISTRIBUTOR ADAPTORFITTING, GREASE - DISTRIBUTOR ADAPTOR
-
884-60871A3 CABLE ASSEMBLY, ADAPTOR TO FRONT SUPPORT BRACKETCABLE ASSEMBLY, ADAPTOR TO FRONT SUPPORT BRACKET
-
912-27939 WASHER, DISTRIBUTOR ADAPTORWASHER, DISTRIBUTOR ADAPTOR
-
1014-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
1113-27959 WASHER, WAVE - DISTRIBUTOR ADAPTORWASHER, WAVE - DISTRIBUTOR ADAPTOR
-
1254567 CAP, DISTRIBUTOR HOUSINGCAP, DISTRIBUTOR HOUSING
-
1323-29909 SPACER, DRIVE PULLEYSPACER, DRIVE PULLEY
-
1429906A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
1517-29908 PIN, ROLL - FLANGE LOCATINGPIN, ROLL - FLANGE LOCATING
-
1629907 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
1728-29910 KEY, DISTRIBUTOR DRIVERKEY, DISTRIBUTOR DRIVER
-
1810-68554 SCREW, PULLEY CLAMPING (1/2")SCREW, PULLEY CLAMPING (1/2")
-
1920140 BELT, TIMINGBELT, TIMING
-
2064868 ROD, LINK - SPARK ADVANCEROD, LINK - SPARK ADVANCE
-
2160572 BARREL, NYLON - LINK ROD TO DISTRIBUTOR HOUSINGBARREL, NYLON - LINK ROD TO DISTRIBUTOR HOUSING
-
2227947 SWIVEL, LINK ROD TO SPARK ADVANCE LEVERSWIVEL, LINK ROD TO SPARK ADVANCE LEVER
-
2360578 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
2410-818165 SCREW, THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")SCREW, THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")
-
2523-55164 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2623-55171 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2724-55162 SPRING, RETURN - SPARK ADVANCE LEVERSPRING, RETURN - SPARK ADVANCE LEVER
-
2860579 LEVER, SPARK ADVANCELEVER, SPARK ADVANCE
-
2912-46765 WASHER, THROTTLE CONTROL LEVER SCREWWASHER, THROTTLE CONTROL LEVER SCREW
-
3010-69003 SCREW, SPARK ADVANCE ADJUSTING (1 1/4")SCREW, SPARK ADVANCE ADJUSTING (1 1/4")
-
3111-68219 NUT, SPARK ADVANCE ADJUSTING SCREWNUT, SPARK ADVANCE ADJUSTING SCREW
-
3248039 CAP, SPARK ADJUSTING SCREWCAP, SPARK ADJUSTING SCREW
-
3339483 LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
-
3410-69026 SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
-
3524-20099 SPRING, COMPRESSION - LATCH SCREWSPRING, COMPRESSION - LATCH SCREW
-
3611-826709109 NUT, LATCH ATTACHING SCREWNUT, LATCH ATTACHING SCREW
-
3764869 ROD, LINK - THROTTLE
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOWROD, LINK - THROTTLE
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOW -
3865914 CAM, NYLON - THROTTLE ACTUATOR
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOWCAM, NYLON - THROTTLE ACTUATOR
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOW -
3976864 HOUSING, NYLON - THROTTLE ACTUATOR
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOWHOUSING, NYLON - THROTTLE ACTUATOR
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOW -
3766287 ROD, LINK - THROTTLE
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UPROD, LINK - THROTTLE
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UP -
3865914 CAM, NYLON - THROTTLE ACTUATOR
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UPCAM, NYLON - THROTTLE ACTUATOR
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UP -
3976864 HOUSING, NYLON - THROTTLE ACTUATOR
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UPHOUSING, NYLON - THROTTLE ACTUATOR
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UP -
4027947 SWIVEL, LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, LINK ROD TO THROTTLE CONTROL LEVER
-
4160572 BARREL, NYLON - THROTTLE LINK ROD TO ACTUATOR CAMBARREL, NYLON - THROTTLE LINK ROD TO ACTUATOR CAM
-
4210-37571 SCREW, HOUSING TO CRANKCASE (1/2")SCREW, HOUSING TO CRANKCASE (1/2")
-
4313-26996 LOCKWASHER, HOUSING TO CRANKCASE SCREWLOCKWASHER, HOUSING TO CRANKCASE SCREW
-
4460570 PLATE, RETAINER - ACTUATOR HOUSINGPLATE, RETAINER - ACTUATOR HOUSING
