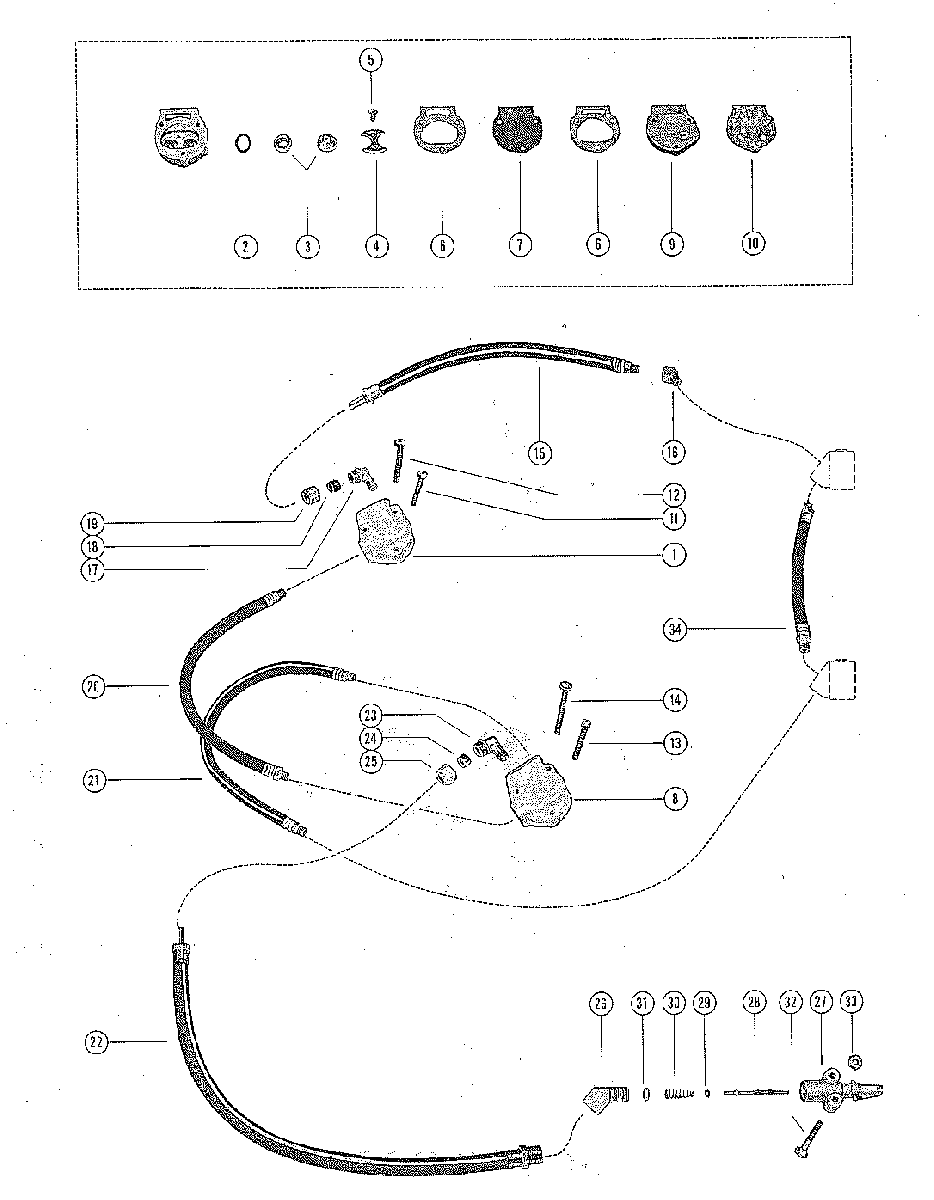

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 650 (4 CYL.) 1765044 THRU 2119748
-
№АртикулНазвание
-
130269A2 FUEL PUMP ASSEMBLY-UPPERFUEL PUMP ASSEMBLY-UPPER
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECK-FUEL PUMPVALVE, CHECK-FUEL PUMP
-
423004 RETAINER, CHUCK VALVERETAINER, CHUCK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM,FUEL PUMPDIAPHRAGM,FUEL PUMP
-
830461A2 FUEL PUMP ASSEMBLY-LOWERFUEL PUMP ASSEMBLY-LOWER
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECK-FUEL PUMPVALVE, CHECK-FUEL PUMP
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
930275 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1027-30276 GASKET,FUEL PUMP COVERGASKET,FUEL PUMP COVER
-
1110-29878 SCREW, PUMP MOUNTING (1 1/2")-UPPER PUMPSCREW, PUMP MOUNTING (1 1/2")-UPPER PUMP
-
1210-30274 SCREW,PUMP MOUNTING (1 3/4")-UPPER PUMPSCREW,PUMP MOUNTING (1 3/4")-UPPER PUMP
-
1310-73013 SCREW, PUMP MOUNTING (1 1/2")-LOWER PUMPSCREW, PUMP MOUNTING (1 1/2")-LOWER PUMP
-
1410-30273 SCREW, PUMP MOUNTING (1 7/8")-LOWER PUMPSCREW, PUMP MOUNTING (1 7/8")-LOWER PUMP
-
1532-33154A1 FUEL LINE ASSY, PUMP TO CARBURETOR (13 1/2")FUEL LINE ASSY, PUMP TO CARBURETOR (13 1/2")
-
1622-8M0123050 ELBOW (45 ),UPPER CARBURETORELBOW (45 ),UPPER CARBURETOR
-
1722-30174 ELBOW, UPPER FUEL PUMP OUTLETELBOW, UPPER FUEL PUMP OUTLET
-
1822-30175 SLEEVE, FUEL PUMP OUTLET ELBOWSLEEVE, FUEL PUMP OUTLET ELBOW
-
1922-30177 NUT, FUEL PUMP OUTLET ELBOWNUT, FUEL PUMP OUTLET ELBOW
-
2032-31552A1 FUEL LINE ASSY, PUMP TO PUMP (12 3/8")FUEL LINE ASSY, PUMP TO PUMP (12 3/8")
-
2132-31553A1 FUEL LINE ASSY, PUMP TO CARBURETOR (19 3/4")FUEL LINE ASSY, PUMP TO CARBURETOR (19 3/4")
-
2232-30176 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLETFUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET
-
2322-30174 ELBOW, LOWER FUEL PUMP INLETELBOW, LOWER FUEL PUMP INLET
-
2422-30175 SLEEVE, FUEL PUMP INLET ELBOWSLEEVE, FUEL PUMP INLET ELBOW
-
2522-30177 NUT, FUEL PUMP INLET ELBOWNUT, FUEL PUMP INLET ELBOW
-
2622-37682 ELBOW, FUEL LINE TO ADAPTORELBOW, FUEL LINE TO ADAPTOR
-
2730186 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2830185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2925-16524 "O"RING, ADAPTOR STEM"O"RING, ADAPTOR STEM
-
3024-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
3130188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3210-37561 SCREW, ADAPTOR TO BOTTOM COWLSCREW, ADAPTOR TO BOTTOM COWL
-
3311-20184 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
-
3432-31550A1 FUEL LINE ASSY, UPPER TO LOWER CARBURETOR (6")FUEL LINE ASSY, UPPER TO LOWER CARBURETOR (6")
