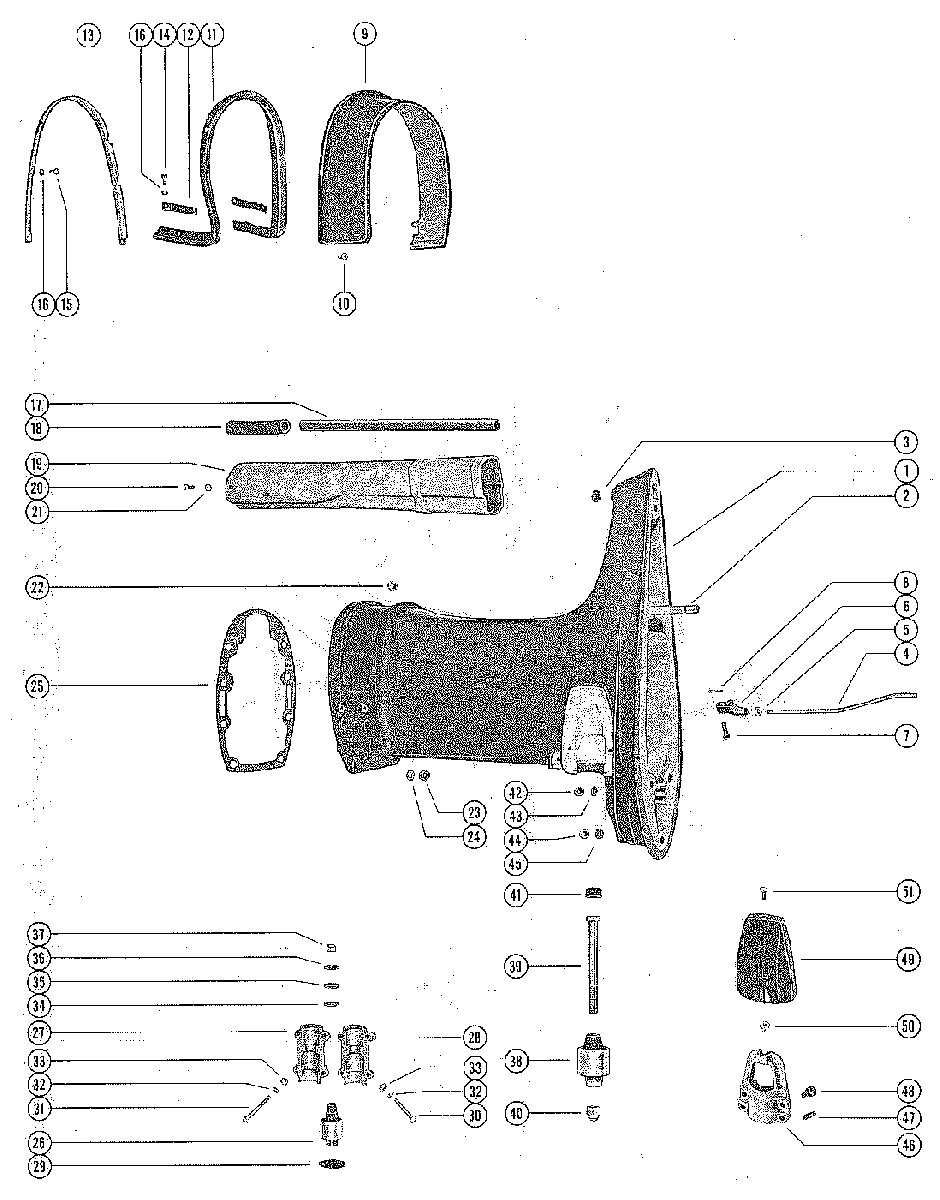

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 650 (4 CYL.) 2119749 THRU 2309310
-
№АртикулНазвание
-
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
-
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
319-32298 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
447591A1 ROD, PUSH - REVERSE LOCK(SHORT SHAFT)ROD, PUSH - REVERSE LOCK(SHORT SHAFT)
-
447558A2 ROD, PUSH - REVERSE LOCK(LONG SHAFT)ROD, PUSH - REVERSE LOCK(LONG SHAFT)
-
511-60049 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
639022 YOKE, PUSH RODYOKE, PUSH ROD
-
724-78203A2 PIN, PUSH ROD TO REVERSE LOCKPIN, PUSH ROD TO REVERSE LOCK
-
818-25191 COTTER PIN, PUSH ROD PINCOTTER PIN, PUSH ROD PIN
-
937417 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
1010-37571 SCREW, TRIM COVER TO BOTTOM COWLSCREW, TRIM COVER TO BOTTOM COWL
-
1137919 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
1237665 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
1338052 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
1410-38055 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
-
1510-37571 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
-
1612-30164 WASHER, RETAINING STRIP SCREWWASHER, RETAINING STRIP SCREW
-
1732-37446 TUBE, WATER INLET(SHORT SHAFT)TUBE, WATER INLET(SHORT SHAFT)
-
1732-37438 TUBE, WATER INLET(LONG SHAFT)TUBE, WATER INLET(LONG SHAFT)
-
1823-29591 SLEEVE, RUBBER - WATER INLET TUBESLEEVE, RUBBER - WATER INLET TUBE
-
1938469 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
1938470 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
2010-38601 SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATESCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE
-
2111-35888 NUT, EXHAUST TUBE SCREWNUT, EXHAUST TUBE SCREW
-
2211-23161 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
2311-8M0042636 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
2412-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
2527-38471 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
2637396 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2726218 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2826217 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
2924929 PACKING, "U" CUPPACKING, "U" CUP
-
3010-20012 SCREW, UPPER MOUNT COVER (1 5/8")SCREW, UPPER MOUNT COVER (1 5/8")
-
3110-28775 SCREW, UPPER MOUNT COVER (2 1/8")SCREW, UPPER MOUNT COVER (2 1/8")
-
3212-29245 WASHER, UPPER MOUNT COVER SCREWWASHER, UPPER MOUNT COVER SCREW
-
3311-35888 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
3412-30515 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3512-30516 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3612-30514 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3711-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3837397 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
3910-75284 SCREW, UPPER MOUNT (5 1/2")SCREW, UPPER MOUNT (5 1/2")
-
4011-25096 NUT, MOUNT SCREWNUT, MOUNT SCREW
-
4125067 BUMPER, RUBBER - MOUNTING SCREWBUMPER, RUBBER - MOUNTING SCREW
-
4211-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4312-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4411-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4512-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4635608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4724-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
4810-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSINGSCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
-
4935474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
5011-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
5110-29722 SCREW, COVER TO LOWER CLAMP MOUNTSCREW, COVER TO LOWER CLAMP MOUNT
